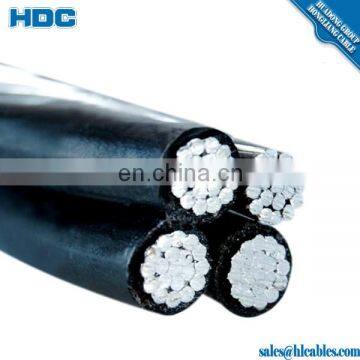

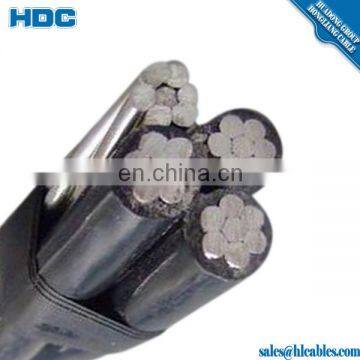

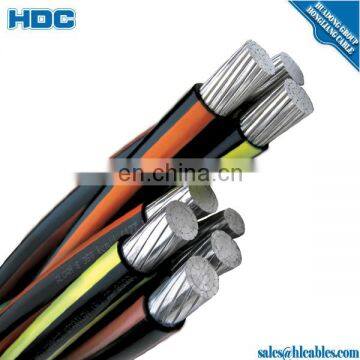

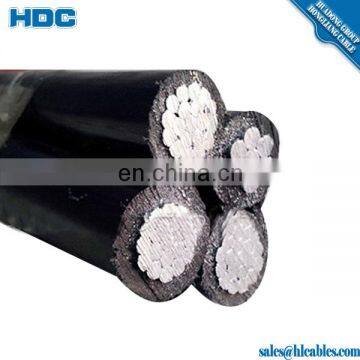

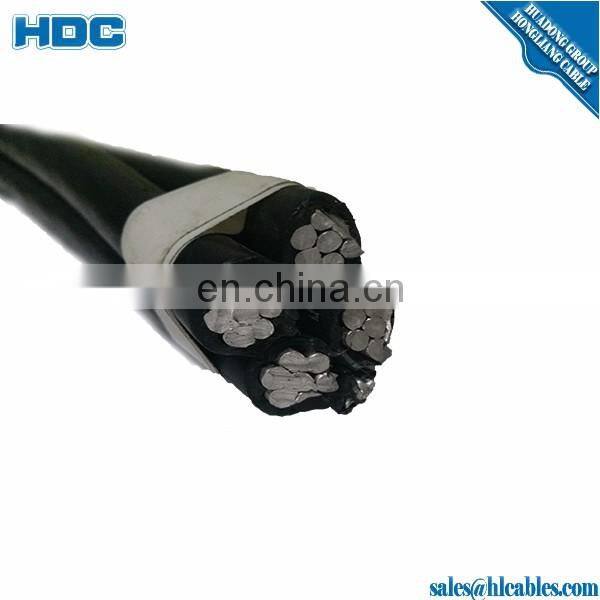

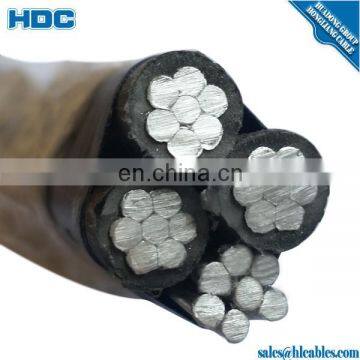

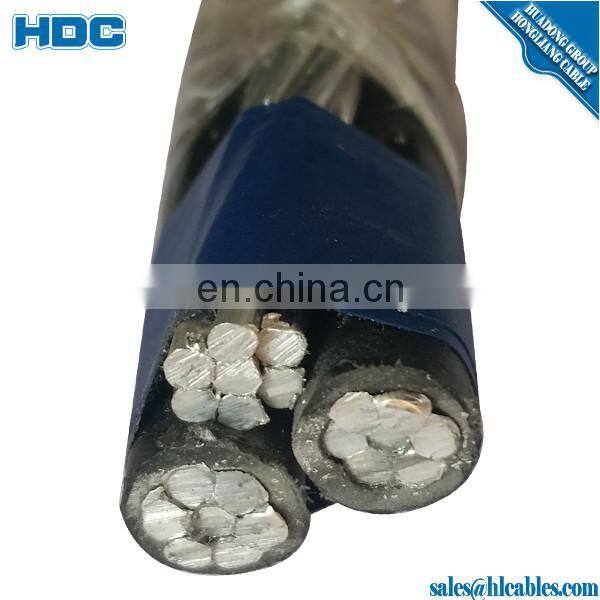

Item name: abc cable 3x70+1x50 70mm2 overhead low voltage twisted abc cable:
1,0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE/PVC.
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard: GB/T 14049-2008 IEC 60502.
7. Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C .
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9.Packing: Wooden Drum or according to the customer requirement.
10.Remark: The cable can be of flame retardant, fire resistance and other property.
Used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethy insulated or 90°C for crosslinked.
abc cable 3x70+1x50 70mm2 overhead low voltage twisted abc cable:
16 mm 2 * 2C | ( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 | |
16 mm 2 * 4C | 3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 | |
25 mm 2 * 2C | ( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 | |
25 mm 2 * 4C | 3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 | |
35 mm 2 * 2C | ( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 | |
35 mm 2 * 4C | 3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 | |
50 mm 2 * 2C | ( AL19/1.78+PE O.D.11.7) + AL19/1.78 | |
50 mm 2 * 4C | 3*(AL19/1.78+PE O.D.11.7) + AL19/1.78 | |
70 mm 2 * 2C | ( AL19/2.12+PE O.D.13.5) + AL19/2.12 | |
70 mm 2 * 4C | 3*(AL19/2.12+PE O.D.13.5) + AL19/2.12 | |
95 mm 2 * 2C | ( AL19/2.50+PE O.D.15.8) + AL19/2.50 | |
95 mm 2 * 4C | 3*(AL19/2.50+PE O.D.15.8) + AL19/2.50 | |
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
abc cable 3x70+1x50 70mm2 overhead low voltage twisted abc cable.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development, and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
abc cable 3x70+1x50 70mm2 overhead low voltage twisted abc cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
