SAND PS9016B-035-205-311-442 PID pressure gauges

· 5 Year warranty (First year is free to repair,other 4 year is chargeable)

· OEM service available (Products supplied without any logo,you could put your own logo on it)

· Technical support  (We are available to solve any problems you have on sensors and instruments any time)

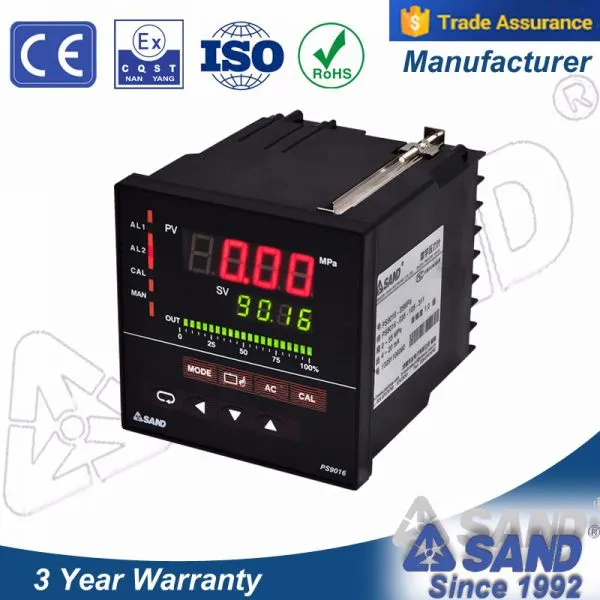

Pressure Controller Introduction

     PS9016 series programmable intelligent digital pressure controller is our company's latest brand new pressure instrument.  It is especially suitable for melt pressure measurement and control areas with its superior compatibility and cost performance. And it can be used with PT series melt pressure sensor / transmitter to support the high-temperature melt, fluid, and the accurate measurement of gas pressure perfect control widely in petrochemical, textile and chemical fiber, plastics, rubber, non-woven fabric, machinery and other equipment industries. It is with a full-featured, high reliability, stability, appearance, and strong anti-interference characteristics to ensure the long-term stability of the system work.

Pressure Controller Performance

1. Pressure range and decimal point location can be programmed;

2. Single PID pressure control signal output, providing multiple output signals (eg: 0~10V, 0~5V, 0~20mA, 4~20mA,), programmable;

3. Two alarm outputs, multiple alarm modes can be programmed;

4. Automatic calibration and panel error correction function;

5. Compatible with multiple pressure transducer and transmitter input signal;

6. Four digital displays with two layers and double colors and 20 segments electronic bar indicate the output power;

7. Provide RS485 computer communication interface (optional);

8. Triple combination of anti-jamming technology to ensure more accurate;

9. More than 20,000 hours of trouble-free operation;

10. with manual and automatic Switching feature to control output power.

Pressure Controller Technical Index

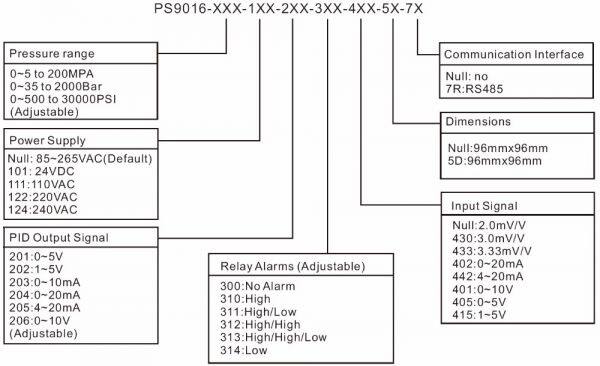

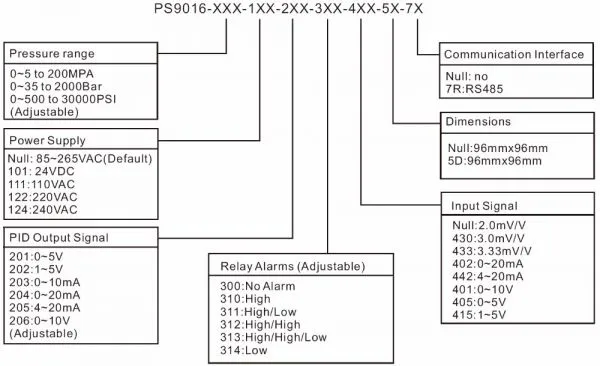

 Order Format

 Example1: PS9016-035-206-311

                     Product Model "PS9016",Programmable Intelligent Pressure controller.
                     Pressure Range Code "035",The pressure range is 0~35Mpa;
                     Output Signal Code "206", The factory setting PID output signal is 0 ~ 10V;
                     Alarm Code "311",The factory setting adopts 2-way relay top and bottom limitation alarm;
                     Vacancies and not marked function codes are the default values.

Example2: PS9016-050-124-205-311-433-5D-7R
                     Product Model "PS9016" ,Programmable Intelligent Pressure controller.
                     Pressure Range Code "050",The pressure range is 0~50MPa;
                     Power Code "124", The supply power is 24V DC;
                     Output Signal Code "205", The factory setting PID output signal 4~20mA;
                     Alarm Code "311",The factory setting adopts 2-way relay top and bottom limitation alarm;
                     Input Signal Code "433",It is mating for the transducer that has 3.33mV/V output;

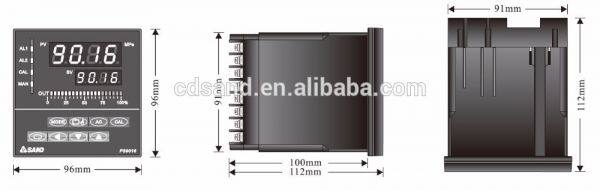

                     Shape Code "5D",The dimension is 96*96mm;
                     Communication Method Code "7R",It adopts RS485 communication interface.
