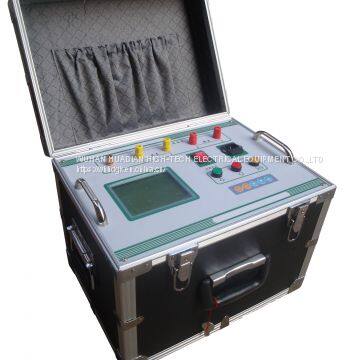

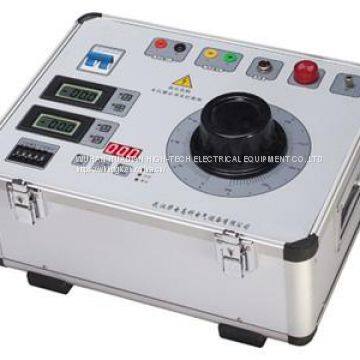

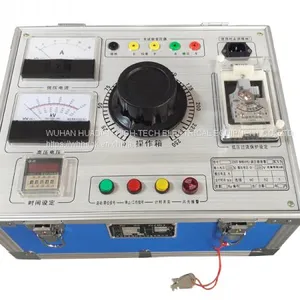

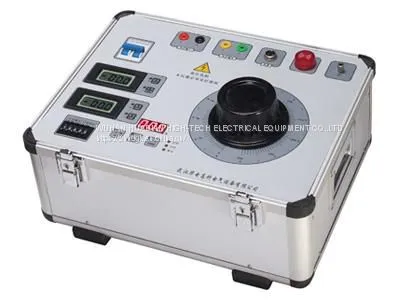

Manual/automatic Control Box For Test Transformer
Manual/Auto Controlling Box
Brief introduction
HCX series manual/auto controlling box is the manual/auto boost type of power frequency withstand controlling boxes of our company. It with a number of monitoring and protection functions, specially match with light type test transformer and also can be used as ajustable power supply.
Product features
◆Monitoring function: output current/high voltage/zero indication/power indication/working indication/timing indication.
◆Protection function:over current protection and zero voltage start-up
◆Using new time relay, timing range is wider.
◆Using new current relay, more accuracy, more reliable, to ensure the safty of personal and equipment.
◆Reasonable structure,small vollume, light weight.
◆Date、voltage、current and time are simutaneously showed as 160 LCD with blue background light, read clear and intuitive.
◆According to the user needs can be equipped with printing function and RS232 mirocomputer communication function. Easy to operate.
◆All Chinese language interface, showing working state and easy to operate, widely applied.
◆The panel is light touching the key operate, all functions can be set through the key, improving the safty and reliability.
◆Digital tuning, Abandoned the old potentiometer adjustment method, easy to use in field.
◆Through key to directly set current and voltage ratio, applicated freely undder different ratio outputing.
◆Can freely achieve AC and DC two type showing throngh single key.
◆Adopted the combinated anti-interference technology of hardware and software, use optimized control mode of stepping motor, Speed fixed-point, stable performance, strong anti-interference ability.
◆Stop condition can be set easily when start uo time relay, setting range: 1-9999second.
Product parameters
|
Specification HCX |
Capacity kVA |
Power Supply |
Output |
HZXC-101/102 |
Weight |
Measurement Error |
|||
Phase |
(V) |
(A) |
(V) |
(A) |
|||||
2/220 |
2 |
1 |
220 |
9 |
0-250 |
8 |
Manual/Auto |
14 |
|
3/220 |
3 |
1 |
220 |
14 |
0-250 |
12 |
Manual/Auto |
16 |
|
5/220 |
5 |
1 |
220 |
50 |
0-250 |
20 |
Manual/Auto |
18 |
|
Using a variety of control methods and insulation, according to the user's demand for free combination and configuration | |||||||||
