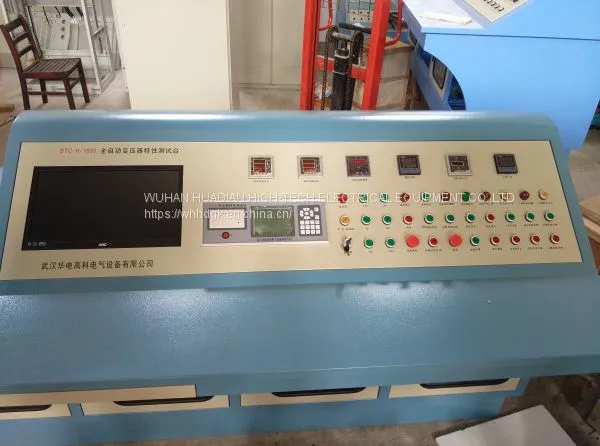

Integrated Transformer Test Bed
Brief introduction
BCT-H integrated transformer test bed conform to the state standard GB/T4776, GB/T5169, GB/4285. This product is mainly used for load and no-load power transformer, distribution transformer characteristics tests, also can do power frequency withstand voltage and double frequency inductance, partial discharge tests. The measuring parts of this device is controlled by high grade single clip microcomputer, no-load and load ect. test data are sampled by it, avoid the error caused by voltmeter, ammeter, watt meter seperately reading and manual caculation in traditional test methods.
Product features
◆Large screen backlight LCD display, operation and display are clear classified, easy to operate.
◆Can do DC resistance test, ratio group test, no-load loss test, on load loss test, AC withstand voltage test, inductance withstand voltage test of 50kva-100000kva power transformer.
◆Voltage, current digital display meter or pointer meter can be read directly, loss, ratio, DC resistance test results can be print and output.
◆Withstand voltage test overcurrent, alarm with sound and light, timing.
Product parameters
1. Measure and control no-load test, on-load test, power frequency test, double frequency test of 10kv, 35kv, 110kv, 220kv transformer.
2. Measure and monitor parts: input three phase voltage monitor meter(digital display), input current monitor meter(digital display), output voltage monitor meter(digital display), power frequency test voltage measuring meter(digital display), power frequency test current measuring meter(digital display), double frequency test voltage measuring meter(digital display), double frequency test current measuring meter(digital display).
3. Operation parts: switch function of test items, control of input and output voltage, control of load and no load test current shift, control of voltage regulator boosting and reduction.
4. Protection parts: load and no load test overcurrent protection, power frequency test overcurrent protection, double frequency test overcurrent protection.
5. Power supply mode: three phase four wires.
6. Current transformer parts: use 0.05level two same model current transformers which are multi-gear
7. High voltage transformer and intermediate frequency brushless generator external
