SMT Assembly Production Line/Automatic PCB Machine

Automatic SMT  PCB Assembly Production Line

Loader+printer+conveyor+pick and place+conveyor+reflow oven+ working table

1. workers:1-2(Operator1,AOI 1)

2. Actual Capacity:20000-22000pcs/hour(28000CPH FOR IPC9850)

3. Other information to check the catalogue

THE EXPANSION OF THE SOLUTION:

If it is necessary to increase production quantity, only need to increase the smt mounter, the other device does not need to increase, cost savings.

Features:

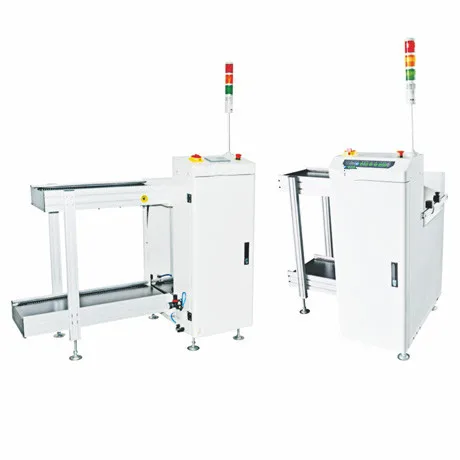

Automatic Loader and Unloader

1.PLC program control.

2.Aluminium structure, heavy bottom design to prevent shift.

3.Pass-through mode provided.

4.Only taken 10 seconds to change product line.

5.User friendly ‘soft touch‘ LED  control panel.

6.Uninterrupted Loading.

7.SMEMA compatible.

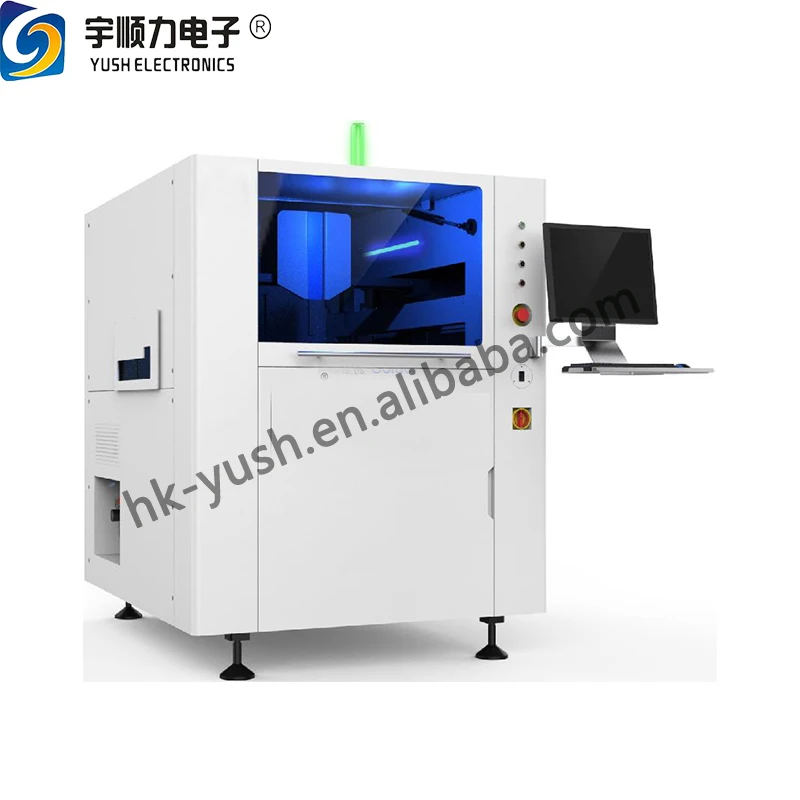

G5 Automatic Solder Paste Printer

1.  GKG special adjustment jacking platform

2.  Image and optical system

3.  Cleaning system

4. Scraper System

5. High adaptability steel mesh frame mounting system.

6. Perfect 2D Detection System

PCB Conveyor

1. Special circular are aluminum guide design, beauty and generous.

2. With thick sheet metal rack, sedate solid.

3. Using T screw to adjust the width smoothly

4. Adopt green anti-static belt.

5. Customize the length of the machine according to customer’s requirement.

6. Customize the quantity of stopping PCB boards according to customer’s requirement.

7. Customize the lighting equipment according to customer’s requirement.

8. Optional circuit board testing mode.

9. Standard SMEMA.

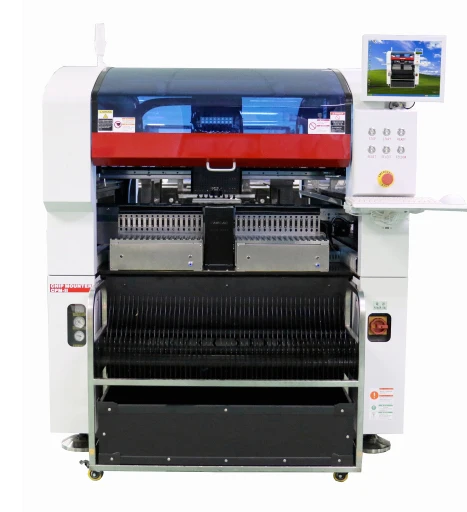

Pick and Place Machine

1.High-rigidity,High-accuracy and High-stability Base

2.High-speed, high-precision and long-life X/Y Axis

3. Advanced Self-researched Vibration Platform

4.High Precision Working Head

5.The Scanning Camera With Excellent Performance

6.Automatic Plastic-tape Cutting Blade

7.Multi-functional Board Conveyor

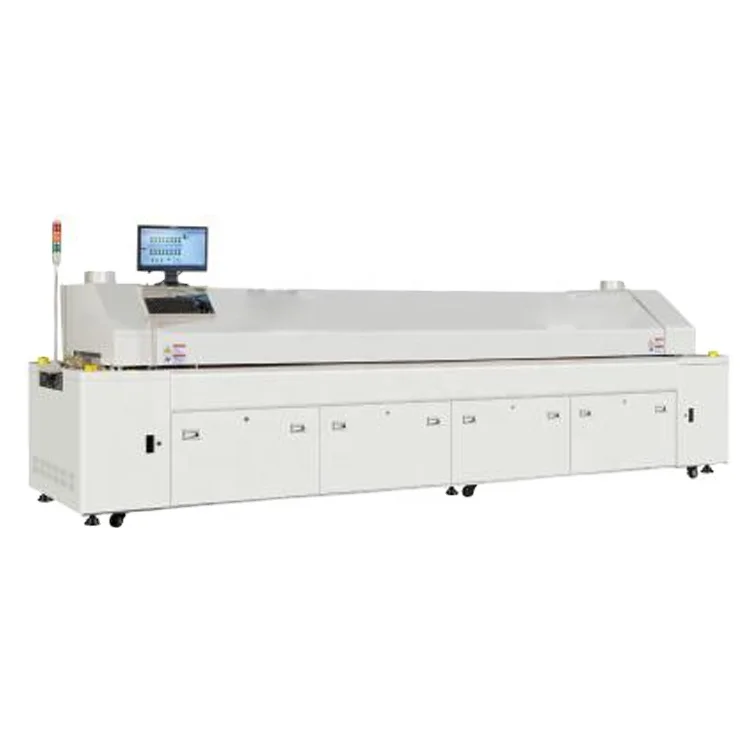

LY-6600 II Eight-zones Reflow Oven

1.Stable Conveyor System

2. Chain lubrication system is applied

3.Reliable Control System

4.The Heating System

5.The Cooling System

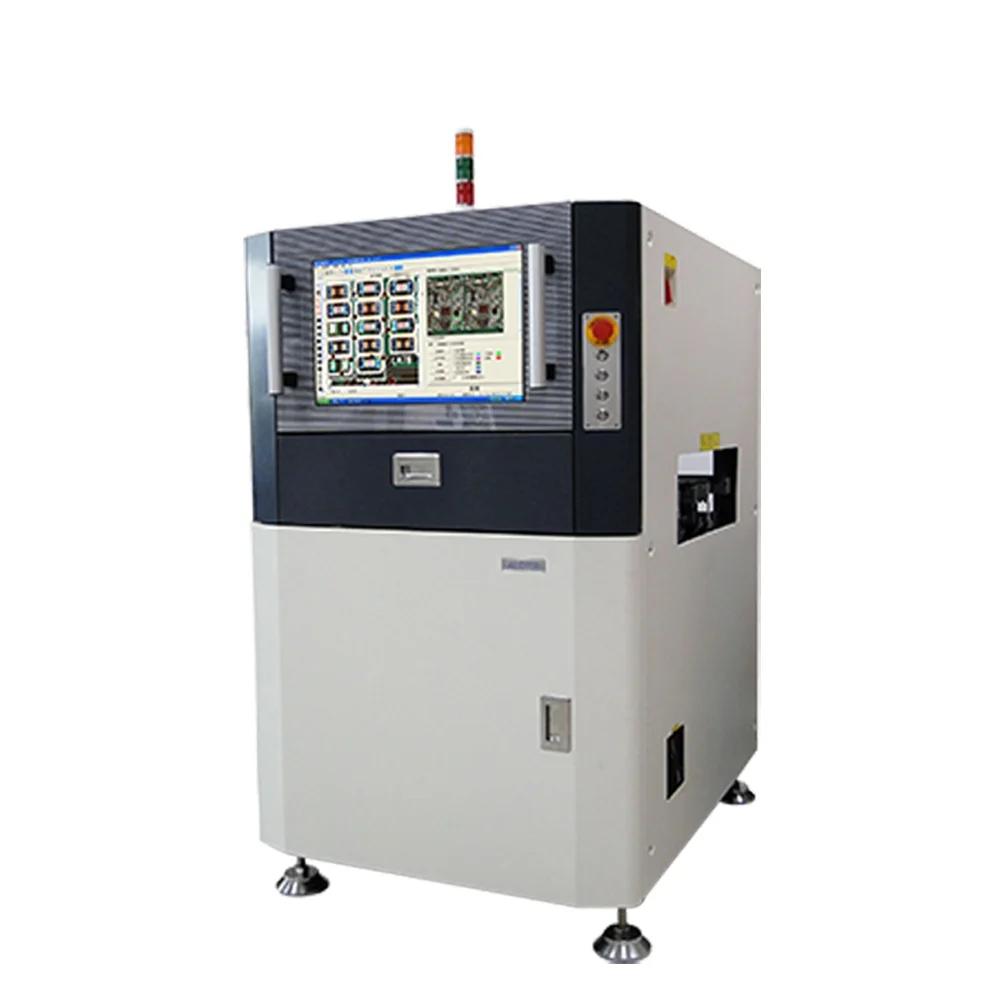

Multi-functional AOI Machine

1.The Z5 is the inland first AOI to inspect the component side of PTH technique

2.Multi-functional intelligent AOI with high resolution industrial camera system, capture quality defects at every moment

3.Intelligent color analysis technology

4.Intelligent solder ball inspection algorithm

5.One inspection box multi algorithm
