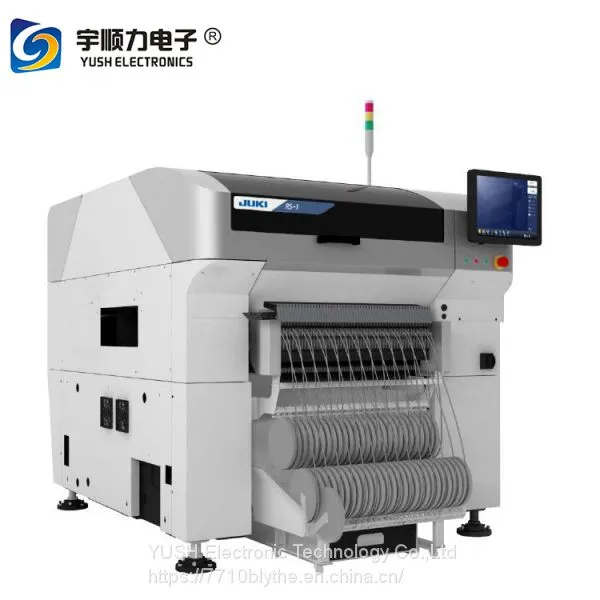

High speed pick and place machine/chip mounter/ chip shooter Juki RS-1
- 20 Set / Sets per Month
- shenzhen
- T/T L/C Credit Card PayPal Other
- 15 days
Product Details
Brand Name: | YUSH | Place of Origin: | China | Model Number: | Juki RS-1 |
After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Product Description
JUKI has launched its new High-speed SMT Pick and Place Machine,Equipped with a newly developed parallel 8 nozzle head, the JUKI SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 70%.
The JUKI Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle from six to eight, JUKI Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.

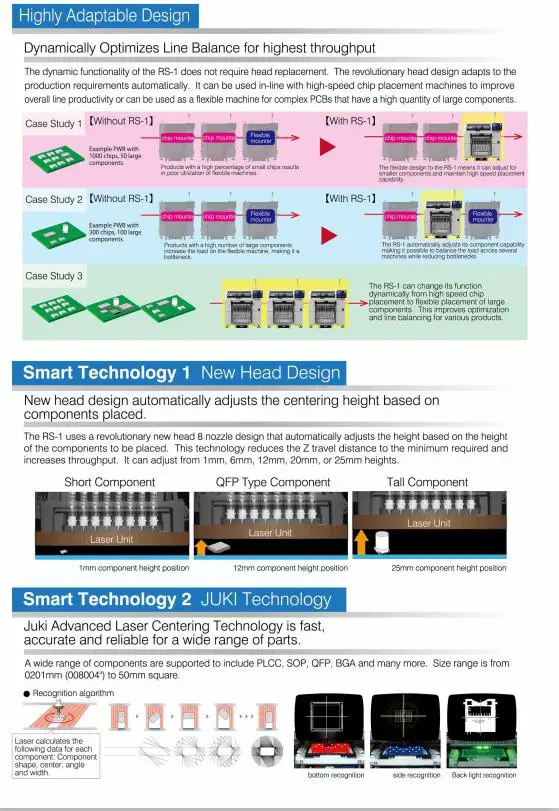

No head replacement, newly developed "Parallel 8 nozzle head" with auto-height component recognition sensor
Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.

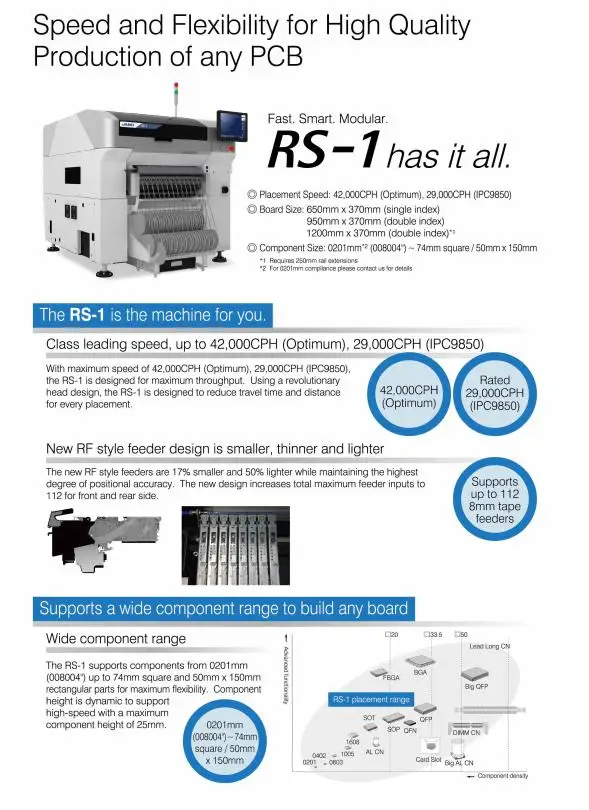

High placement capacity of 40,000 CPH
The distance between the pickup and placement positions is shortened by adopting the new SMT Pick and Place Machine RF series electric feeder.
Extensive component compatibility
Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the θ (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.
Implementation of smart mounting process

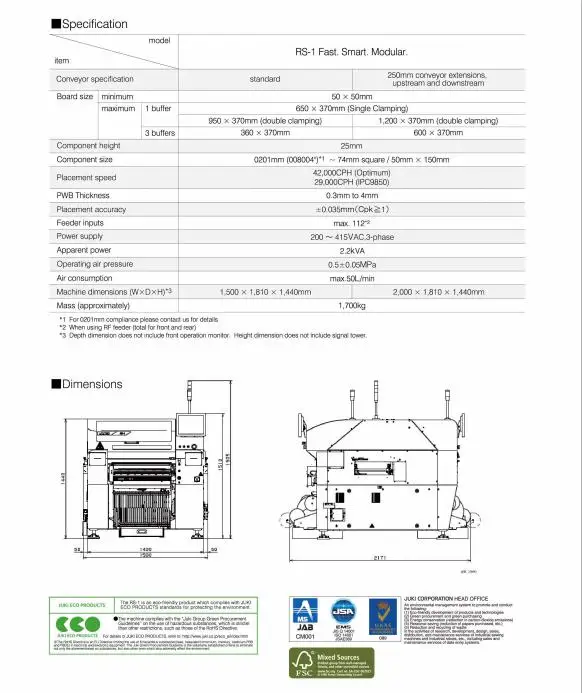

specifications:
Board size | 50x50mm~650x370mm(Single clamping) |
Component height | 25mm |
Component size | 0201-74mm/50x150mm |
Placement accuracy | Placement accuracy |
Feeder inputs | max.112(Using RF feeders) |
Placement speed | Optimum 42000CPH |
Conveyor specification | standard |
