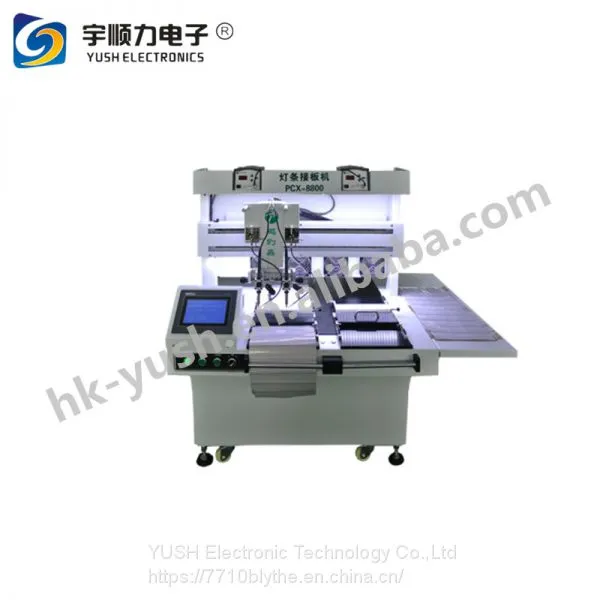

LED soft light strip soldering machine
Product Description:
LED strip welding,According to the characteristics of LED equipment 5 meters depth of humanization design,engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Features:
1.Simple programming, operation control box mobile head position.
2.Welding speed, high efficiency, a solder machine can save 5-6 people
3.Save tin wire, good consistency of solder joint
4. High power heating controller ensures the stability of continuous welding.The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating the welding torch spacing and synchronous operation
5. Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and repeatability accuracy
6. According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
7.Production efficiency: 1800-2000 metres /H.
8,It can replace the manual process and optimize the quality control.
9.Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Technical Parameters:
Item |
parameter |
Device name |
LED soldering machine for soft light strip plate |
Model |
PCX-800 |
control mode |
32position DSP |
Welding head |
2 iron heads work at the same time |
Working stroke |
X axis 350MM,Z axis 150MM,platform 1000MM |
Repeatability accuracy |
±0.05mm |
Equipment power |
600w |
Power Supply |
220V,50-60HZ |
weight |
100KG |
Size |
1600*1200*1400(L*W*H) |
Control system |
independent research and development |
Motor |
High precision motor |
Guide |
Taiwan PMI |
sensor |
Japan:OMRON |
Pneumatic components |
Air TAC |
Power Supply |
Meanwell |
|
Welding gun heating
mode |
High frequency custom welding table |
|
Drive mode |
Japan Misumi industrial belt |
Packaging & Delivery:
plywooden case
