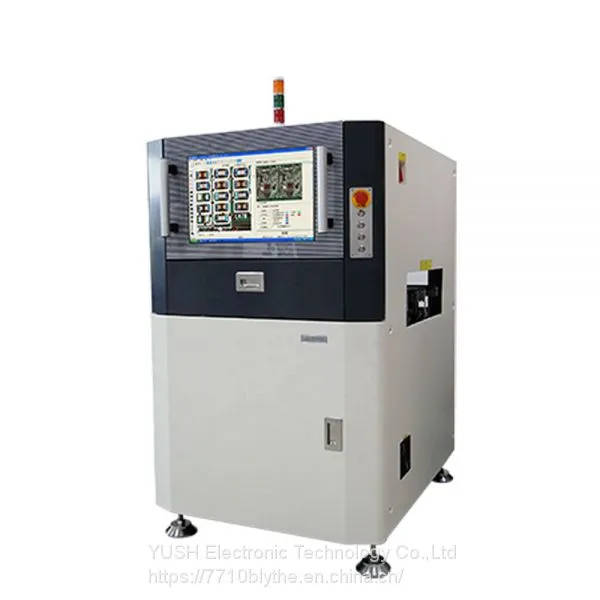

Help CenterOffline AOI Machine Used For Inspection Of Solder Paste Printing
Related Products
-
Lead Free Automatic Dual Wave Soldering Machine for PCBA Production LineUS$ 17000 - 23000MOQ: 1 Set -
50L PCB Cleaning Equipment Equipped With High Precision Tri - Filtering SystemUS$ 6800 - 13000MOQ: 1 Set
-
SMT PCB Magazine UloaderUS$ 3500 - 4500MOQ: 1 Set
-
High Efficiency SMT Production Line Automatic Inspection SMT PCB ConveyorUS$ 800 - 1000MOQ: 1 Set
-
SMT Machine/PCB/LED Automatic ConveyorUS$ 1000 - 4000MOQ: 1 Set
Specification:
INSPECTION |
using multiple algorithms synthetically such as WIDM, Color Image contrast technology, analysis, Solder ball inspection and Wave DIP analysis technology and so on. |
|
CAMERA |
Color CCD camera: 12um/15um/20um for option. |
|
LAMP-HOUSE |
3 Rings RGBB LED lamp-house, with special coaxial optical for option. |
|
IMAGE PROCESSING SPEED |
0201CHIP |
|
PER-IMAGE TIME |
||
PASTE PRINTIG DEFECTS |
Misaligned, overflow, insufficient, pasting open, stain |
|
COMPONENT DEFECTS |
Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged |
|
SOLDER DEFECTS |
Overflow, insufficient, short solder, stain,false solder |
|
WAVE SOLDERIN INSPECT |
Overflow, insufficient, short, Excess Solder, solder void |
|
ANTI STATIC MEASURES |
Anti static electric outlet, anti static wreath |
|
PCB SIZE |
Windows8.1-64-professional |
|
PCB THICKNESS |
OLP Off-line programming computer,RS Maintenance station computer,SPC Management tablet |
|
PCB WARP TOLERANCE |
0.3-10mm(buckling5mm) |
|
COMPONENT CLEARANCE |
Up 30mm,down 84mm(customized height) |
|
MINIMUM SPACE PARTS |
20um 0201 Chip 0.4Pitch IC |
|
X,Y PLATFORM & Z AXIS |
DRIVER |
AC server system |
ORIENTATION |
||
MOVING SPEED |
700mm/s |
|
Z AXIS(Only Z5X ) |
Height adjust between 50mm~90mm, safety distance 50mm Identifiable component height:1mm~50mm Adjust method:Automatically |
|
OPERATION SYSTEM |
Microsoft Windows XP Professional/Windows 7 |
|
CONTROLLING&RECOGNIZING |
CHARACTERISTICS |
WIDM, study OK template, automatically set template imaging, identify data and error numerical value. The camera and lamp can adjust height and focus to ensure the inspection precision. |
OPERATION |
Graphic programming, take along with chip library and get a inspection frame according with chip shape, aureate position, micron adjust, and easy programming |
|
MARK NUMBERS |
3 marks can be chosen |
|
RECOGNISING SPEED |
0.5s/pcs |
|
DISPLAY |
23 inch TFT |
|
MACHINE DIMENSIONS (L*W*H) |
870mm×1040mm×1300mm |
|
WEIGHT |
About 360kg |
|
POWER SUPPLY |
AC220V, 10%, single phase 5A 50/60HZ, power consumption 600W(Z5X 800W) |
|
