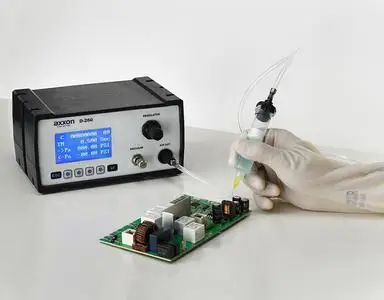

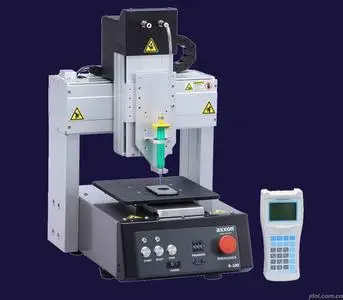

Automatic solder paste dispenser
Specifications :
Model :YSATM-3L1. For Silicone glue, UV glue, AB glue, etc
2..Holder and programs easy to amend
3.high quality, CE conformed
Suitable for:
Silicone glue, UV glue, AB glue, EPOXY(black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, etc.
Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.
Model |
YSATM-3L |
Power |
220/110 V |
Voltage |
250W |
Working area(X*Y*Z) |
300*300*60 mm Can be customized |
Speed |
Max. 500mm/sec |
Dispensing quantity |
Min. 0.001ml |
resolution |
0.01mm |
Repeatability |
+/-0.01mm |
Size(L*W*H) |
460*450*480 mm |
Weight |
70KG |
eatures
1. Full automatic robot with 3 or 4 axes.
2. Dispensing path can be set in the robot or imported from out computer.
3. Easy operation, the holder and program easy to amend.
4. Can store multiple independent running program.
5. High precision, the glue is well controlled.
6. Can configure multiple dispensing head.
7. Wide dispensing area which can set several products.
8. The working table can be customized on request.
Application
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Inductance industries: small transformers, SMD transformers, relays, small coil motors
3 Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen, etc.
7 Optics: optical lenses, optical head
8 Mechanical hardware, battery box, trademark, steam machinery spare parts
9 LED industries
