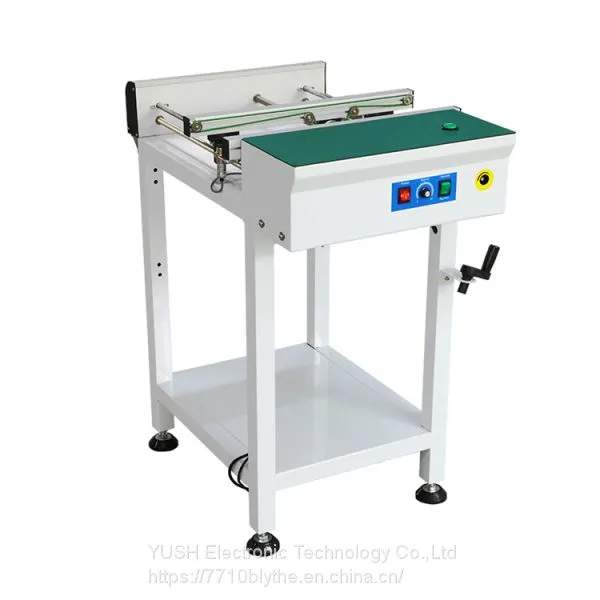

Help CenterHigh Efficiency SMT Production Line Automatic Inspection SMT PCB Conveyor
Related Products
-
SMT Machine/PCB/LED Automatic ConveyorUS$ 1000 - 4000MOQ: 1 Set -
SMT PCB Magazine LoaderUS$ 4500 - 5600MOQ: 1 Set
-
SMT PCB Magazine UloaderUS$ 3500 - 4500MOQ: 1 Set
-
Dry Cabinet For Laboratory Equipment StorageUS$ 3000 - 8000MOQ: 1 Set
-
FPC to PCB Board Pulse-Heated Soldering Machine/Welding Machine With Pulse HeatUS$ 6800 - 9800MOQ: 1 Set
Specification:
Description |
This unit is used for loading of PCBS . |
Time Feed PCB |
Second 6 Approx |
Magazine change over time |
Approx 30 Seconds |
Power Soure &Consumption |
100-230 VAC (Specify) .1ph , 300VA max |
Air pressure &Consumption |
4-6 bar . 10Ltr/min max |
Conveyor Height |
910±20mm (or specify) |
Conveyor Direction |
L –R / R-L (Option) |
PCB thickness |
0.4mm min |
No of magazine |
Upper conveyor ,1 magazine / Lower conveyor , magazine. |
Indexing Pitch |
1-4 (10mm pitch) |
Model Difference:
Model |
YS-3525 |
YS-4533 |
YS-539 |
YS-3546 |
|
Effective PCB size (L*W)~(L*W) |
(50*50)~(350*250) |
(50*50)~(455*330) |
(50*50)~(530*390) |
(50*50)~(530*460) |
Dimension (L*W*H) |
1000*800*1200 |
1210*880*1200 |
1360*940*1200 |
1360*1010*1200 |
Size of magazine (L*W*H) |
355*320*563 |
460*400*563 |
535*460*570 |
535*530*570 |
Weight |
Approx 125 kg |
Approx 165kg |
Approx 205kg |
Approx 245kg |
Features:
1.PLC program control.
2.Aluminium structure, heavy bottom design to prevent shift.
3.Pass-through mode provided.
4.Only taken 10 seconds to change product line.
5.User friendly ‘soft touch‘ LED control panel.
6.Uninterrupted Loading.
7.SMEMA compatible.
