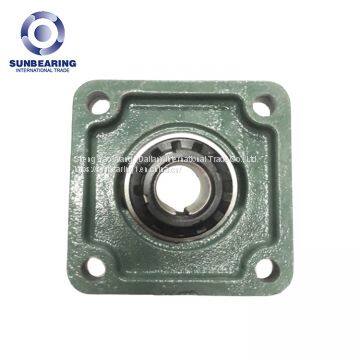

UCF208 Four Hole Flanged Bearing 40*130*51.2mm SUNBEARING
Product Name Pillow Block Bearing UCF208
Structure Pillow block Bearing Housing Type: Flanged Bearing
Bore Size 40 mm Ring Material: Chrome Steel
Width Radial Insert Bearing To The Slot e (mm): 130 mm Rolling Element Material: Chrome Steel
Width Radial Insert Bearing a (mm): 51.2 mm Cage Material: Sheet Steel
Designation, housing F208 Lubrication Type: Oil; Grease;
The Designation, Radial Insert Ball Bearing UC208 Housing Material: Cast Iron
Bolt Used M14 T min. -20 °C
A 36 mm T max. 100 °C
Product weight: 1,91 kg Number of Mount Holes 4
Material Cast iron housing, chrome steel bearing Mount Hole Size 16 mm
Dynamic Load Rating (Cr) 2560kgf Mount Hole Centre-to-Centre 102mm
Static Load Rating (Cor) 1810kgf B 49.2mm
Recommended Tightening Torque for Set Screw 11.5 Nm J 102 mm
UCF208 Bearing Features
These UCF208 bearing housings have square flanges that can be easily installed onto a machine with four bolts. These pillow block bearings are extensively used for various kinds of transmission equipment and machinery.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
Normal Duty Flange Bearing Unit Application
Four-Bolt Normal Duty Flange Bearings (a product within the Mounted Ball Bearing Unit or "Housed Bearing" family) are one of the most abundant bearing units in use. Flange bearings may be found in a variety of applications, including, but not limited to, agricultural, bakery, construction, forestry, marine and textile equipment.
Benefits using UCF208 Bearing Units
Flange Bearing Units are available in a wide variety of styles to suit various applications, with metric or imperial insert options. Their design enables moderate initial misalignment to be accommodated.
Four-Bolt UCF208 Bearing - RS
RS Four-Bolt Medium Duty Cast Iron Flange Bearings are available in a number of sizes to suit a variety of applications. Flange Bearings are used in many industries, and may be found in use within machinery as diverse as packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry equipment and marine applications.
