Help CenterUCTH207-230 Bearing Unit With Frame SUNBEARING
Related Products
-
Factory Pillow Block Bearing UCFL206 With Rubber SealsNegotiableMOQ: 1 Millimeter -
SN309 Plummer Block Bearing Housing Without Bearing UnitNegotiableMOQ: 1 Millimeter
-
Plummer Block Bearing Pressed Steel Bearing Housing SN516NegotiableMOQ: 1 Millimeter
-
UCP307 Bearing Holder Pillow Block BearingNegotiableMOQ: 1 Millimeter
-
30mm Bore UC Pillow Block Bearing Housing Bearing UCPA206NegotiableMOQ: 1 Millimeter
| Product Name | UCTH207-230 Bearing Unit with Frame | ||
| Structure | Bearing Unit with Frame | Locking Device | Set Screw |
| Bore Diameter | 33,3375 mm | Rolling Element Material | Bearing Steel |
| Width | 107 mm | Mounting Bolt Model | M10 |
| A0 | 57,4 mm | Diameter Series Symbol | Used for Light load |
| Bearing Unit, Type | Take-up type | Fit | J7 |
| The Designation, Radial Insert Ball Bearing | UC207 | B | 42,9 mm |
| Sealing solution | Standard seals with additional flingers | H | 213 mm |
| A | 50 mm | J | 173 mm |
| Product weight: | 10.5 kg | L | 430 mm |
| Housing Material | Cast Iron | L1 | 500 mm |
| Dynamic Load Rating (Cr) | 3 kN | N | 17,5 mm |
| Static Load Rating (Cor) | 15,4 kN | T | 219 mm |
| Bearing Inner Dia. Shape | Cylindrical Bore Set Screw Type | A2 | 32 mm |

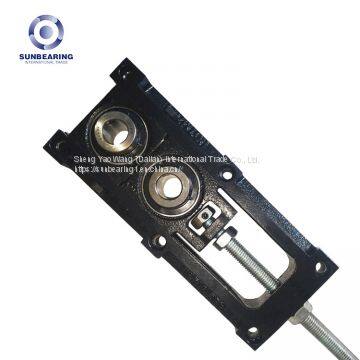

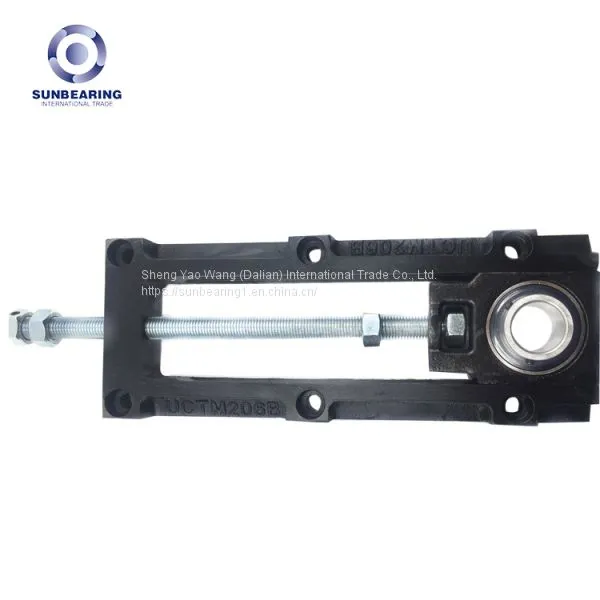

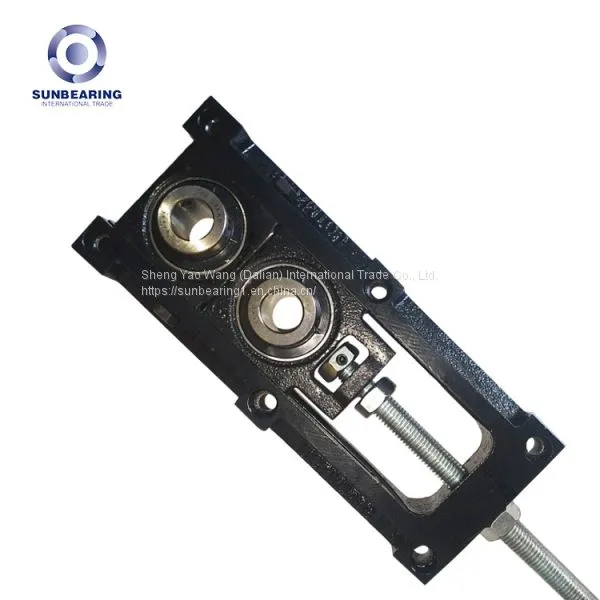

UCTH207 bearing is a unit product that combines a take-up unit, a frame made from steel, and adjusting bolts.
The support position at the center of the shaft can be adjusted by moving the bearing housing in the radial direction using the adjustment bolt attached to the unit.
The frame is attached to the machine body with six bolts.
Take-Up Frames are utilized on conveyor systems to prevent belt slippage by allowing the operator adjustability in keeping proper belt tension on the drive pulley. Take-Up Frames offer different levels of adjustability, maintenance, and mounting configuration. For side-mount styles such as Wide Slot and Narrow Slot. Steel frame covers that are powder coated safety yellow to identify and protect moving components.
Take-Up Frames are fabricated from steel and are powder coated graphite grey for durability.
Available in Narrow Slot, Wide Slot, Center Pull, Top Angle, Light & Heavy Duty Protected Screw, and Telescoping.
Accommodate shaft sizes from 1/2″ to 5″
Available in standard travel lengths from 1-1/2″ through 60″
Available in carbon steel and stainless steel
ACME Threaded Rod is optional
Take-up bearings are in stock and readily available
