Home > Products > pillow block bearing > UCF213 4 Bolts Flange Bearing 65*187*69.7mm Cast Iron SUNBEARING

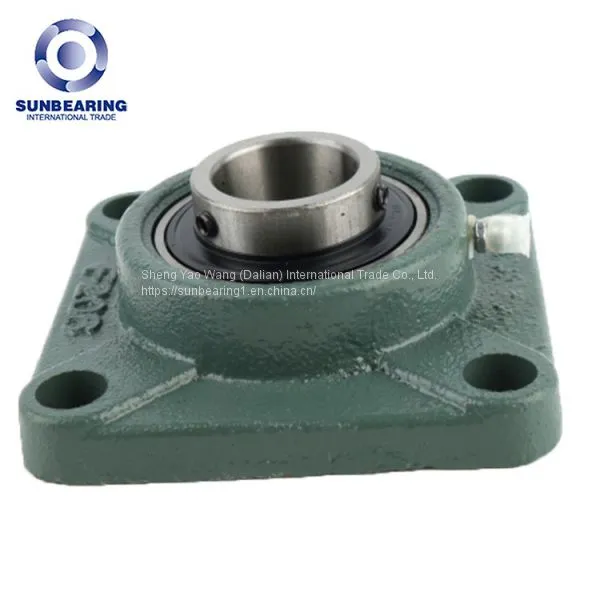

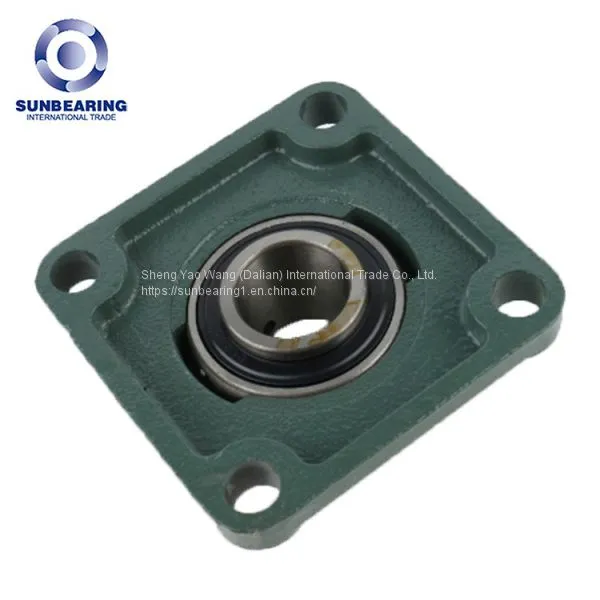

UCF213 4 Bolts Flange Bearing 65*187*69.7mm Cast Iron SUNBEARING
- Dalian
- T/T L/C
- 14 days
You May Like
-
UCP206 2 Bolts Metric Pillow Block Bearing 30mm Cast Iron SUNBEARING
-
UCP208 40mm Pillow Block Housing Unit Bearing Cast Iron SUNBEARING
-
SUCF206 4 Bolts Stainless Steel Flange Bearing With Insert Ball Bearing SUNBEARING
-
22213-EK Spherical Roller Bearing With Tapered Bore 65*120*31mm SUNBEARING
-
UCFL204 2 Bolts Flange Housed Bearing Unit 20mm SUNBEARING
-
UCFL206 2 Hole Flange Bearing Unit 30mm ID SUNBEARING
Product Details
| Brand Name | SUNBEARING | Place of Origin | China | |
| Model Number | UCF213 | Bore Size | , |
Product Description
| Product Name | Pillow Block Bearing UCF213 | ||
| Structure | Pillow block Bearing | Limiting speed Bearing with shaft tolerance h6 | 2350 r/min |
| Bore Size | 65 mm | Housing material | Cast iron |
| Width Radial Insert Bearing To The Slot e (mm): | 187 mm | Set screw | M10x1 |
| Width Radial Insert Bearing a (mm): | 69.7 mm | Hexagonal key size for set screw | 5 mm |
| Designation, housing | F213 | Recommended tightening torque for set screw | 16.5 N·m |
| The Designation, Radial Insert Ball Bearing | UC213 | Recommended diameter for attachment bolts, mm | 16 mm |
| Bearing Type | Extended inner race with set screws | Recommended diameter for attachment bolts, inch | 0.625 in |
| A | 50 mm | T min. | -20 °C |
| Product weight: | 5.35 kg | T max. | 100 °C |
| Material | Cast iron housing, chrome steel bearing | s1 | 32.55 mm |
| Dynamic Load Rating (Cr) | 57.2 kN | S | 25.4 mm |
| Static Load Rating (Cor) | 40 kN | RG | 19.700 mm |
| Fatigue load limit | 1.7 kN | R1 | 34.5 mm |
UCF213 Bearing FeaturesUCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, re-lubricate, replaceable insert, grub screw fixing
Pillow block bearing consists of an outer spherical ball bearing with seals on both sides and a cast (or stamped steel plate) bearing seat.
The internal structure of a seated outer spherical ball bearing is the same as that of a deep groove ball bearing, but the inner ring of this type of bearing is wider than the outer ring. The outer ring has a truncated spherical outer surface, which can automatically adjust the center when matched with the concave spherical surface of the bearing seat. Usually, there is a gap between the inner hole of this kind of bearing and the shaft, and the inner ring of the bearing is fixed on the shaft with a jack wire, an eccentric sleeve, or an adapter sleeve, and rotates with the shaft.
The bearing with seat has compact structure, convenient installation, and unloading, perfect sealing, suitable for simple support, and is often used in mining, metallurgy, agriculture, chemical industry, textile, printing, and dyeing, conveying machinery, etc.
