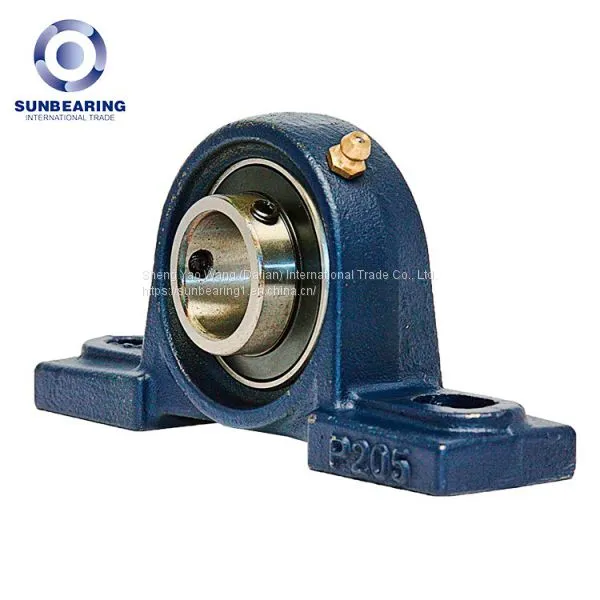

Help CenterUCP205 Metric 2 Bolts Pillow Block Bearing 25*140*71mm SUNBEARING
Related Products
-
UCF213 4 Bolts Flange Bearing 65*187*69.7mm Cast Iron SUNBEARINGUS$ 7.57 - 15MOQ: 1 Piece -
UCP206 2 Bolts Metric Pillow Block Bearing 30mm Cast Iron SUNBEARINGUS$ 2.71 - 5MOQ: 1 Piece
-
UCP208 40mm Pillow Block Housing Unit Bearing Cast Iron SUNBEARINGUS$ 22.02 - 30MOQ: 1 Piece
-
SUCF206 4 Bolts Stainless Steel Flange Bearing With Insert Ball Bearing SUNBEARINGUS$ 8.43 - 10MOQ: 1 Piece
-
UCFL204 2 Bolts Flange Housed Bearing Unit 20mm SUNBEARINGUS$ 1.8 - 5MOQ: 1 Piece
| Product Name | Pillow Block Bearing UCP205 | ||
| Structure | Pillow block Bearing | Limiting speed Bearing with shaft tolerance h6 | 5850 r/min |
| Bore Size | 25 mm | Housing material | Cast iron |
| Width Radial Insert Bearing To The Slot e (mm): | 140 mm | Sealing solution | Standard seals with additional flingers |
| Width Radial Insert Bearing a (mm): | 71 mm | Set screw | M6x0.75 |
| Designation, housing | P205 | The hexagonal key size for the set screw | 3 mm |
| The Designation, Radial Insert Ball Bearing | UC205 | Recommended tightening torque for the set screw | 4 N·m |
| Bearing Type | Extended inner race with set screws | Housing Base Thickness (g) | 13.000 mm |
| A | 38 mm | Housing Height (w) | 71.000 mm |
| Product weight: | 0,79 kg | Number of Mount Holes | 2 |
| Material | Cast iron housing, chrome steel bearing | Mounting Slot Length (S2) | 19.000 mm |
| Dynamic Load Rating (Cr) | 14,022 N | Mounting Slot Width (S1) | 13.000 mm |
| Static Load Rating (Cor) | 7,843 N | Bearing Inner Race Width - Extended Side (m) | 19.700 mm |
| Fatigue load limit | 0.335 kN | Mounting Bolt Size | 102 mm |
The UCP205 bearing with seat is a high-precision component product that is a combination of grease-sealed deep groove ball bearings and bearing seats of various shapes. The bearing assembly can be directly installed on the main body of the mechanical device with a few bolts. It has a centering function and can be used to replenish grease. It is a product that is very easy to install and use.
Two-Bolt Cast Iron Pillow Blocks are cost-effective bearing solutions where ease of maintenance is of primary importance. They are ideal, for example, for use within agricultural equipment, and similar applications.
RS Two-Bolt Medium Cast Iron Pillow Blocks (sometimes known as "Plummer Blocks" in certain environments/locations) are pedestal-mounted bearing housings and available in a number of sizes to suit a variety of applications, including packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry and marine equipment.
Pillow Blocks are often suited to support rotating shaft applications, with generally lower loading conditions than Plummer Blocks offer.
