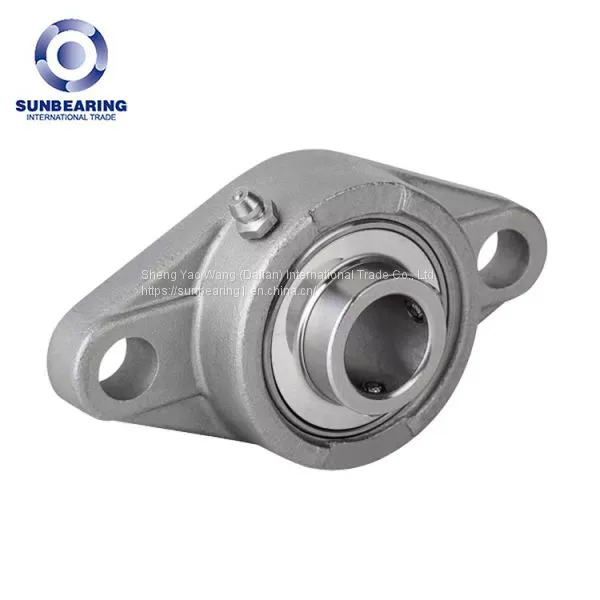

Help CenterUCFL204 2 Bolts Flange Housed Bearing Unit 20mm SUNBEARING
Related Products
-
UCFL206 2 Hole Flange Bearing Unit 30mm ID SUNBEARINGUS$ 2.71 - 5MOQ: 1 Piece -
UCTH207-230 Bearing Unit With Frame SUNBEARINGUS$ 12.5 - 15MOQ: 1 Piece
-
Factory Pillow Block Bearing UCFL206 With Rubber SealsNegotiableMOQ: 1 Millimeter
-
SN309 Plummer Block Bearing Housing Without Bearing UnitNegotiableMOQ: 1 Millimeter
-
Plummer Block Bearing Pressed Steel Bearing Housing SN516NegotiableMOQ: 1 Millimeter
| Product Name | Pillow Block Bearing UCFL204 | ||
| Structure | Pillow block Bearing | Locking Device | Set Screw |
| d | 20 mm | Seal Type | Contact |
| H | 113 mm | Set screw | M6x0.75 |
| U | 33.3 mm | Hexagonal key size for set screw | 3 mm |
| Designation, housing | FL206 | Recommended tightening torque for set screw | 5.5 Nm |
| The Designation, Radial Insert Ball Bearing | UC206 | End Type | Open |
| Sealing solution | Standard seals with additional flingers | Performance | Light Duty |
| A | 25.5 mm | Operating Temperature Range |
-40 to 250 ºF -40 to 120 ºC |
| Product weight: | 0.44 kg | Rotational Speed [Max] | 6700 RPM |
| Housing Material | Cast Iron | Mounting Hole Center-to-Center (e) | 15 mm |
| Dynamic Load Rating (Cr) | 12.7 kN | S | 12.7 mm |
| Static Load Rating (Cor) | 6.55 kN | Mounting Slot Width (S1) | 18.3 mm |
| Lubrication | Non-Relubricatable | N | 12 mm |
UCFL204 bearing will cope with initial misalignment, are sealed and pre-greased, have integral shaft locking, and simply bolt into place.
The internal structure of the insert ball bearing is the same as that of the deep groove ball bearing. But the inner race of this bearing is wider than the outer race. The outer race has a spherical surface. Insert ball bearings can self-aligning with the fit between the outer race and the bearing block. Insert ball bearings are compact. It’s easy for loading and unloading. Spherical insert ball bearings often used in mining, metallurgy, textile, transportation machinery, etc.
Pillow Block Bearing UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricative, replaceable insert, grub screw fixing
