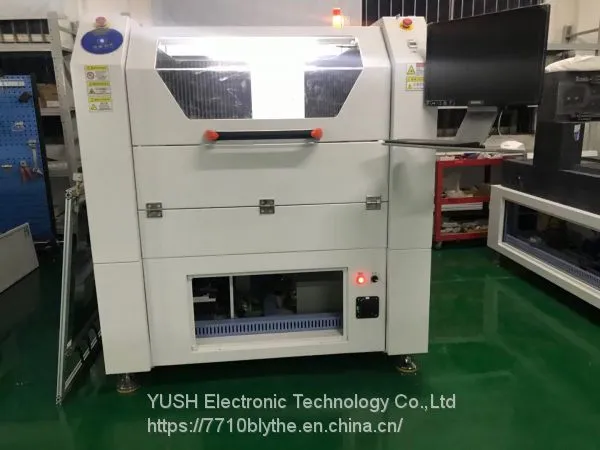

Help Center50W Fiber Laser Metal Sheet Stencil Cutting Machine
Related Products
-
SMT Assembly Production Line/Automatic PCB MachineUS$ 300000 - 700000MOQ: 1 Set -
SMT Automatic Solder Paste Printer/electronic Product MachineryUS$ 17000 - 18000MOQ: 1 Set
-
High Speed Pick and Place Machine/chip Mounter/ Chip Shooter Juki RS-1US$ 200000 - 300000MOQ: 1 Set
-
Top Lead-Free Hot Air Reflow OvenUS$ 23000 - 28000MOQ: 1 Set
-
Offline AOI Machine Used For Inspection Of Solder Paste PrintingUS$ 9800 - 13000MOQ: 1 Set
1.Unique waste collection structure
Based on the new structure design, YS-SL6060 uses innovative waste and smoke collection system, which completely frees customers from "equipment stabilization killers" such as chips, slag, iron dust and so on. It greatly improves the service life and stability of the equipment.
2.High Power Fiber Laser
YS-SL6060 is a semiconductor-pumped solid-state high-power fiber laser with advanced technology. Increasing the cutting efficiency also greatly increases the types of Machinable products. It is easy to deal with both ordinary metal sheets and precise parts with a certain thickness.
3.Provide users with specialized process solutions
Professional fixture design, can adapt to a variety of sizes, shapes of materials, so that every minute of production belongs to laser cutting. This is not only a device, but also a set of equipment process system that can optimize the user's process and give full play to the maximum value of the equipment.
| Platform positioning accuracy |
±3μm |
| Platform Repeatability | ±1.5μm |
| Platform velocity | ≤300mm/S |
| Location detection sub variability |
0.1μm |
| Cutting range | X 600mm * Y 600MM |
| Table size | X 620mm * Y 620MM |
| Cutting thickness | ≤0.5mm (reference value) |
| Focus diameter | 25-30μm |
|
Best Cutting Effectiveness |
Up to 9400 Synthetic Aperture / hr, 13000-14000 standard aperture / hour (with a diameter of 0.3mm standard round date). Scope is 0.15mm less steel). |
| Laser light source Specifications | |
| Laser Power | 50W |
| Wavelength | 1070 mm |
| Laser Weight | About 20KG |
| Beam delivery system | |
| Dust-proof | Dust Cover |
| Control and drive systems | |
| Control | PC-BASE CNC AC Servo Control |
| Drive | Linear motor drive |
| Guide | Precision linear guide rails |
| Others | |
| CCD module | CCD fill holes focus, coaxial CCD light function. |
| Dust | Collect waste and zero-emission. |
| Blowing | Coaxial blow assist gas. |
| Fixture | Pneumatic clamping |
