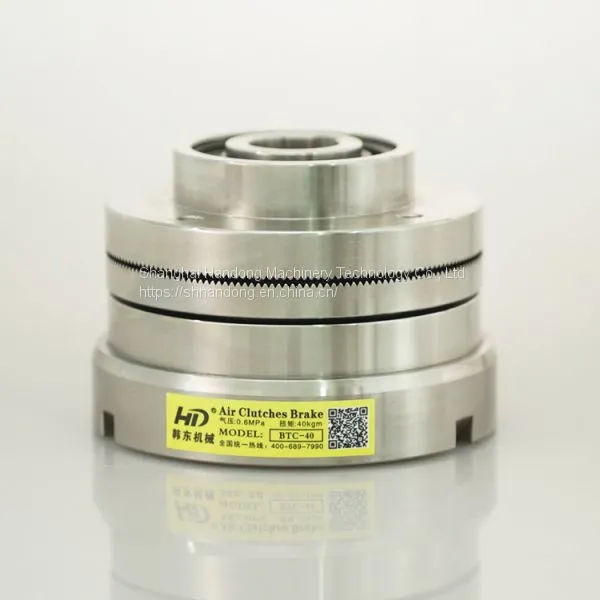

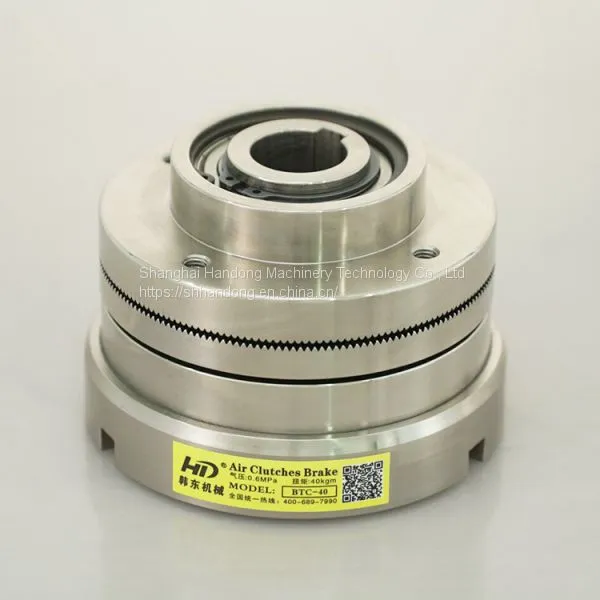

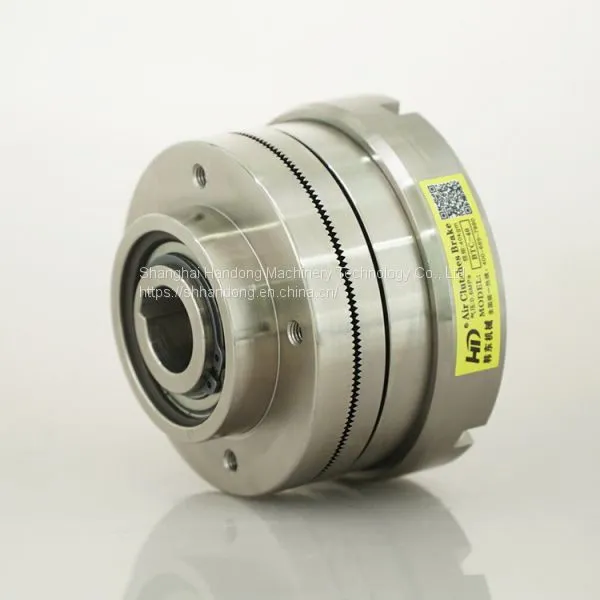

BTC-20 pneumatic tooth and tooth clutch Made in China
BTC pneumatic tooth clutch is like a connector, it transmits motor power from motor part to driven load part directly. This air shaft clutch is widely applied is mechanical hand, manipulator, automatic production line and etc. In this situation, BTC is worked as a clutch for power linking.
Handong company is a professional manufacturer with full experience for clutch and brake make, each product made with superior quality and competitive price. This BTC clutch is very special, it can be used for a clutch or brake as working situation needed.
BTC pneumatic tooth clutch is driven by air pressure, inputing air pressure, clutch linked; after exhausting air pressure, clutch released. Tooth and tooth plates structure can delivery high torque for usage. Tooth and tooth plates connect speed is not fast, while it can be rotated fastly for working.
Compared with electromagnetic clutch, this pneumatic tooth clutch will not reduce torque and produce spark for over heat,to ensure heavy workload finished. With torque control range, it is most suitable work as a tension controller. Controlled by air pressure, soft start and stop. Through clutch opetation, adjustment, stable engagement, so as to make full braking performance. Simple structure, easy maintenance and long service life.
There are some models of this pneumatic tooth clutch. Following are the structure and technical data of this pneumatic tooth clutch for joint:
BTC clutch has many models, like BTC-10, BTC-20, BTC-40, BTC-60, BTC-80, BTC-120, BTC-200, BTC-300, BTC-400, BTC-800, BTC-1200, BTC-1600 and etc.This air driven tooth clutch is a type of air shaft clutch, different model, its bore diameter is different, too. From above technical data, we can see that BTC pneumatic clutch bore diameter is 20-120mm. It is with compact size, while transmit high torque, its max torque can be reached to 16000N.m.
BTC clutch is tooth and tooth connecting, so it is only suitable for slow speed or standstill linking, its connecting speed is 20-100r/min. After connecting, tooth clutch can be rotated fastly, max speed reached to 2300r/min. As we know, BTC clutch is tooth and tooth connect, the model larger, its tooth quantity is more, so its torque is higher, too. For example, BTC-20 pneumatic clutch tooth quantity is 180 pieces, max torque is 200N.m; BTC-80 clutch tooth quantity is 240 pieces, its max torque is 800N.m.
This BTC pneumatic tooth clutch is widely used in tire forming machine, convey machine, automatic equipment, food machinery, medical machinery, printing machinery,packaging machinery, corrugated machinery, electrical machinery, lead wire equipment, textile machinery, rubber machinery, tire machinery, automatic production line, paper making machinery, construction machinery, plywood machinery, punching machine, die-cutting machinery, crusher and etc. It also applied in robot, mechanical arm and other high technology industry.

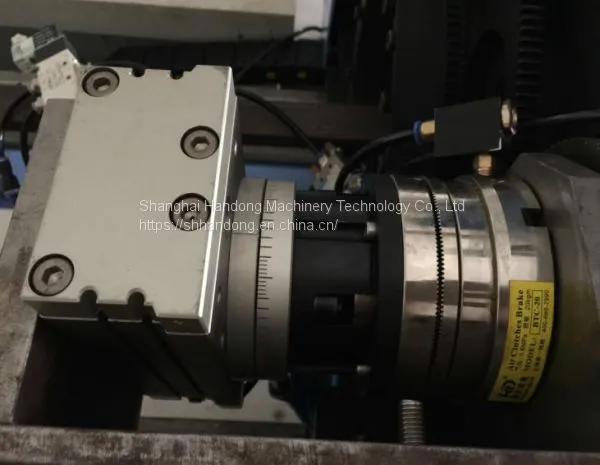

In this case, BTC-20 pneumatic tooth clutch is used in automatic indexing plate equipment for inspection, it is shaft and shaft mounted. Motor power deliveried from flange plate to clutch. After inputting air source, clutch linked, so as to transmit power to another driven load end. As this tooth clutch has many tooth, it can be connected in exactly, so it can be applied in high precision requirement situation.
BTC pneumatic tooth clutch takes air pressure as power source, it is economic and can protect environment very well. Through adjust air pressure volume to regulate clutch's torque easily.
