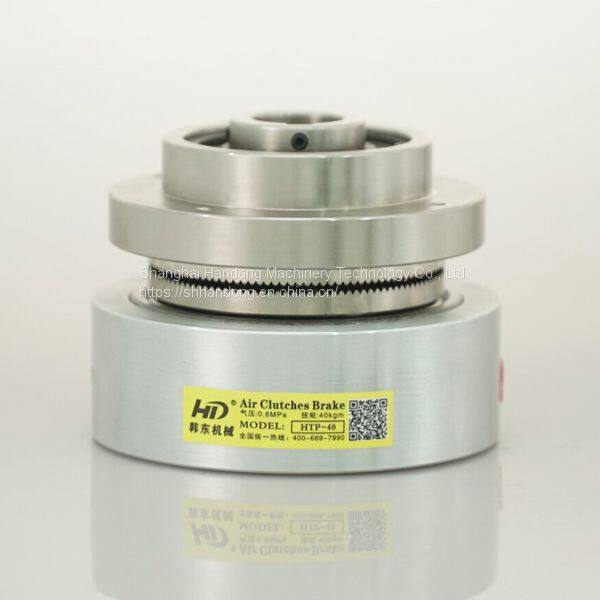

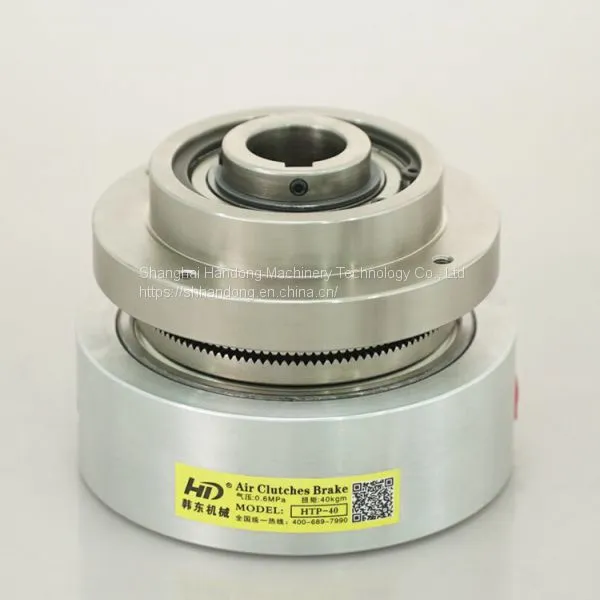

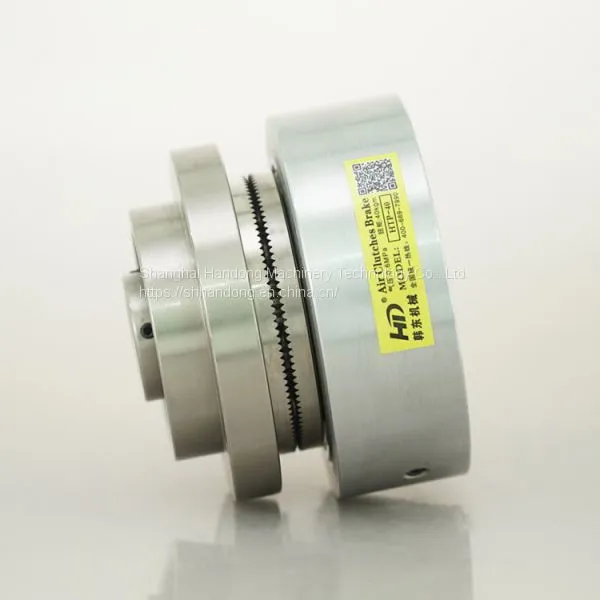

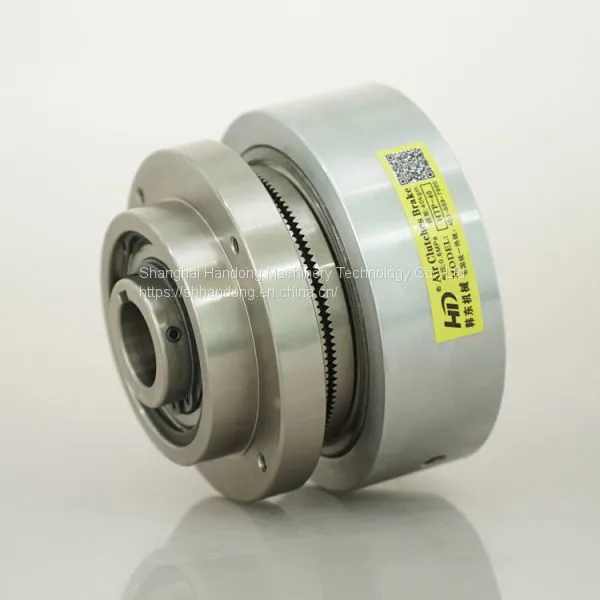

HTP inside tooth plates flange mounted pneumatic clutch is a another kind of tooth and tooth clutch, its tooth plates is inside. Its outside structure and working mode are similar like BTC clutch, so it is also through tooth and tooth connection to transmit torque. This kind of tooth clutch is also extensive applied in all kinds of modern industrial equipments for winding and unwinding machine.

Handong made HTP model inner tooth clutch is made with superior quality, it can well alternative CTHP, 5H models tooth clutch in dimension, performance and with competitive price. HTP air applied pneumatic tooth clutch is terminal face tooth clutch, tooth and tooth structure, it can transmit torque from two ends side. And it is both can be used in wet and dry situation flexible, transmit torque will be larger in dry working situation.

Handong company is a professional manufacturer of this tooth clutch, HTP made is based on oversea market requirement, so products' quality and performancec are in superior standard. So it widely applied to replace American Nexen 5H flange mounted tooth clutch, Japan Asahi CTHP model industrial pneumatic clutch and others with competitive price and good service.

There are some models of this clutch, including HTP-2, HTP-20, HTP-30, HTP-40, HTP-60, HTP-80, HTP-140, HTP-200, HTP-350. They can replace oversea market Nexen and Asahi brand tooth clutch very well, such as Asahi CTHP 2, CTHP 16, CTHP 25, CTHP 38 and Nexen 5H20P, 5H30PSP-E, 5H20P, 5H30P2P,  5H30P3P,  5H30P4P,  5H50,  5H45,  5H40,  5H35,  5H30,  5H35PSP-E, 5H40PSP-E and etc.

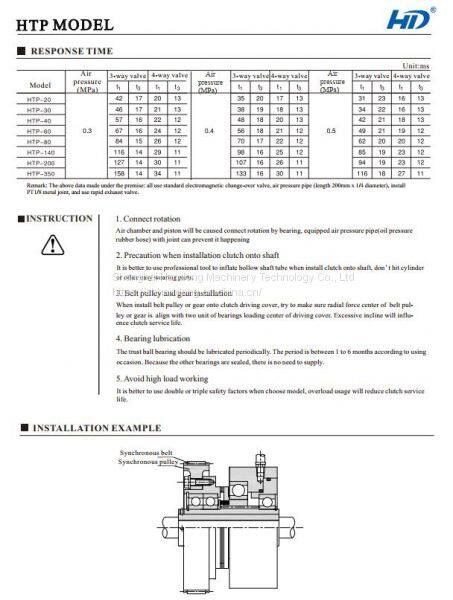

These tooth clutch is easy assemble and simple operation, while transmit high torque from 26-3500N.m as need. Following is the technical data and assemble instruction for your reference:

From above technical data shown, we can understand that this HTP clutch is just like BTC pneumatic clutch, it is also bore pilot mounted. Different model, its bore diameter is different, it is 20-75mm. On the other hand, this tooth clutch is suitable for slow speed or standby connection, after linking, it can be fast rotated, max speed is 700-1500r/min.

This HTP model air shaft tooth clutch transmit torque is via several sawtooth, different model of it tooth quantity is different, too. It is from 91-244 pieces of strong and durable sawtooth equiped. On the other hand, different model of this clutch, its air chamber volume is different, too. Air chamber volume larger, its delivery torque is larger, too. They air chamber volume is from 7.19 cm³ to 43.38cm³, so their transmit torque is from 200-3500N.m.

1.Why clutch’s tooth and tooth plates can’t be released quickly?

* For this situation, it maybe caused by return springs broken or air pressure not enough. Because air pressure is not enough or leak air leakage, the push force will not strong to separate these two tooth plates immediately. On the other hand, it is the return springs broken, leading to driven tooth plate go back to original place force is not enough.

2.How about the quality of Handong products?

* Handong company is a professional and outstanding manufacturer of pneumatic clutch, pneumatic brake and safety chuck. Our products can alternative oversea brand products, so it doesn’t need to worry about products’ quality, it is superior.
