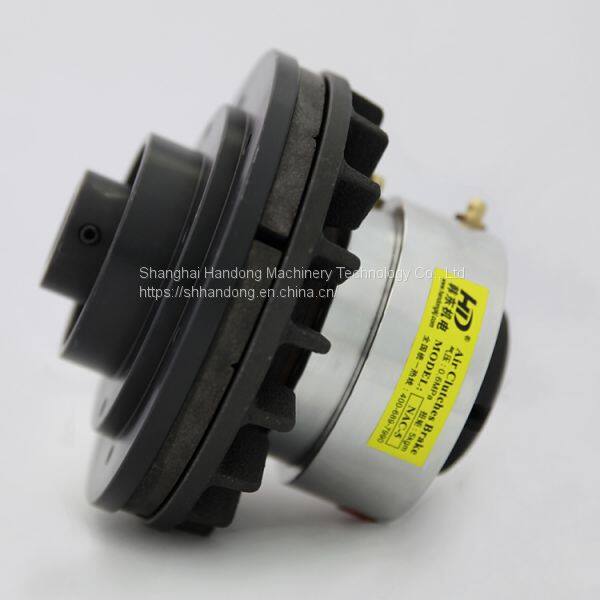

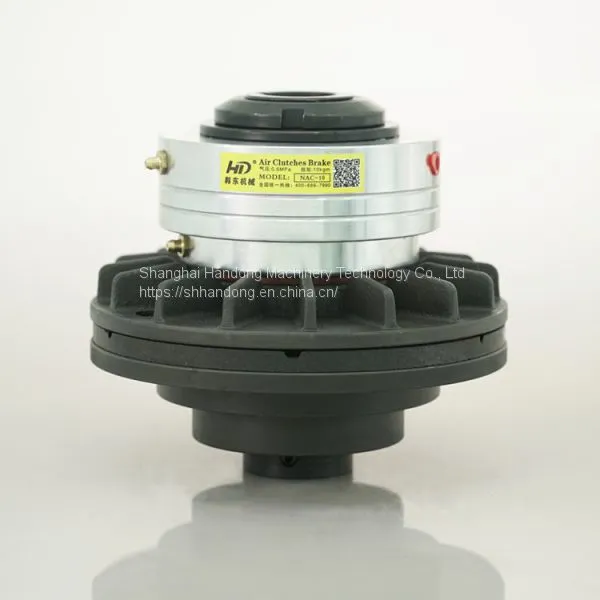

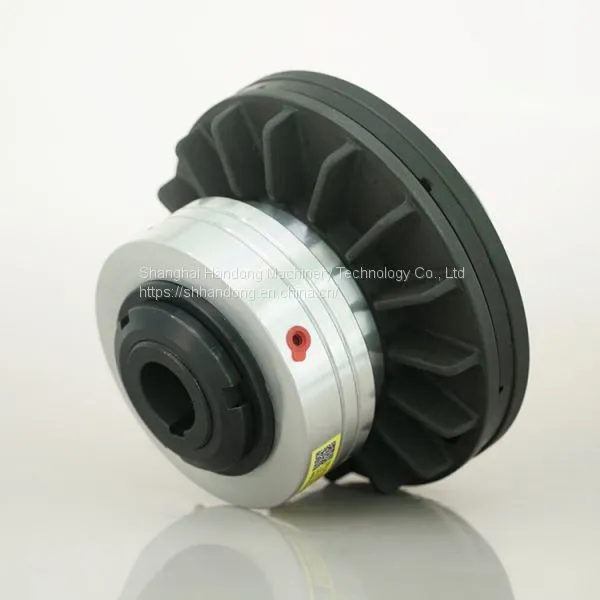

Pneumatic friction clutch used for packaging and printing machine

Pneumatic friction clutch used for packaging and printing machine

Pneumatic friction clutch used for packaging and printing machine, laminating machine, roller machine, conveyor, rubber tire packing machine, tyre forming machine, corrugated paper making machine, glass making machinery, can filling machine and other machineries.

NAC model pneumatic friction clutch working thoery like this:

This clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on are assembling to the wheel to come into an integrated structure. Disc and friction plate are separated by return springs when air pressure exhausted, clutch released.

Friction plate can be parted by adjusting screwing nuts.

When linked, transmit driving part power to driven part ( chain, pulley, shaft and etc.). When released, driving part power and driven part power separated, driving part rotating with power shaft again. This shaft clutch can be linked and separated in frequently, preventing motor or driving part from start and stop in many times, so as to prolong motor or driving part's usage lige. On the other hand, this connect clutch can save many energy for customers.
