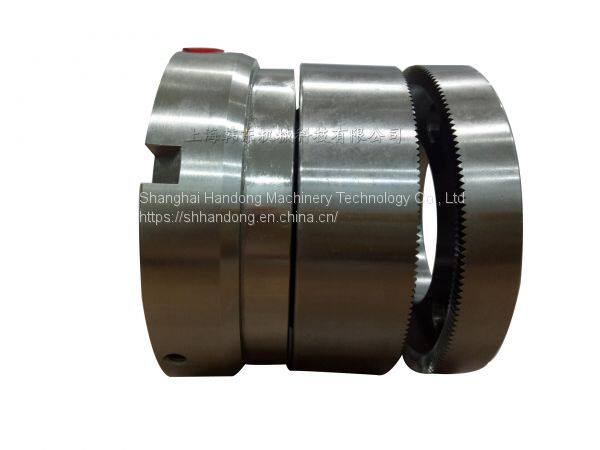

HTC pneumatic tooth and tooth plate clutch is a special friction clutch, its two tooth plates are separated. After supplying air source, driving and driven tooth plate connected for power transmission.

HTC model air shaft tooth clutch is linked with air pressure, released by return springs. After supplying air pressure, piston pushes driving tooth plate to slide along the direction of the axis, driving tooth plate compressed driven tooth plate to come into an integrated structure, clutch linked. Driving tooth plate and driven tooth plate are separated by return springs after exhausting air pressure, clutch released.

This pneumatic inner tooth clutch is linked by two ends of tooth engaged in axia movement after supplying air pressure, released by return springs after exhausting air pressure. Its structure is very similar with BTC, BTC and HTP model pneumtic tooth clutch are both tooth clutch. The difference is BTC clutch two ends of tooth are integrated, while HTC clutch's tooth plate are separated, they can be taken out independently.

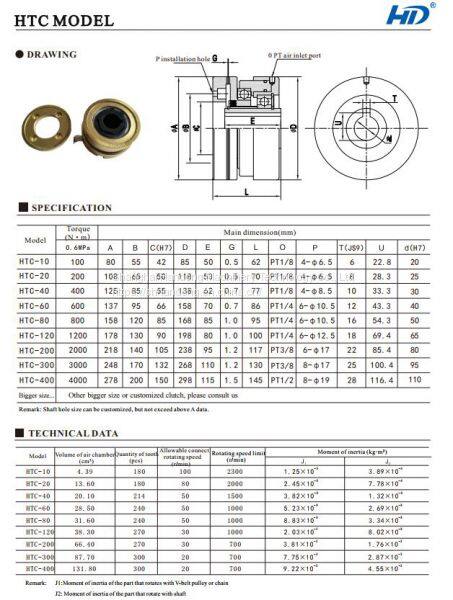

Split type tooth clutch, its up and down plane tooth plate can be separated independently. But it is instant engagement and separation, action flexible and rapid. This is the dimension and technical data of it for your checking:

When used in either static or low speed engagement applications, tooth clutches and clutch couplings provide an efficient, positive, switchable link between a motor and load on in-line or parallel shafts. While the field (electromagnet) assembly is prevented from rotating by a fixed flange, the rotor is generally attached to the input shaft. The armature assembly is securely mounted to either an in-line load shaft or a parallel shaft by means of pulleys or gears. It can be used in washing machine to transmit torque.

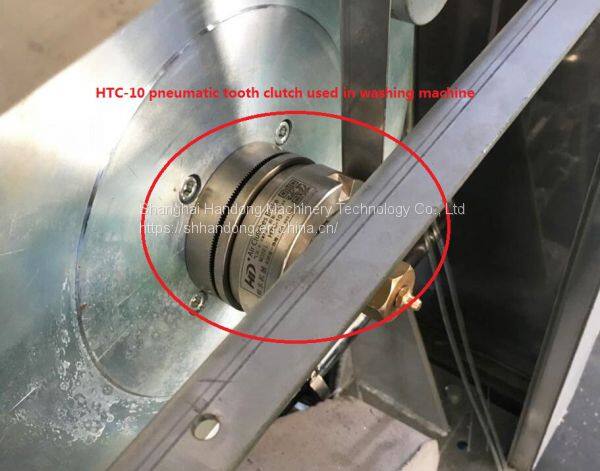

In this case, HTC-10 is used in washing machine for power transmission. As usually, this clutch is in released status, after supplying air source, clutch two tooth plates linked, then motor power transmitted from driving part to driven part, making washing machine working with power.

Handong company is a professional manufacturer of this pneumatic industrial clutch in Shanghai, China. Each product is made with superior quality and high performance. Details of product, you can visit our website:  or . Any technical doubt, welcome to contact me: sqq@sh-handong.com.
