BTC-60 pneumatic tooth clutch used for rewinder machine

BTC-60 pneumatic tooth clutch used for rewinder machine

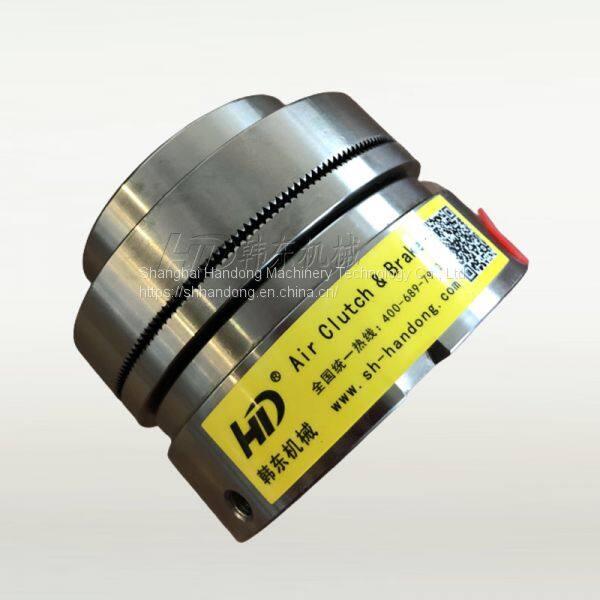

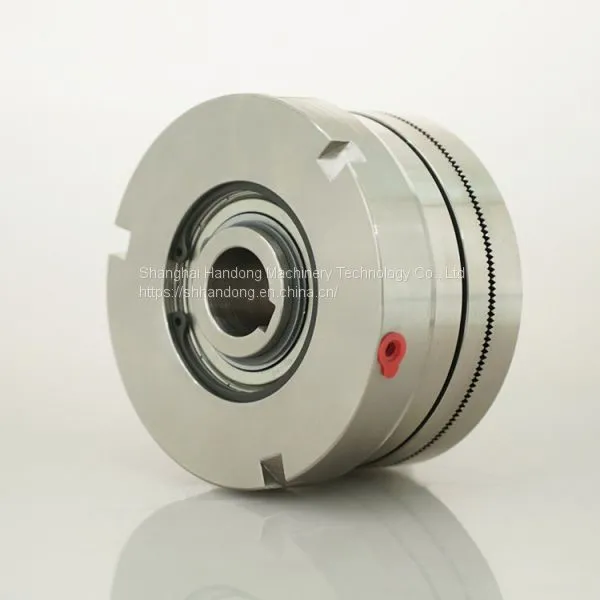

BTC pneumatic tooth clutch is just a connector, it transmits motor power from motor part to driven load part directly. There are some models of this gear clutch, including BTC-10, BTC-20, BTC40, BTC-60, BTC-80, BTC-120, BTC-200, BTC-300, BTC-400, BTC-600, BTC-800, BTC-1200, BTC-1600 and etc. They are widely used in rewinder machine for roller material winding and unwinding.

BTC pneumatic tooth clutch is driven by air pressure, inputing air pressure, clutch linked; after exhausting air pressure, clutch released. Taking air pressure as power source, it is safe and economic. Tooth and tooth plates structure, can delivery high torque for usage.

BTC clutch is very special, it can be used as a clutch and brake as needed. Handong company is a professional manufacturer with full experience for clutch and brake make, each product made with superior quality and competitive price. When it is worked as a clutch, it is for power connecting.

Compared with electromagnetic clutch, this pneumatic tooth clutch will not reduce torque and produce spark for over heat,to ensure heavy workload finished. With torque control range, it is most suitable work as a tension controller. Controlled by air pressure, soft start and stop. Through clutch opetation, adjustment, stable engagement, so as to make full braking performance. Simple structure, easy maintenance and long service life.

There are some models of this pneumatic tooth clutch. Following are the structure and technical data of this pneumatic tooth clutch for joint:

This air driven tooth clutch is a type of air shaft clutch, different model, its bore diameter is different, too. From above technical data, we can see that BTC pneumatic clutch bore diameter is 20-120mm. It is with compact size, while transmit high torque, its max torque can be reached to 16000N.m. On the other hand, if customer's bore diameter is special, customized is also available. Tell us the torque you need, installation space and shaft diameter, then Handong will make a suitable solution for you.

BTC clutch is tooth and tooth connecting, so it is only suitable for slow speed or standstill linking, its connecting speed is 20-100r/min. After connecting, tooth clutch can be rotated fastly, max speed reached to 2300r/min. As we know, BTC clutch is tooth and tooth connect, the model larger, its tooth quantity is more, so its torque is higher, too. For example, BTC-20 pneumatic clutch tooth quantity is 180 pieces, max torque is 200N.m; BTC-120 clutch tooth quantity is 270 pieces, its max torque is 1200N.m.

This BTC pneumatic tooth clutch is widely used in winding and unwinding machine, tire forming machine, convey machine, automatic equipment, food machinery, medical machinery, printing machinery,packaging machinery, corrugated machinery, electrical machinery, lead wire equipment, textile machinery, rubber machinery, tire machinery, automatic production line, paper making machinery, construction machinery, plywood machinery, punching machine, die-cutting machinery, crusher and etc. It also applied in robot, mechanical arm and other high technology industry.

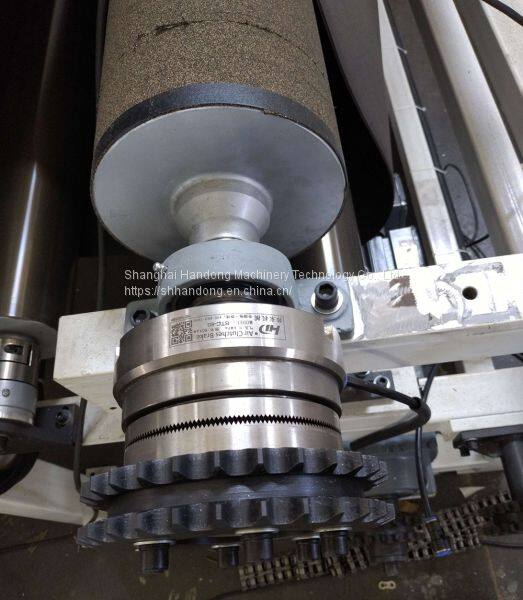

In this case, BTC pneumatic clutch is used in rewinder machine, it is shaft and chain connected mode. Driving tooth plate is connected with motor via chain, and driven tooth plate connected with load part via shaft. As usually, this driving tooth plate is rotating in idle, when it needs to take the roller shaft working, supplying air source, driven tooth plate and driving tooth plate connected together, clutch linked. Then BTC clutch transmit motor power from chain, driving tooth plate to steel roller, driven tooth plate, so as to make steel roller rotating together. After exhausting air source, steel roller stopped and back to original status.

This BTC pneumatic tooth clutch is widely used for winding and unwinding machine, conveyor. Different model of it transmits torque is different. So you can choose a suitable one according to your requirement. If you are not sure, welcome to contact us sqq@sh-handong.com, we will offer the professional solution to meet your requirement.
