Home > Products > Water solenoid valve GOGO > GOGO Normally Close 2 Way Compact Pilot Water Brass Solenoid Valve 16bar 1/4" 3/8" 1/2" BSP Orifice 10mm 220V AC PXC-D14511 NBR

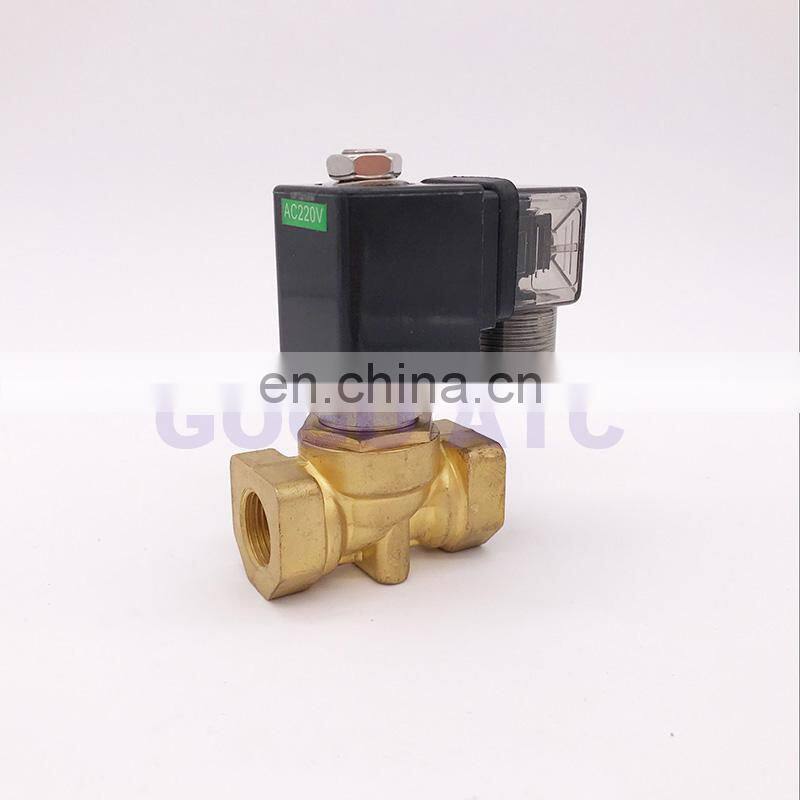

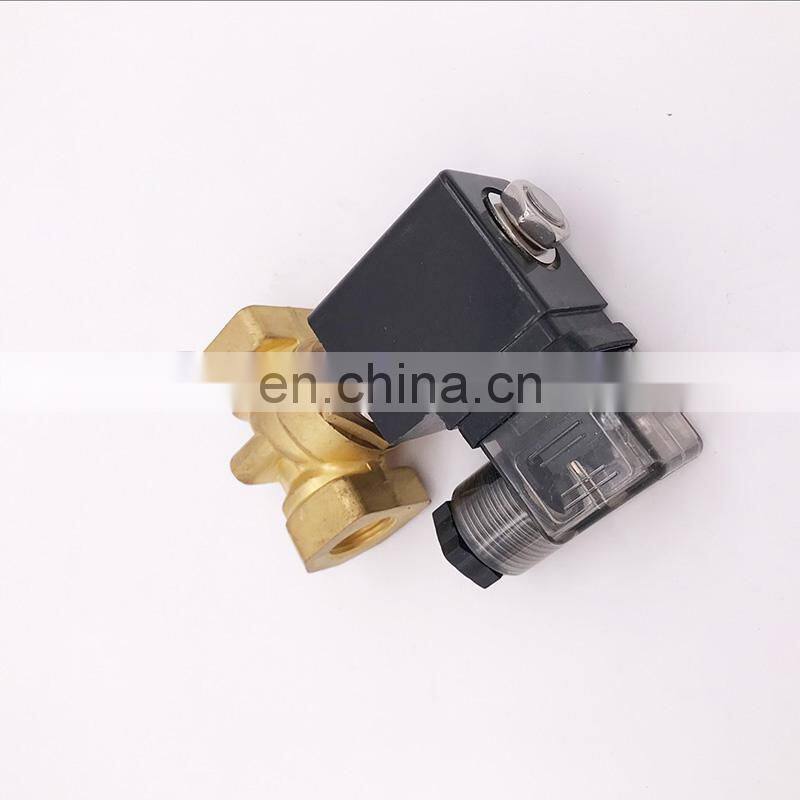

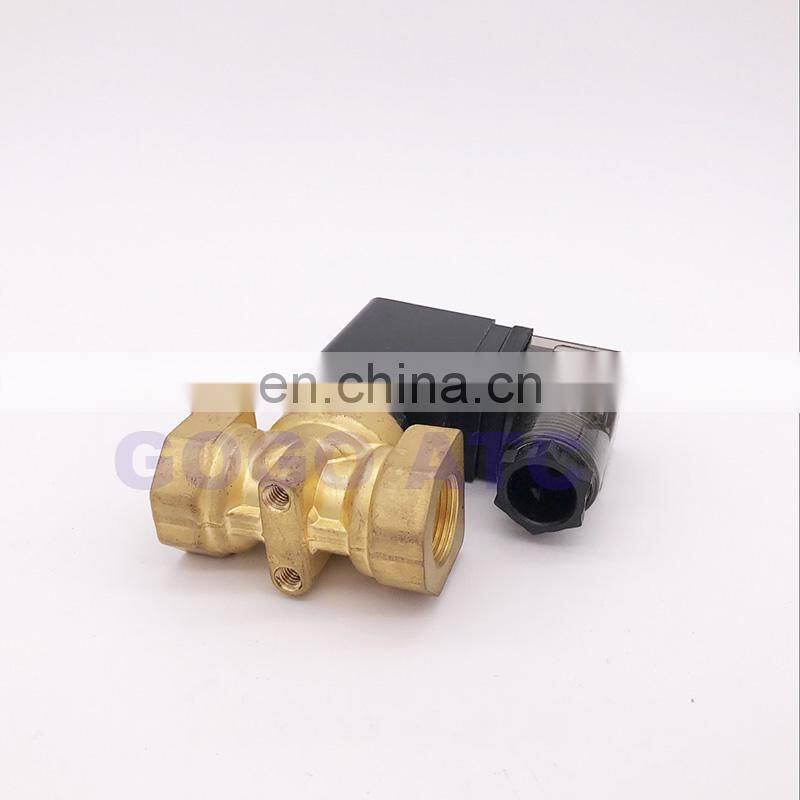

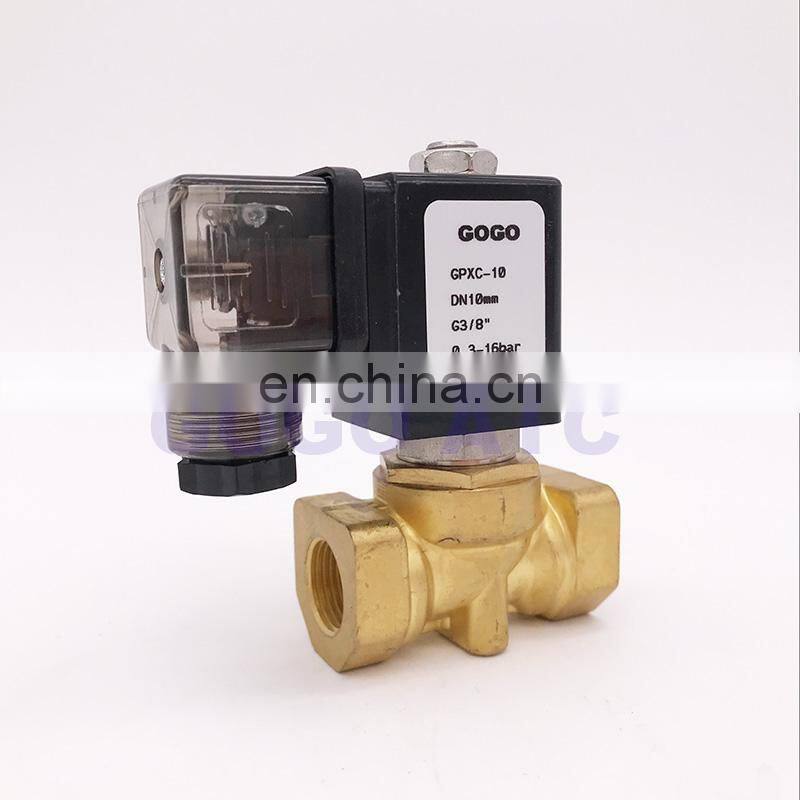

GOGO Normally Close 2 Way Compact Pilot Water Brass Solenoid Valve 16bar 1/4" 3/8" 1/2" BSP Orifice 10mm 220V AC PXC-D14511 NBR
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
GOGO Normally Close 2 Way Compact Pilot Water Brass Solenoid Valve 1/4 3/8 1/2 inch 20bar Orifice 10mm 220V AC PXC-D16011 NBR
-
GOGO 2 way brass water Normally open solenoid valve 1/4 3/8 1/2 inch AC 220V 24V 12V Orifice 10mm 16bar PXC pressure valve
-
GOGO Normally Closed Two Way Pilot Diaphragm Brass Solenoid Valve for water 1/8" BSP 24V DC 2.5mm PX-M03 NBR
-
GOGO Normally Closed Two Way Pilot Diaphragm water Brass Solenoid Valve 1/4" BSP 12V DC 2.5mm PX-M03 NBR
-
GOGO Normally Closed 2 way Pilot Diaphragm water Brass Solenoid Valve 3/8" BSP 110V AC 15mm PX-10 NBR
-
GOGO Normally Closed 2 way Pilot Diaphragm Brass electric 12v 24v 110v 220v water Solenoid Valve air 1/2" BSP 15mm PX-15 NBR
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, PXC-D14511 | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1/4" , G3/8" ,G1/2" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO Normally Closed 2 Way Compact Pilot Water
Brass Solenoid Valve 16bar
Orifice: 10mm
Model: PXC-D14511
Seals: NBR
Port size: 1/4" BSP , 3/8" BSP , 1/2" BSP
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V AC ,220V AC ,12V DC ,24V DC .
PXC Series Compact Pilot Slenoid valve
| Pattern: | Two-port two-position | |||||
| Principium: | Compact Pilot type | |||||
| Control mode: | normally close ,normally open | |||||
| Valve body: | brass ,stainless steel | |||||
| Diaphragm material: | NBR: ≤80°C ,EPDM≤120°C ,FKM: ≤150°C ,PTFE≤180°C | |||||
| Working pressure: | 0.3~16bar | |||||
| Max pressure: | 25bar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | Air ,water ,hot water ,Liquid ,oil ect. | |||||
| Application: | Medium pressure large-flow air water control system | |||||
1.Specification
| Model | Pipe | Orifice (mm) | CV | Pressure (bar) | |||||
| W11011 | D14511 | D16011 | |||||||
| AC | DC | AC | DC | AC | DC | ||||
| Normally closed | Normally Closed: | ||||||||
| PXC-02 | 1/4" | 10 | 1.4 | 0.3-10 | - | 0.3-16 | 0.3-7 | 0.3-20 | 0.3-16 |
| PXC-03 | 3/8" | 10 | 1.4 | ||||||
| PXC-04 | 1/2" | 10 | 1.4 | ||||||

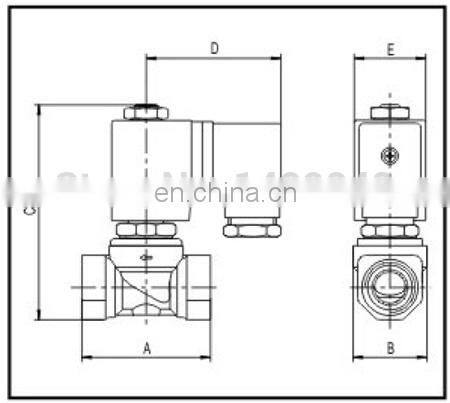

| Size | A | B | C | D | E | |
Normally closed | W11011 | 54 | 31 | 75 | 27 | 30 |
| D14511 | 54 | 31 | 90 | 52 | 30 | |
| D16011 | 54 | 31 | 86 | 59.5 | 38 |
4.Packing
one pieces valve + a carton
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
