Home > Products > Water solenoid valve GOGO > GOGO Normally Closed 2 way Pilot Diaphragm Brass electric 12v dc 24V 220V water pneumatic Solenoid Valve 1" BSP 25mm PX-25 NBR

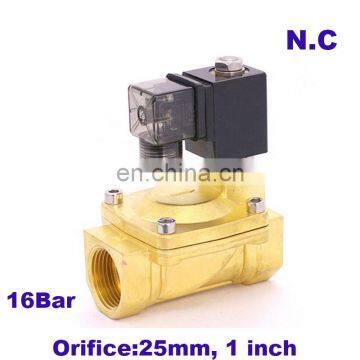

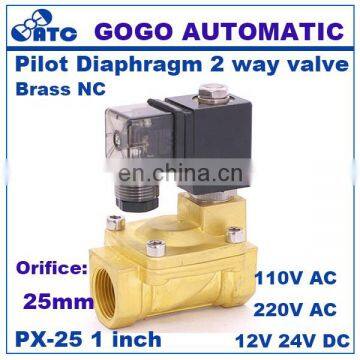

GOGO Normally Closed 2 way Pilot Diaphragm Brass electric 12v dc 24V 220V water pneumatic Solenoid Valve 1" BSP 25mm PX-25 NBR
USD $29.65 - $29.65
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
GOGO 2 way Pilot Diaphragm Brass electric 110v 220v ac water pneumatic normally closed Solenoid Valve 1 1/4" BSP 35mm PX-35 NBR
-
GOGO 2 way Pilot Diaphragm Brass 220v ac 24vdc water pneumatic normally closed electric Solenoid Valve 1 1/2" BSP 35mm GPX-40
-
GPX-50 2 way Pilot Diaphragm Brass 24v 12v dc 220v pneumatic normally closed electric 2 inch water Solenoid Valve 50mm PX-50 NBR
-
GOGO Normally Open 2 Way Pilot Diaphragm Brass solenoid valve water flow control 1/8" BSP 24V DC 2.5mm/3mm NBR 0-16bar/10bar
-
GOGO Normally Open 2 Way Pilot Diaphragm Brass solenoid valves for water flow control 3/8" BSP 24vdc 15mm PX-10K NBR 0.5-13bar
-
GOGO Normally Open 2 Way Pilot Diaphragm Brass water solenoid valves flow control 1/2" BSP 24v 220V AC 15mm PX-15K NBR 0.5-13bar
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, PX-25 | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", 1 inch | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO Normally Closed Two Way Pilot Diaphragm Solenoid Valve
Brass for water 1" BSP Orifice: 25mm PX-25 Seals: NBR
*Select China Post Air Mail Please note*
China Post Air Mail exists the problem of high risk of packet loss and Long time ,
we suggest that you use express transportation(EMS/DHL/Fedex/TNT/UPS) for safe and fast .
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V AC ,220V AC ,12V DC ,24V DC .
PX Series Pilot Diaphragm Slenoid valve
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| PX-M03 | 1/8" 1/4" | 2.5 | Pilot Diaphragm type | 0.23 | Brass , SS304 | NBR | 0-16bar |
| PX-10 | 3/8" | 15 | 4.6 | NBR | 0.5-16bar | ||
| PX-15 | 1/2" | 15 | 4.6 | NBR | 0.5-16bar | ||
| PX-20 | 3/4" | 20 | 8.5 | NBR | 0.5-16bar | ||
| PX-25 | 1" | 25 | 12 | NBR | 0.5-16bar | ||
| PX-35 | 1-1/4" | 35 | 26 | NBR | 0.5-16bar | ||
| PX-40 | 1-1/2" | 35 | 26 | NBR | 0.5-16bar | ||
| PX-50 | 2" | 50 | 48 | NBR | 0.5-16bar |
1.Specification
| Pattern: | Two-port two-position | |||
| Principium: | Pilot Diaphragm type | |||
| Control mode: | normally close | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | NBR: ≤80°C ,EPDM≤120°C ,FKM: ≤150°C ,PTFE≤180°C | |||
| Working pressure: | 0.5~15bar | |||
| Max pressure: | 25bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,hot water ,Liquid ,oil ect. | |||
| Application: | Medium pressure large-flow air water control system | |||
2.Dimensions
3 .Picture
4.Packing
one pieces valve + a carton
Shipment
Packaging & Shipping
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Our Services
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Company Information
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
