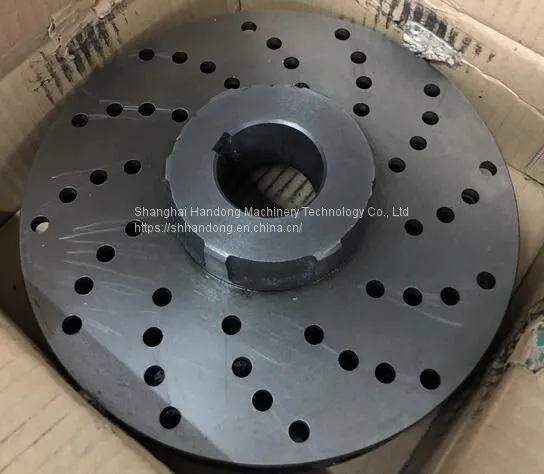

CX250 Steel braking disk with heat dissipation holes

CX250 Steel braking disk with heat dissipation holes

Steel braking disk is one part of DBK250, it is a spare part of this pneumatic friction brake. This braking disk is full of holes, it is good for heat dissipation. So as to prolong brake and friction pads service life.

The original braking disc of pneumatic caliper disc brake represents best performance, safety and durablity. This braking disc spare part with fan cooled structure, it is good for heat dissipation, so as to gurantee the best performance for a pneumatic disc brake in any working situtation.

This steel material braking disk with many holes on the plate, so it is good for heat dissipation during working. The cooling holes spiral distribution like fan blades, it is benefit for multiple caliper disc brake heat dissipation. With this structure, it can prolong disk brake's service life greatly.

As usually, this air applied caliper disc brake matched braking disc regular diameter is 250mm, while 200mm, 300mm, 400mm and 500mm are available if needed. Thickness of it is 10mm and 20mm for choose. Braking disc diameter different, its creat braking force is different, too.

Modular caliper disc brake is extensive applied in aluminum foil, tissue, carton board, paper, plastic film, wire & cable, packing, printing, tire and other industries. For the paper roller winding and unwinding, it is can be used a brake and tension controller.
