280~400nm Wavelength Ultraviolet Rays Tester /UV Testing Chamber/ UV Environment Chamber for PV Module
- shenzhen
- T/T Credit Card
You May Like
-
Hight Quality Solar Panel Conduit Crook Machine / Conduit Tube Bending Testing Equipment/Solar Panel Testing Machine
-
Solar Panel Deformation Testing Machine / Dynamic Mechanical Laod Tester / Static Mechanical Load Testing Equipment
-
PV Moule Solar Panel Testing Machine /Solar Panel Static Mechanical Load Tester With IEC61215-2:2016 Testing Standard
-
Solar Panel PV Module Ice Ball Withstand Impact Testing Machine /Ice Ball Impact Testing Equipment/hail Test
-
Solar Panel Constant Speed Impact Testing Machine /pv Module Hail Impact Testing
-
Solar Panel Compression Strength Testing Machine / PV Module Resistance Deformation Testing Machine
Product Details
| Brand Name | HOTOTECH | Place of Origin | China | |
| Model Number | HTPV-25DC | Power | Electronic |
Product Description

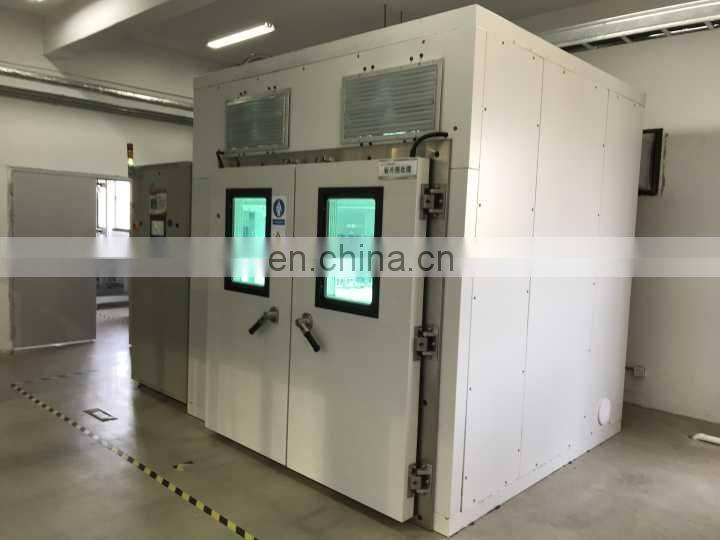

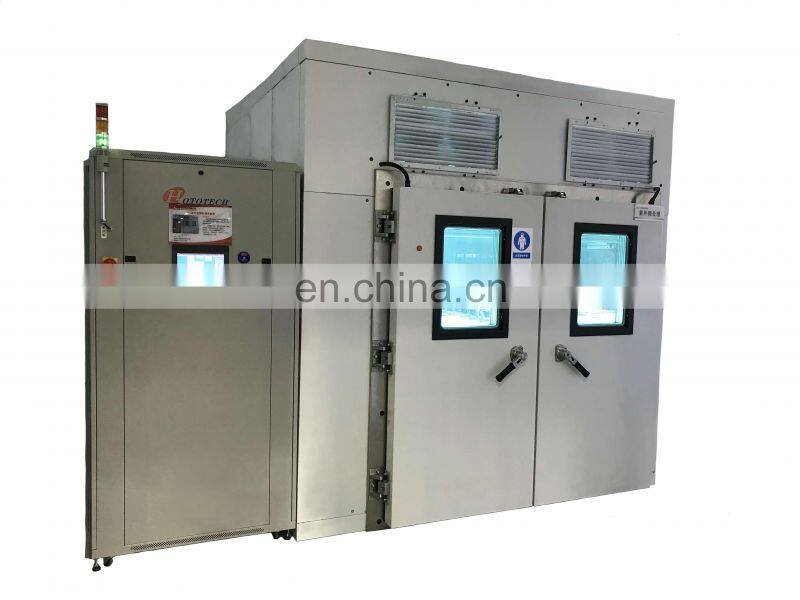

280~400nm wavelength Ultraviolet rays tester /UV testing chamber/ UV environment chamber for PV Module
Testing standard
It's conform IEC61215-2:2016 testing standard requirement
Purpose
to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation
The Mainly Specifications
The Chamber material | completely obstruct ultraviolet rays,tightness,good thermal insulation’s high quality materials |
| Machine UV total irradiation area | 2000×2000mm |
| Light source life | approx 2000 hours , the lamp amount 6pcs, the brand is Honle(Germany import) |
| Single lamp UVA and UVA relative energy rate | UVB approx occupy total energy 3%~10% |
| Irradiation strength | wavelength 280nm~400nm’s irradiation strength can reach about 100W/m²,280nm~320nm ≤10%,promise the test cycle reduce as far as possible |
| Irradiance uniformity | be better than ±15% |
| UVA wavelength | 320nm~400nm |
| UVB wavelength | 280~320nm |
| Module surface temperature | 60℃±5℃ |
| Temperature resolution | 0.1℃ |
Ozone | almost no ozone is produced |
Light ways | upper light, module test plane vertical light source |
Control ways | Computer control |
Electricity | 380V 60HZ |
Testing proceudre
1,Using the calibrated radiameter measure the irradiance at the proposed module test plane and ensure that at wavelength between 280nm and 400nm it does not exceed 250W/M2 (i.e. about five times the natural sunlight level) and that it has a uniformity of ±15% over the test plane
2,Short-circuit or attach the resistive load to the module and mount it in the test plane at the location selected , normal to the UV irradiance beam. Make sure that the module temperature sensors read 65±5℃
3,Subject the modules front side to a total UV irradiation of at least 15 KW/m2 in the wavelength range between 280nm and 400nm with at least 3%, but not more than 10% in the wavelength band between 280nm and 320nm , while maintaining the module temperature within the prescribed range
