High Quality Materials IEC 61215 Standard PV module Testing Machine UV Preconditioning Testing Machine
HTPV-15
-UV Preconditioning Testing Machine
-Standard:According to IEC61215,IEC61646 standard requirement
-Purpose:To precondition the module with ultra-violet(UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation
Technical specification:
1.Use material:can completely obstruct ultraviolet rays,tightness,good thermal insulation's high quality materials
2.Machine UV total irradiation area:more than 2000mm*2000mm,meanwhile satisfy 2pcs module(2*1m)
3.Light source life:system use metal halid lamp,lamp life is 1000 hours,delivery offer one set of spare part,use the life ar above 2000 hours
4.Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%~10%
5.Irradiation strength:wavelength 280nm~385nm's irradiation strength can reach about 100W/m,promise the test cycle reduce as far as possible
6.Irradiance uniformity:be better than ± 15%
7.Real-time monitor and show UVA and UVB strength
8.UVA(320nm~385nm),UVB(280~320nm)Each one of the fiber optic probes
9.Module surface temperature:60℃±5℃
10.Temperature resolution:0.1℃
11.Ozone:Almost no ozone is produced

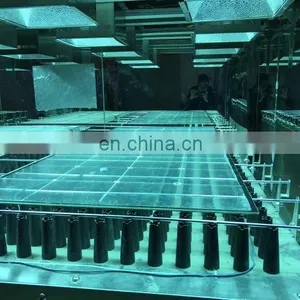

12.Light ways:Upper light,module test plane vertical light source
13.Touch screen operate and real-time monitor,when reached the set value will automatic cut off the light source
14.Real-time figure show module surface temperature,measurement accurate ± 0.1℃
