Solar panel Damp Heat testing chamber high temperature testing machine with IEC61215-22016
Testing standard
It's conform IEC61215-2:2016 testing standard
Purpose
It’s to determine the ability of the module to withstand the effects of long-term penetration of humidity
Testing chamber structure introduce
Inner chamber material |
SUS # 304 high temperature resistant stainless steel plate |
Outer chamber materia |
Antirust steel plate + baking paint treatment |
Insulation Material |
High density hard PU foaming and glass insulation cotton |
The chamber inner size |
1.5m×1.5m×2.3m ( W×D×H) |

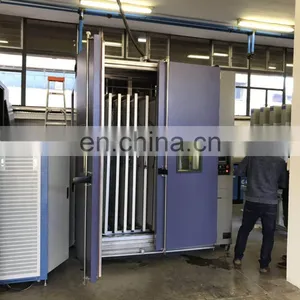

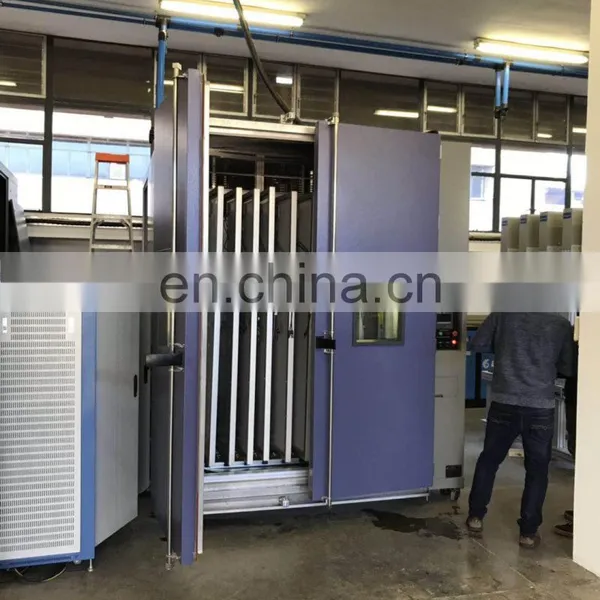

The chamber testing sample quantity |
8 pcs |
The Mainly specifications
1. Temperature range: Room temperature to 120℃
the deviation ≤±1℃ and the uniformity:≤±2℃
2. Humidity range:30%~95%RH
Relative humidity deviation:≤±2.5%RH
3. Damp heat testing: common moisture point: 85℃/85%RH ,the sustainable time ≥1000H
90℃/90%RH,the sustainable time ≥1000H
4.The electricity:380V 60HZ
5.Refrigerant: Environmental protection refrigerant , condenser:water cooled
6.Air supply circulation system: Motor
Control system
Control ways |
Touch Screen Control |
Real-time curve display |
with the program set time, adjustable curve sampling record cycle, set value curve & actual running value curve |
Real-time set display |
with the perform program number, remain time ,cycle times , temperature & humidity value |
Communicate interface |
RS485 communicate interface, can connect to the computer , the data can save, print and download |
Language |
With English |
Data acquisition |
Export, view graphic function |
| Power off function | When Power off, It’s will automatic reset and memory function |
Lab Requirement:
1.Environment requirement: 23℃±2℃
2.Area Requirement: The machines dimension: 2.0m×2.3m×2.5m ( W×D×H)
3.Electricity requirement: 3phase , 380V 60HZ
Document Lists
1. Operate Manual
2. Warranty certificate
3. Maintain manual
Calibration Certificate
