300 W solar panel surface Impact Tester with IEC61215-2:2016 testing standard / solar panel testing equipment
Testing standard
It's conform IEC61215-2:2016 testing standard
Purpose
It’s to verify that the module is capable of withstanding the impact of hailstones
The Mainly Specifications
The Testing machine’s raw material |
Aluminum profile structure (firm and Antirust) |
| Testing sample size | 2000mm×1000mm( adjustable) |
Launch device |
1.Power source is air compressor 2.Air pressure :6-8bar 3.Ice Ball Single filled by Manual 4.The Barrel length approx 940mm 5.The barrel can change |
guide ways |
high quality import guide rail |
Driving ways |
adopt import servo motor+synchronous wheel |
Moving Locating Device |
1.X shaft move distance about :2100mm 2.Y shaft move distance about:1100mm 3.Locating accurate:≤1mm 4.Impact area:2000mm×1000mm 5.Locating control ways:PC control and automaitc locating |
Testing velocity system and theory
1. The ice ball through the infrared test velocity sensor , meanwhile catch Infrared by breaking time T, according to the V=S/T calculation ice ball flight velocity
2.Infrared test speed sensor accurate:±5%
3.The speed catch range:0-50m/s
Ice ball diameter , mass and speed
Diameter(mm) |
Mass (g) |
Speed (m/s) |
Diameter(mm) |
Mass (g) |
Speed (m/s) |
25 |
7.53<5% |
23.0±5% |
35 |
20.7<5% |
27.2±5% |
45 |
43.9<5% |
30.7±5% |
Ice ball mould specifications
1,1 mould with 6 ice ball , each ice ball size with 2set mould
2,The Mould material:Special materials and the ice ball easy take off from the mould
3,The Mould process : CNC processing
Software Operate Systen Feature
1,Computer opeate and control software by HOTOTECH researched and development, easy operate and test data stable
2,The software support Chinese and English , with the Switching function
3,Fotware display the impact point, impact speed, ice ball diameter etc
4,The testing data can save, inquiry and print
5,Testing data export is World , Excel, PDF, JPG etc format

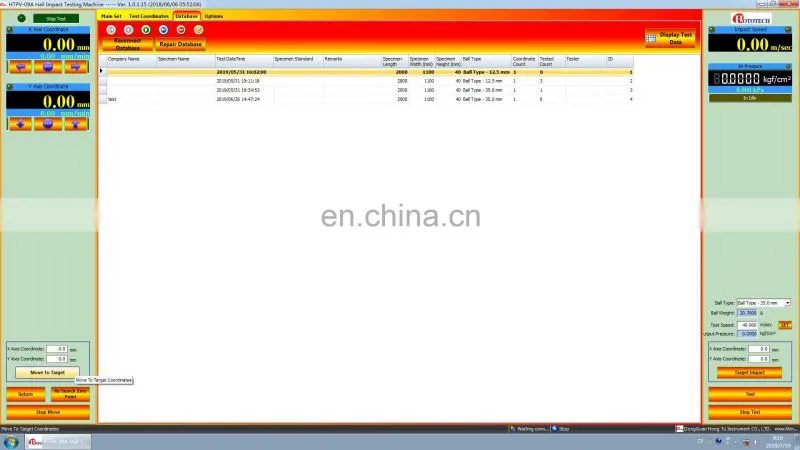

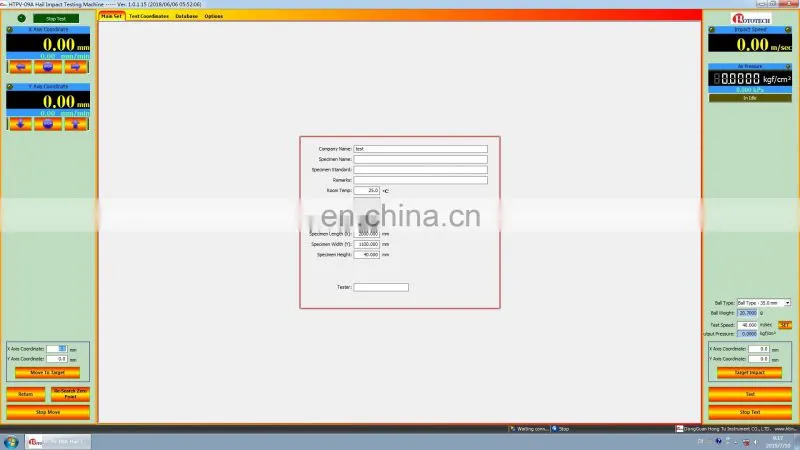

Software interface display
