Home > Instruments & Meters > Test Instrument > Test Machine > Solar Panel Destroy Testing Machine / PV Module Break Tester /Module Breakage Tester With IEC61730-2:2016

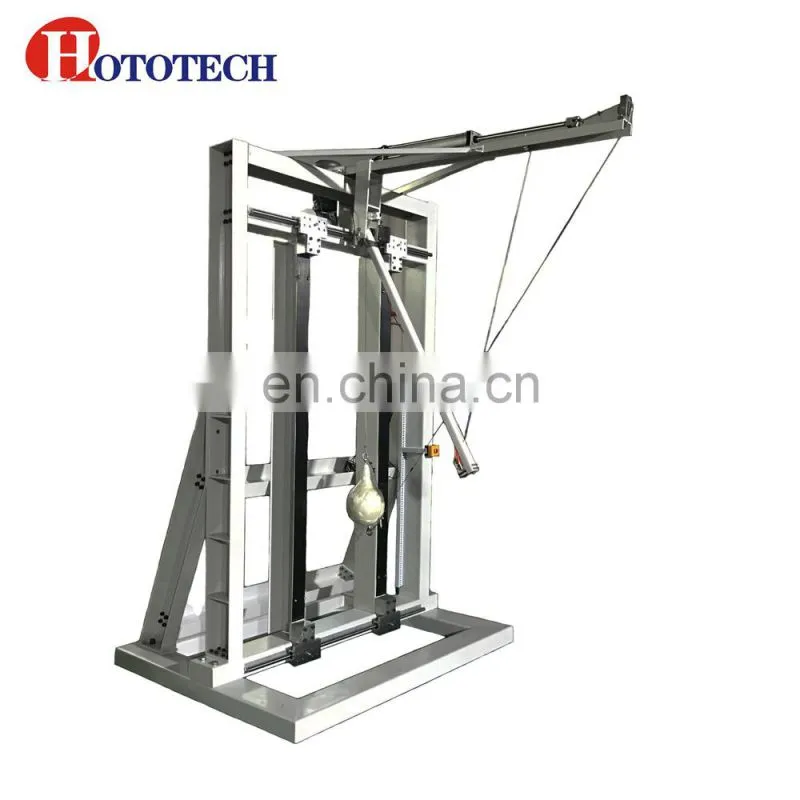

Solar Panel Destroy Testing Machine / PV Module Break Tester /Module Breakage Tester With IEC61730-2:2016
US$ 7,569.14 - 7,569.14
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
China
Model Number:
HTPV-05
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel UV Preconditioning Test Chamber Testing Machine With IEC61215-2:2016 Testing StandardUS$ 50,000 - 58,000MOQ: 1 Set -
IEC61215-2:2016 Static Mechanical Load Test Machine for Solar Panel TestingUS$ 40,000 - 46,000MOQ: 1 Set
-
Solar Panel PV Module Hail Impact Tester Testing Machine With IEC61215-2:2016 Testing StandardUS$ 26,000 - 30,000MOQ: 1 Set
-
Robustness of Terminations Testing Machine for Solar Panel Test With IEC61215-2:2016 Testing StandardUS$ 6,550.21 - 6,550.21MOQ: 1 Set
-
PV Module Salt Mist Aging Testing Machine IEC61701-2011 Chamber of LaboratoryUS$ 19,999.99 - 19,999.99MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
China
Model Number
HTPV-05
Power
Electronic
Company logo
Testing Standard
It's according to IEC61730-2:2016 testing standard
Purpose
The purpose of this test is to provide confidence that risk of physical injuries can be minimized if the module is broken in its specified installation
Technical specifications
The structure frame raw materials |
Steel channel ( approx the width ≥100mm ) |
The inner dimension of test frame |
2.2×1.3m |
Rubber bar and the thickness |
3mm |
Rubber bar and the wide |
15mm |
| Impactor inner filling diameter | 2.5-3.0mm |
The mass of impactor |
45.5 ± 0.5kg |
Safety Function |
Anti-secondary impact function |
Impact height |
750mm, 900mm, 1200mm |
Impact height display accurate |
0.1mm |
Impactor rise ways |
Automaitc rise/ Jog rise |
Control ways |
Touch screen control |
