Solar panel Constant speed impact testing machine /Solar panel constant speed strike testing equipment/Hail test
Testing standard
It's conform IEC61215-2:2016 testing standard
Purpose
It’s to verify that the module is capable of withstanding the impact of hailstones
The Mainly Feature
The Testing machine’s raw material |
Aluminum profile structure (firm and Antirust) |
| Testing solar panel size | 2m×1m (customized) |
Launch device |
1. Power source is air compressor 2.Air pressure :6-8bar 3.Ice Ball Single filled by Manual 4.The Barrel length approx 940mm 5.The barrel can change |

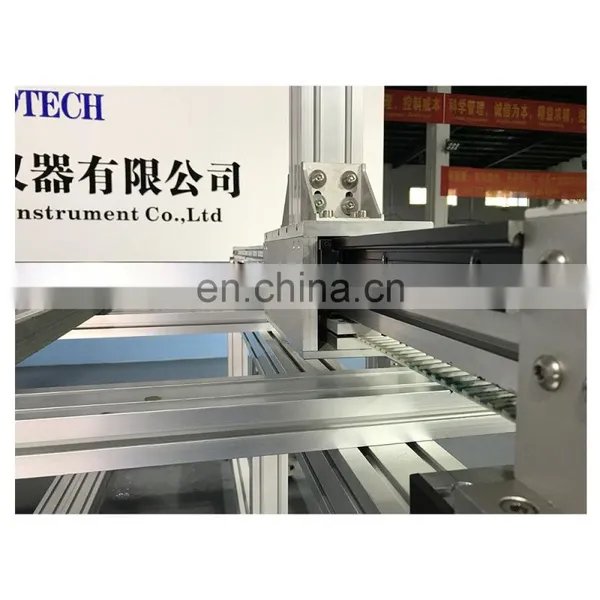

The guide ways |
high quality import guide rail |
Driving ways |
adopt import servo motor+synchronous wheel |
Moving Locating Device
1,X shaft move distance approx 2.6m
2,Y shaft move distance approx 1.6m
3,Locating accurate:≤1mm
4,Impact area:2.5×1.5m ( Adjustable , It’s can suit different size solar panel testing)
5,Locating control ways is PC control and automaitc locating
Testing velocity system and theory
1,The ice ball through the infrared test velocity sensor , meanwhile catch Infrared by breaking time T, according to the V=S/T calculation ice ball flight velocity
2,Infrared test speed sensor accurate:±5%
3,The speed catch range:0-50m/s

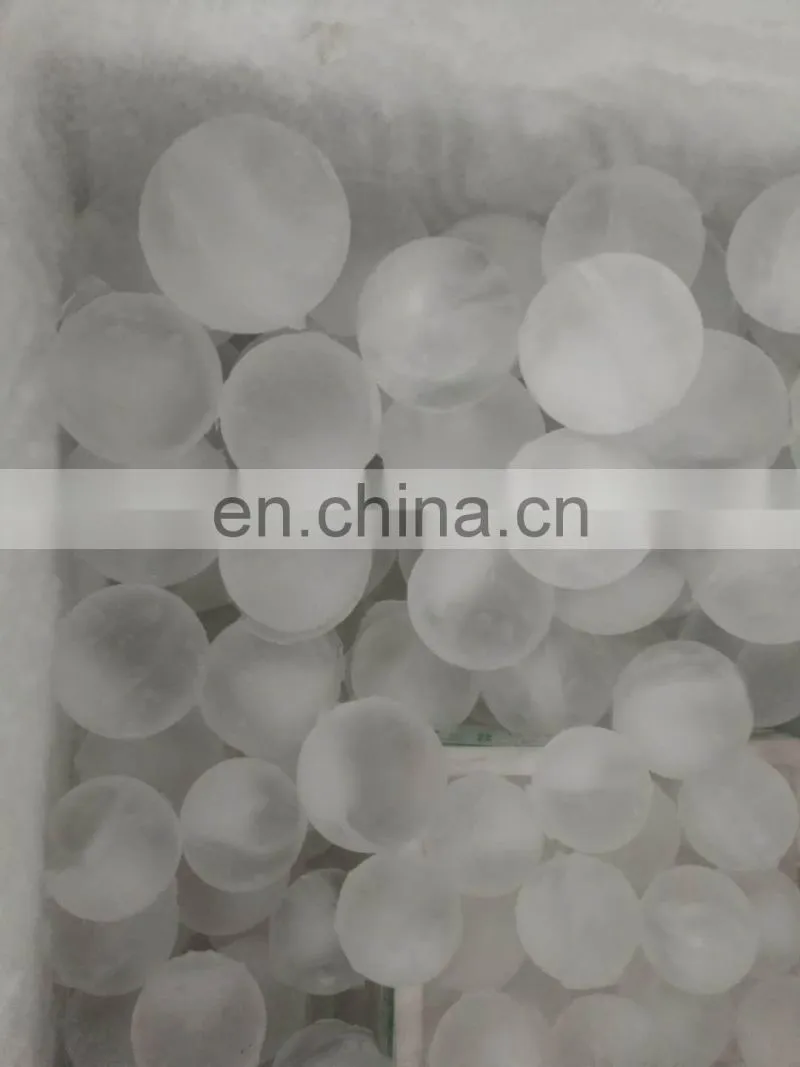

Ice ball diameter , mass and speed
|
Diameter (mm) |
Mass (g) |
Speed (m/s) |
Diameter (mm) |
Mass (g) |
Speed (m/s) |
25 |
7.53<5% |
23.0±5% |
35 |
20.7<5% |
27.2±5% |
45 |
43.9<5% |
30.7±5% |
|
|
Ice ball mould specifications
1,1 mould with 6 ice ball , each ice ball size with 2set mould
2,The Mould material:Special materials and the ice ball easy take off from the mould
3,The Mould process : CNC processing
Software Operate Systen Feature
1,Computer opeate and control software by HOTOTECH researched and development, easy operate and test data stable
2,The software support Chinese and English , with the Switching function
3,Fotware display the impact point, impact speed, ice ball diameter etc
4,The testing data can save, inquiry and print
5,Testing data export is World , Excel, PDF, JPG etc format
