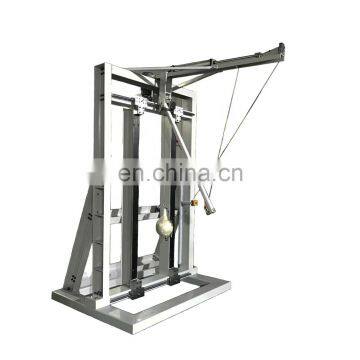

solar panel destroy testing machine / PV module break tester /solar panel destruction testing equipment
USD $600 - $1,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
- IEC61215 Wet Leakage Current Testing Machine / testing equipment
- Fall ball hit testing machine / Drop ball impact testing equipment /Vertical drop testing apparatus
- Solar panel PV module Cord Anchorage pull fatigure testing machine / Cord anchorage drag fatigure teseting equipment
- solar panel PV Module burst testing machine /testing equipment/tester
- solar panel fracture testing machine /fracture testing equipment /solar panel PV Moddule testing
- solar panel PV module anti-scratch testing machine/scratch resistance testing equipment
Product Details
Brand Name: | HOTOTECH | Place of Origin: | China | Model Number: | HTPV-03 |
Power: | Electronic |
Product Description
Product Description
Standard:According to IEC61730-2004 standard requirement
Purpose:
This test is provide confidence that cutting or piercing injuries can be minimized if the module is broken
Technical specifications:
Impact heigh | 300mm~1220mm |
The inner dimension of test sample | according to customer’s pv module size requirement |
Sample frame with the rubber bar | thickness 3mm ,Wide 15mm ,Hardness shore A50° |

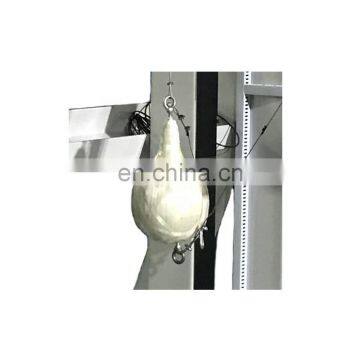

The mass of impactor | 45.5 ± 0.5kg |
Inner filling diameter | 2.5-3.0mm’s pellets |
Offer motor voltage power | 380V |
Compress air | 3-5KG |
