Home > Products > PV Module Tester > solar panel conduit inflect machine / testing equipment/tester

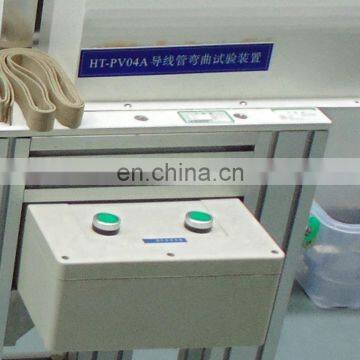

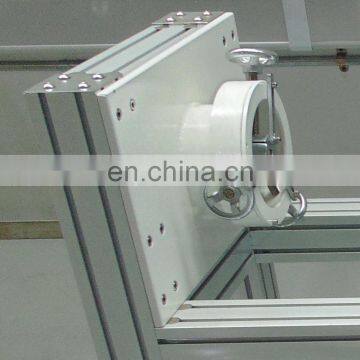

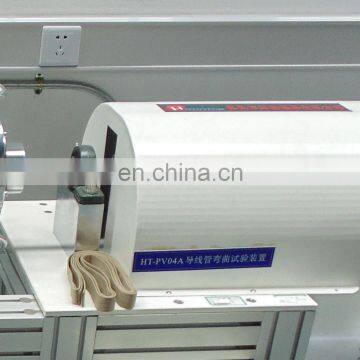

solar panel conduit inflect machine / testing equipment/tester
USD $600 - $1,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-
solar panel PV module Damage resistance tester/Scratch resistant testing machine/testing equipment
-
solar panel surface destroy testing machine /surface break/surface destruction testing equipment
-
solar panel PV Module wreck testing machine / ruin testing equipment/tester
-
ultraviolet preconditioning testing chamber / UV preconditioning testing environment chamber / UV environment testing chamber
-
solar panel PV module Backplane scratch resistance teseting equipment /solar panel Backboard withstand scratch testing machine
-
solar panel PV module Surface damage testing machine/surface scratching testing equipment
Product Details
| Brand Name | HOTOTECH | Place of Origin | China | |
| Model Number | HTPV-04 | Power | Electronic |
Product Description
Company logo
Product Description
Standard:
According to IEC61730-2:2004 standard requirement
Purpose:
modules provided with junction boxes intended for attachment of a permanent wiring system using conduit must provide assurance of the ability of the box construction to withstand load forces which may be applied to the conduit during and after installation
Technical specifications:
1,Controller set frequency range:0~120 Hz
2,When set the frequency is 60HZ, principal axis revolution: 1 rev./min
3,Principal axis revolution :N rev./min=frequency Hz / 60
4,Timing range:1~9999s
5,Use power is single phaseAC220V,Power consumption100W
Conduit outer diameter suitable counterweight table :
Conduit outer diameter(mm) | Suitable counterweight(N) |
13 - 25 | 220 |
26 - 50 | 330 |
51 -100 | 490 |
