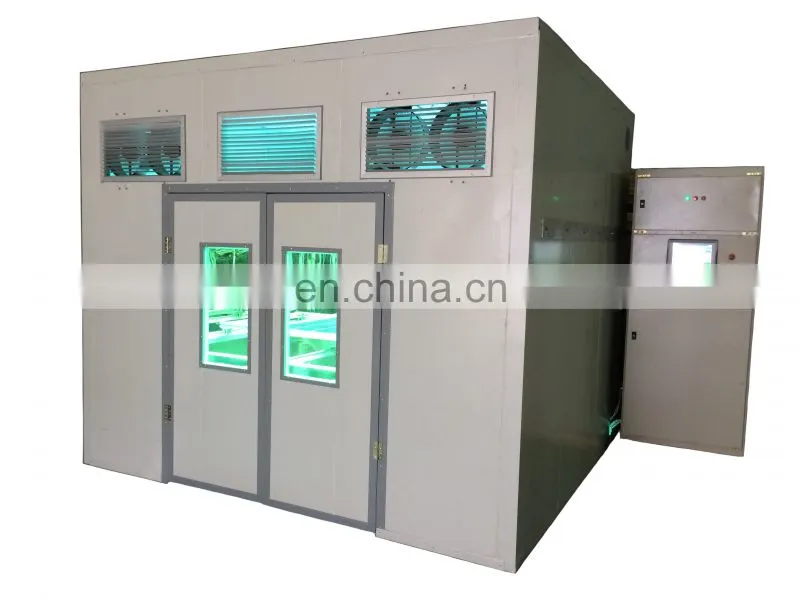

Help CenterUltraviolet Preconditioning Testing Chamber / UV Preconditioning Testing Environment Chamber / UV Environment Testing Chamber
Related Products
-
Solar Panel PV Module Backplane Scratch Resistance Teseting Equipment /solar Panel Backboard Withstand Scratch Testing MachineUS$ 600 - 1,000MOQ: 1 Set -
Solar Panel PV Module Surface Damage Testing Machine/surface Scratching Testing EquipmentUS$ 600 - 2,200MOQ: 1 Set
-
Solar Panel PV Module UV Aging Testing Chamber /UV Aging Environment Testing Chamber / UV Aging Testing MachineUS$ 600 - 30,000MOQ: 1 Set
-
Solar Panel Ultraviolet Pretreatment Tester/UV Aging Testing Machine/Solar Panel Testing Equipment With IEC61215-2:2016US$ 47,904.19 - 67,365.23MOQ: 1 Set
-
Solar Panel Mechanical Load Testing Equipment/PV Module Withstand Force Deformation Testing Machine/PV Module Testing MachineUS$ 12,000 - 20,000MOQ: 1 Set
Standard:According to IEC61215, IEC61646 standard requirement
Purpose:to precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation
Technical specifications:

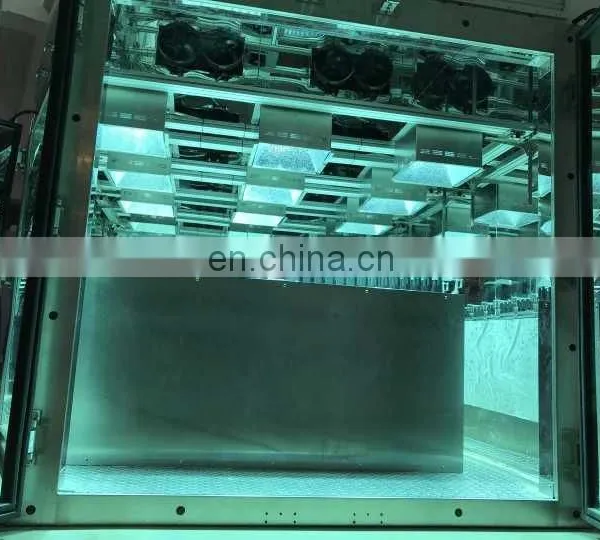

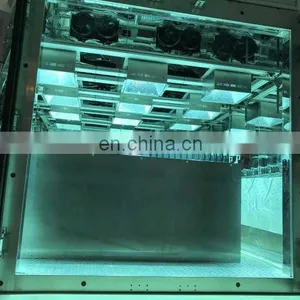

1,Use material:can completely obstruct ultraviolet rays,tightness,good thermal insulation’s high quality materials

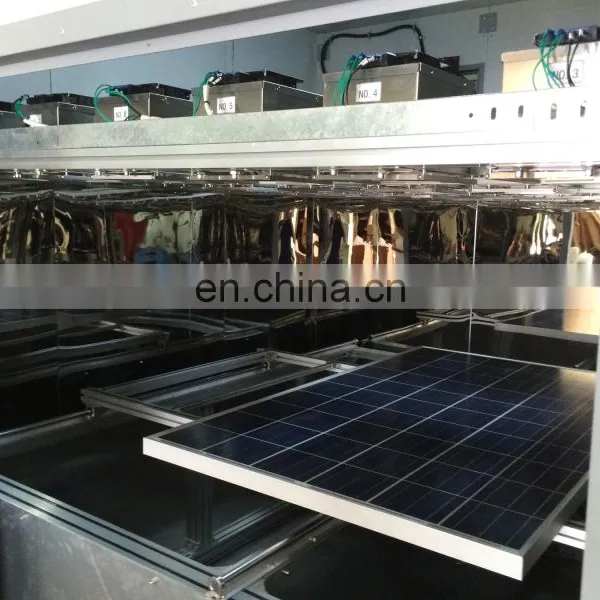

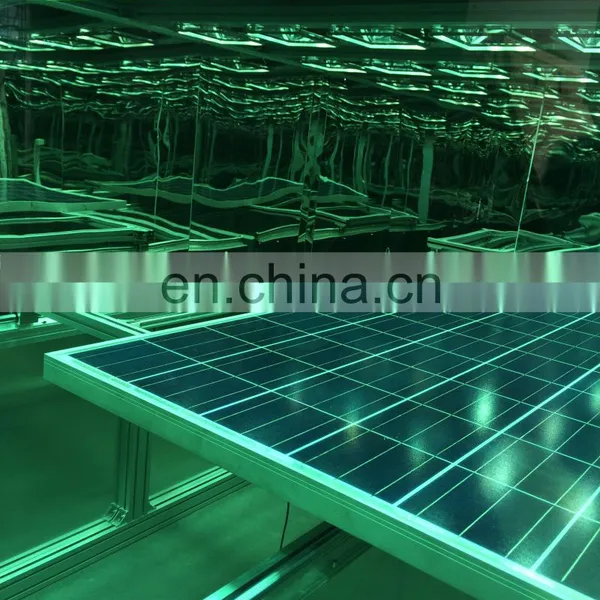

2,Machine UV total irradiation area:more than 2000mm×2000mm,meanwhile satisfy 2 pcs module (2m×1m)
3,Light source life :system use Xenon lamp single lamp life is 1000 hours , delivery offer one set of spare part, use the life at above 2000 hours
4,Single lamp UVA and UVA relative energy rate:UVB approx occupy total energy 3%~10%
5,Irradiation strength:wavelength 280nm~385nm’s irradiation strength can reach about 100W/m²,280nm~320nm ≤10%,promise the test cycle reduce as far as possible
6,Irradiance uniformity:be better than ±15%
7,Real-time monitor and show UVA and UVB strength
8,UVA (320nm~385nm), UVB(280~320nm) Each one of the fiber optic probes
9,Module surface temperature:60℃±5℃
10,Temperature resolution:0.1℃
11,Ozone: almost no ozone is produced

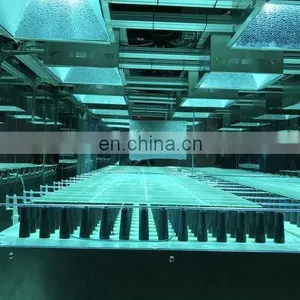

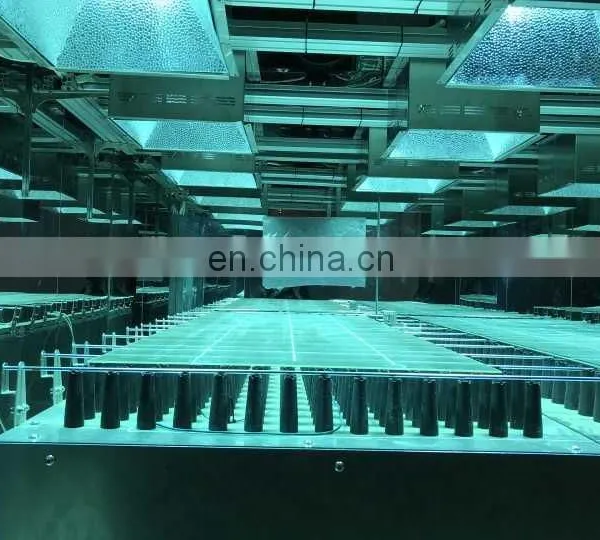

12,Light ways :upper light, module test plane vertical light source
13,Touch screen operate and real-time monitor , when reached the set value will automatic cut off the light source
14,Real-time figure show module surface temperature, measurement accurate±0.1℃
