Home > Products > PV Module Tester > Solar panel ultraviolet pretreatment tester/UV aging Testing machine/Solar panel testing equipment with IEC61215-2:2016

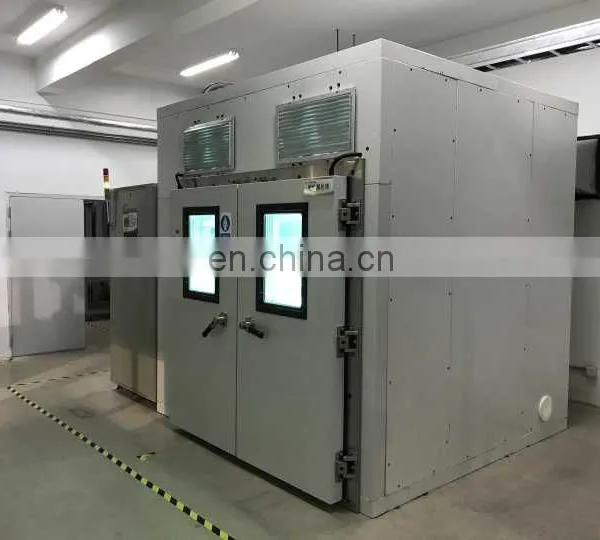

Solar panel ultraviolet pretreatment tester/UV aging Testing machine/Solar panel testing equipment with IEC61215-2:2016
USD $47,904.19 - $67,365.23
/ Set
1 Set(Min.Order)
- shenzhen
- T/T Credit Card
You May Like
-
Solar panel Mechanical Load Testing equipment/PV Module withstand force deformation testing machine/PV module testing machine
-
Hot selling Wet leakage testing equipment/Wet leakage current testing machine/Solar panel testing machine with IEC61215 testing
-
Salt spray tester/Salt Mist Aging Testing Chamber / Solar panel testing chamber for IEC61730 testing
-
Photovoltaic module breach testing machine/Glass impact Testing equipment/Solar panel testing machine for IEC 61730
-
Damp Heat Testing Machine/constant temperature and humidity testing chamber/Solar panel evnironment chamber with IEC61215
-
Solar panel ice ball impact testing machine/Solar panel testing equipment/Hail impact tester with IEC61215-2:2016 standard
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HTPV-13BC | Power | Electronic |
Product Description
Company logo
Product Description
Solar panel ultraviolet pretreatment tester/UV aging Testing machine/Solar panel testing equipment with IEC61215-2:2016
Standard
UV preconditioning testing chamber satisfy IEC61215 , IEC61646 ,IEC61345 standard etc
Purpose
It's to precondition the module with ultra-violet (UV) radiation before the thermal cycle/Humidity freeze testst to identify those materials and adhesive bonds that are susceptible to UV degradation
Technical specifications
| Product Name | Solar panel ultraviolet pretreatment tester / UV aging Testing machine/Solar panel teseting equipment with IEC61215-2:2016 |
| Testing standard | IEC61215-2:2016 testing |
| Function | It's used for solar panel's withstand UV testing |
| UV total irradiation area | 2000mm×2000mm (customized) |
| Iarrdiation wavelength | 280nm~385nm |
| UVA wavelength | 320~385nm |
| UVB wavelength | 280~320nm |
| Module surface temperature | 60 |
| Temperature resolution | 0.1 |
| Control ways | Touch screen |

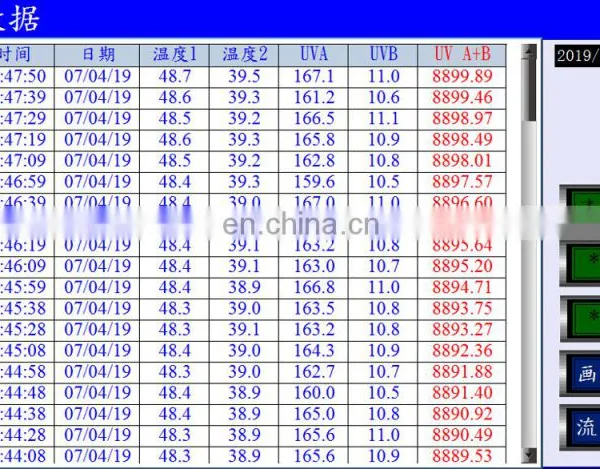

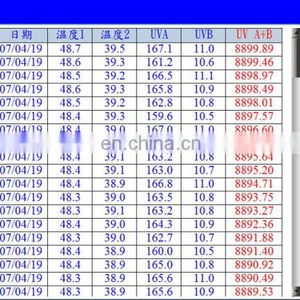

| Data display | Real-time figure show module surface temperature |
| Electricity | 380V 50HZ |
Customer site requirements
Item | Requirement |
Placed dimension | Approx 3000mm×4000mm×2000mm (D×W×H) |
Weight | Approx 1.5 ton |
Compressor air requirement | without |
Power requirement | 3 phase 380V 60HZ |
Gruond requirement | Ground line connect to the ground |
Area requirement | Flat |
Envirnoment requirement | 20℃±2%,humidity 50%~70%, no noise , Shockproof, non-magnetic interference |
| Power | 35KW |

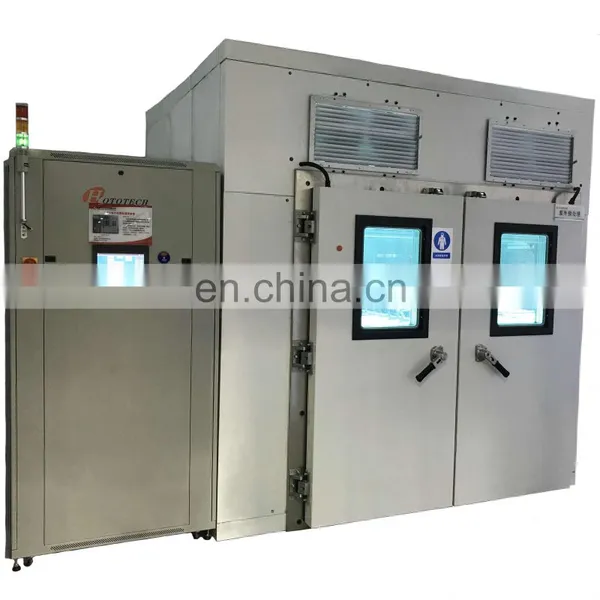

Products images show
Company Information
Certificate
The Relative product
PV exhibition
Our Services
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
Nameplate
