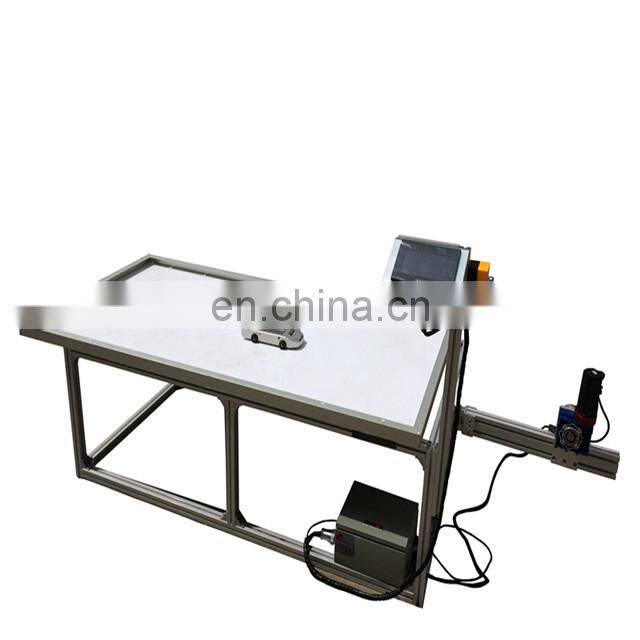

Solar Panel PV Module Backplane Scratch Resistance Teseting Equipment /solar Panel Backboard Withstand Scratch Testing Machine

Standard:According to IEC61730-2 , UL1703 standard requirement

Purpose:

to determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock

Technical specifications:

1,Aluminum alloy material operate table,size approx 1.4m×0.65m.

2,Operate table include tracking pulley wheel, tracking head slide and moving convenience

3,test fixture:

3.1,Adopt carbon steel blade

3.2,Promise 0.64mm±0.05mm thick requirement,and satisfy 0.115±0.025mm blade radius requirement

3.3,Distance and angle can adjust

3.4,included the weights box on the saw bar

3.5,According to IEC61730-2 standard requirement to adjustable weights, promise the test point

suffer gravity 8.9N±0.5N

4,Adopt motor constant speed tracking , speed continue and adjust,  tracking directing can adjust

5,Promise the test fixture to(150±30)mm/s speed pull the module
