Solar panel Mechanical Load Tester /PV Module Static load testing machine / Testing equipment for IEC61215-2:2016 standard
purpose
This test is to determine the ability of the module to withstand wind snow ,static or ice loads
standard
According to IEC 61215,UL1703,IEC 61646
specifications
1.Machine table exterior size:L 320 × D 180 × H 195 cm
2.Test positive load the max 5400 Pa,negative load the max 24 00 Pa
3.Aluminum extrusion structure , platform and support under the test suffer the force statue not deformation ( aluminum surface with the paint dealing , ensure its not discolor)
4.Customization test platform clamp , can according to the pending specimen install method to do the adjust )
5.The max test size 120 × 240cm
6 . Calibrator: 350 kg
7 .DC constant voltage and current power :0~100Vor 0~15A adjustable; the resolution 0.001V or 0.001A
the voltage setting accurate more than 0.1V,current setting value accurate more than 0.1A

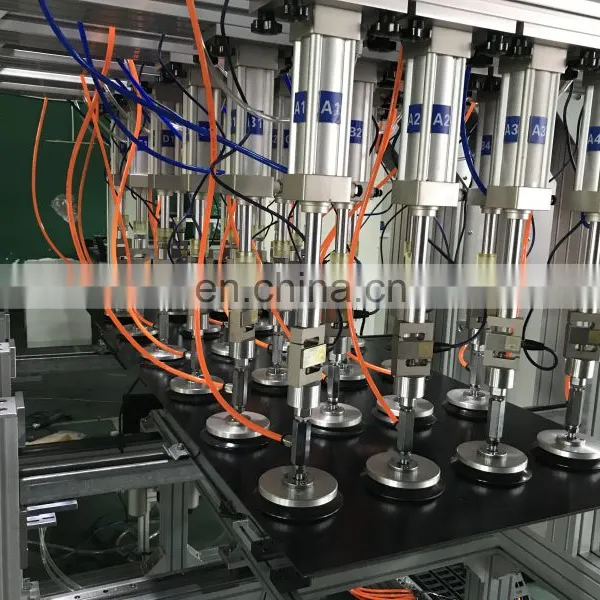

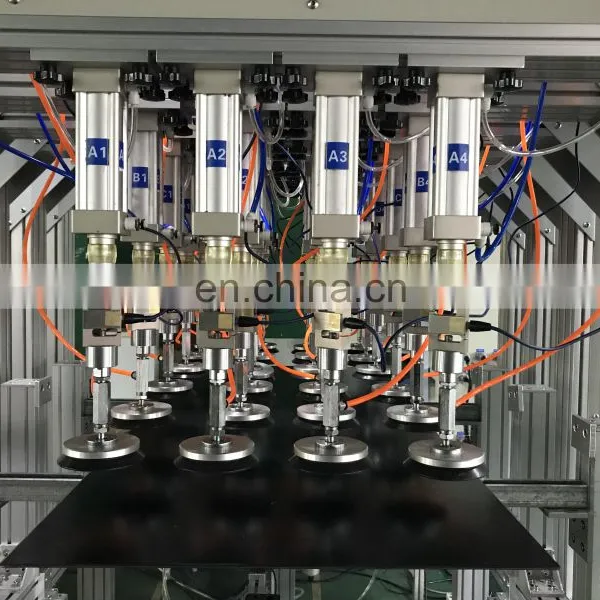

8..Cylinder number:4 groups, in total 8 pcs
Cylinder outside diameter 80mm
Pneumatic cylinder single the max pressure > 6 bar
Pneumatic cylinder single group the max put out force > 300 kg
Pneumatic cylinder stretch stroke:150 mm

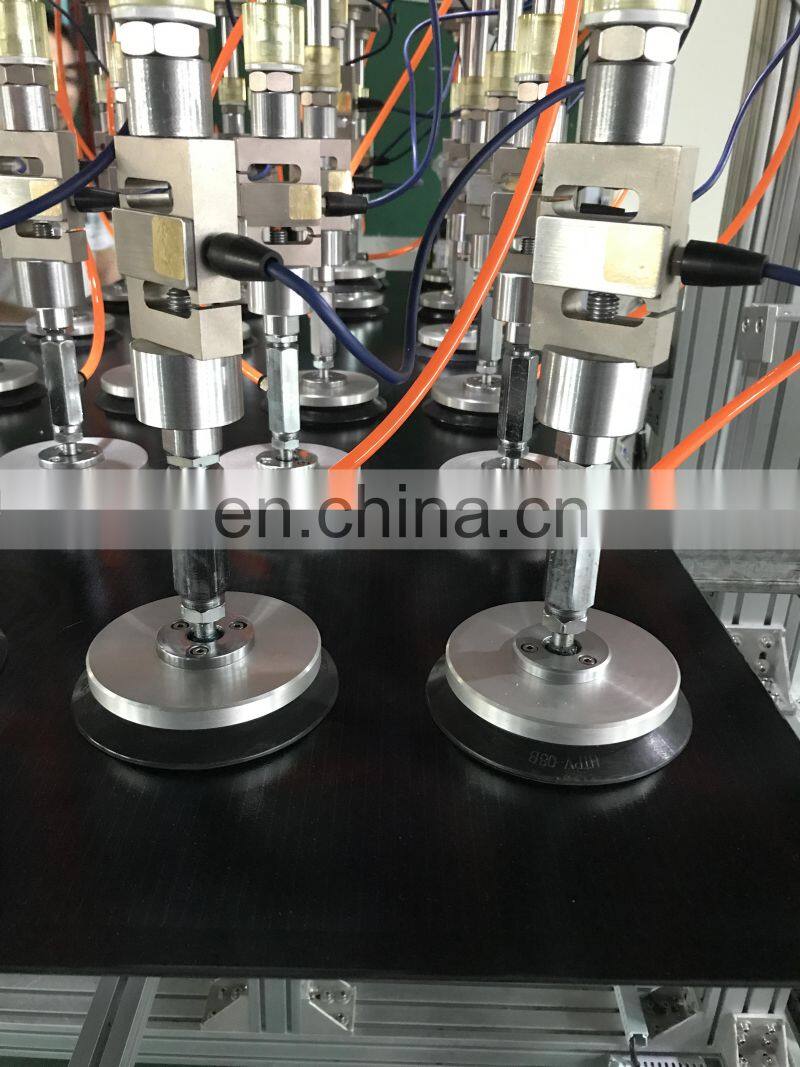

9.sucker number 8 groups , in total 32 PCS
Sucker diameter:120 mm
Every pneumatic attach a vacuum pressure monitor
Between the two suckers mid point spacing can adjust 120mm~ and 400mm

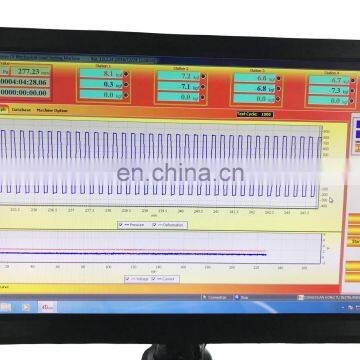

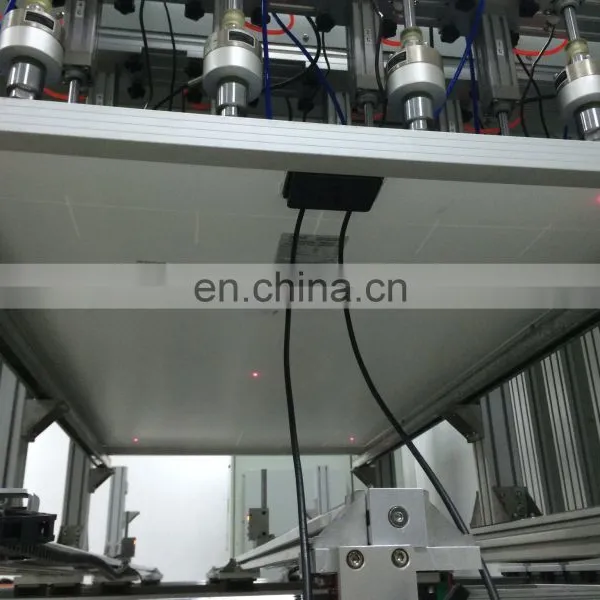

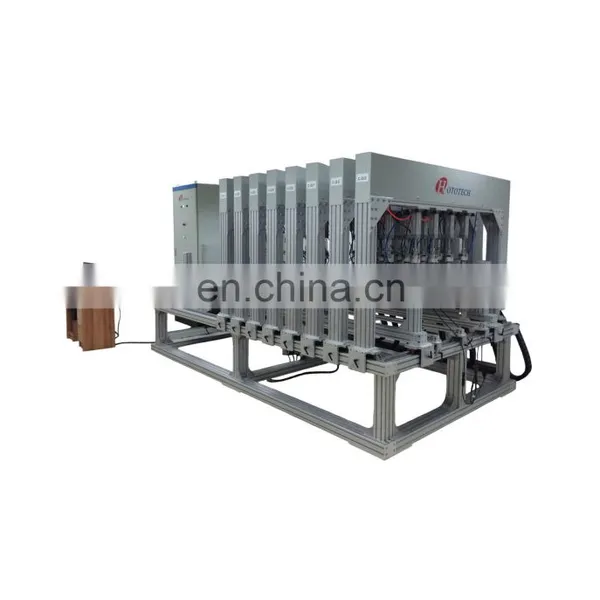

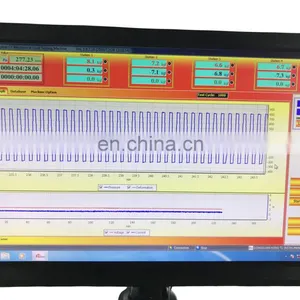

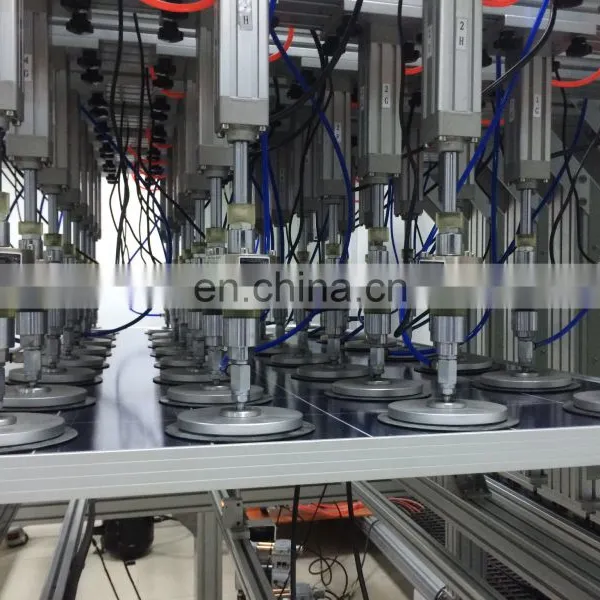

Tester image

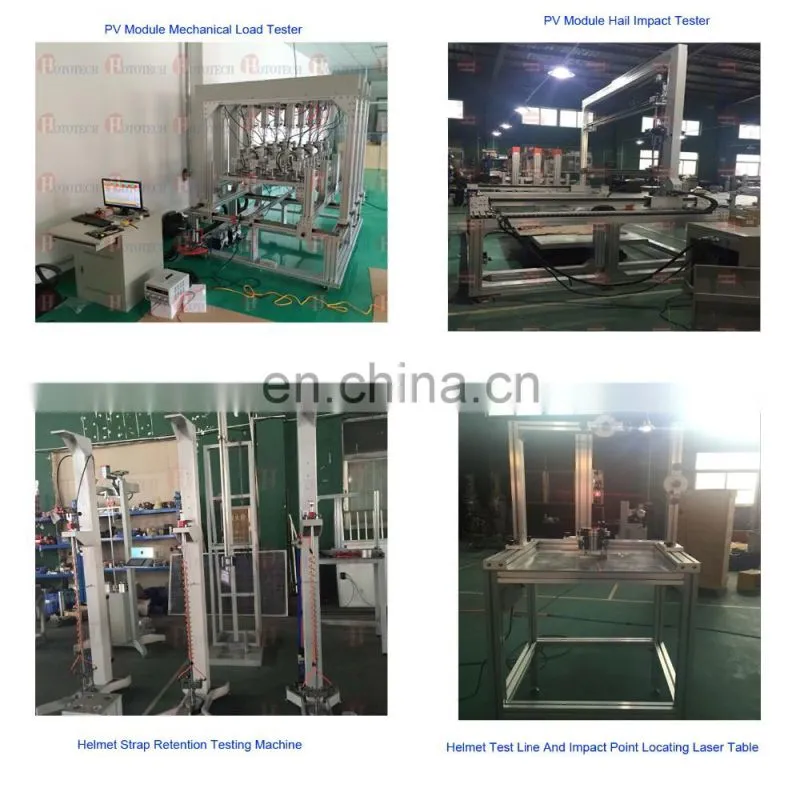

Products show in our workshop
FAQ
Q: Are your company a trading or factory ?
A: Factory +Trade (integration) , 8 years focusing n test machines field and exporting experience , OEM also acceptance for us
Q: After an order is placed , when to deliver
A: Generaly about 30 work days
Q: Do you have any certificate about your factory ?
A: We are already got SGS , ISO 9001 and some testing machine's patent certificate
Q: What about the Warranty with after-sales service ?
A : We have one year warranty time , when the testing machine have problems and the customer notice us
We received the customer problems feedback ,we will reply and help customer to solve the problem at first time
Q: How about your testing machine's data accurate ?
A: About our testing machine's data accrate, customers can be assured, because many government's lab by our factory help to plan and established
