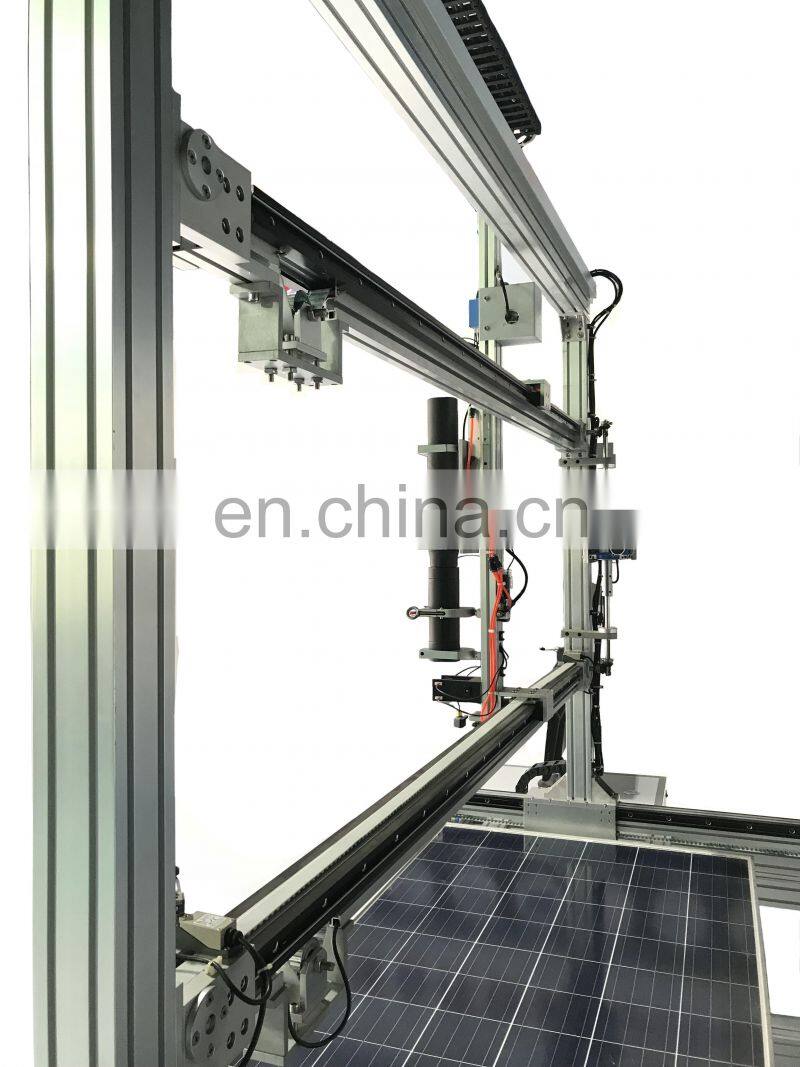

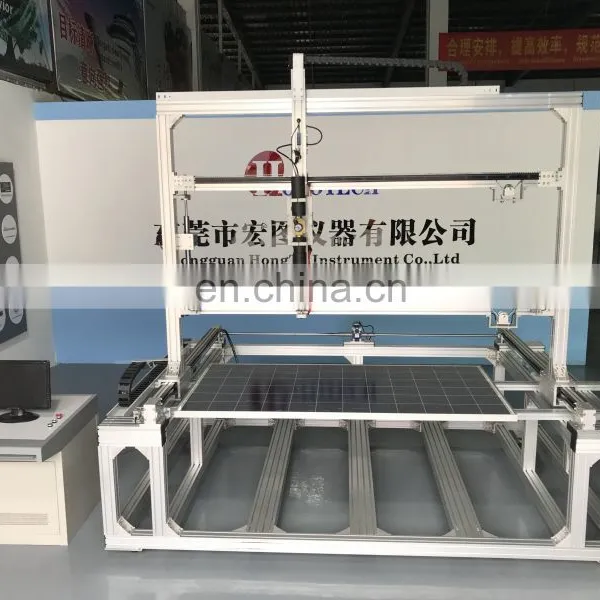

PV Module Hail Tester /Solar Panel Testing Machine / Solar Panel Ice Ball Impact Testing Equipment

PV Module hail tester /Solar panel testing machine / Solar panel ice ball impact testing equipment

standard

According to IEC61215,UL1703

purpose

use to verification module resistance impact ability , artifical hockey use to simulate hail , and to the constant speed impact component , simulate hail climate against component effect

specifications

1.Effective impact area:1200 * 2100mm

2.Standard hail diameter:25mm±5%

3.Standard hail mass:7.53g±5%

4.Hail setting speed:23.0m/s±5%

5.Speed measurement accurate :±2%

6.Hail mass measurement accurate:±2%

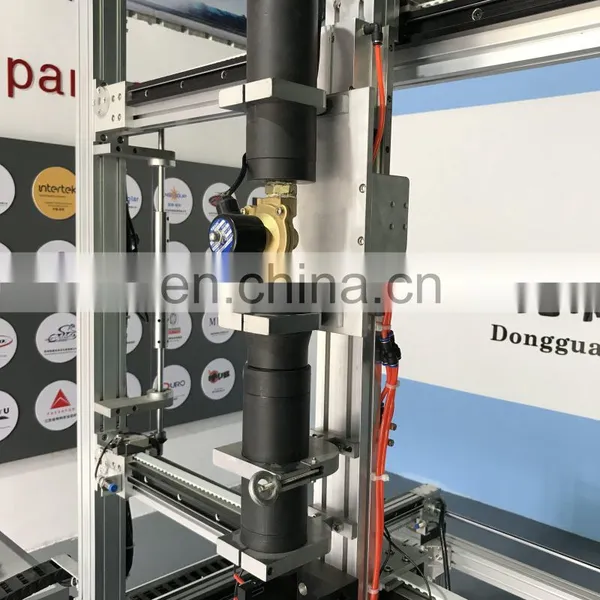

7.Pneumatic shoot system

8.Main function:

8.1,Chinese operate interface,setting impact position ,impact speed , hail reference ,time etc

     reference.

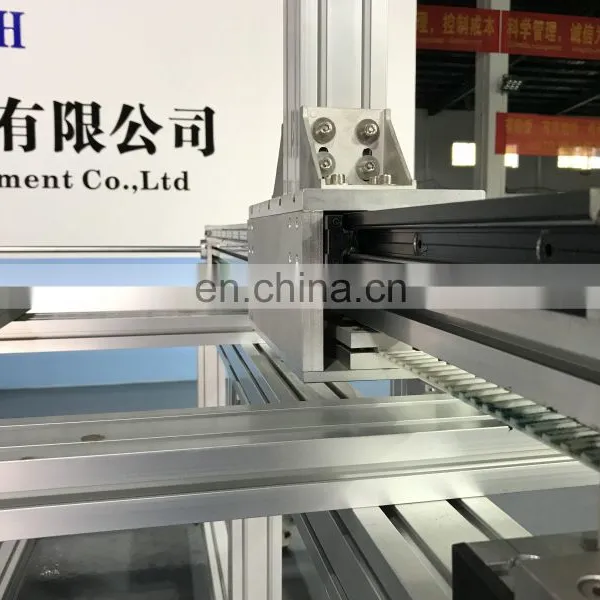

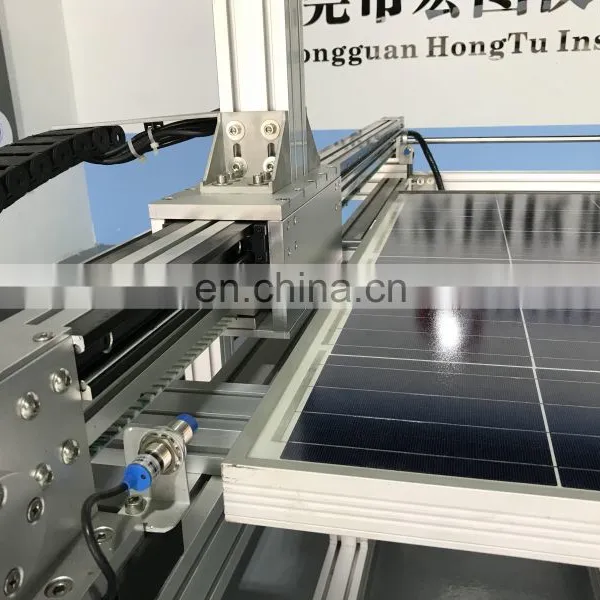

8.2,two dimension stepping driving system , the interface can setting the displacement

8.3,can programme control automatic being multipoint impact test

8.4,the hail shoot speed through compression air’s pressure adjust

   8.5,light spot fixed point collimation function ,convenience to ensure impact point position


  Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines

  We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit

  Please feel free to contact us for any enquires from our wide range of products
