New Design Measuring Meter With Best Perforance
US$ 1,000 - 1,200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
SIMCO
Model Number:
FMX-003
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Style Static Field Testing Instrument With Cheaper PriceUS$ 1,000 - 1,200MOQ: 1 Piece -
Hot Selling Static Field Testing Instrument With Good QualityUS$ 1,000 - 1,200MOQ: 1 Piece
-
2014 Static Tester With Good QualityUS$ 250 - 280MOQ: 1 Set
-
EST101 Static Tester With Good QualityUS$ 250 - 280MOQ: 1 Set
-
Shen Zhen Digital Static Multimeter With Cheaper PriceUS$ 250 - 280MOQ: 1 Set
Place of Origin
Japan
Brand Name
SIMCO
Model Number
FMX-003
Specifications
It is a non-contact measuring instrument,Shell for antistatic material, and has the grounding clasp,ensure accurate result.
Product Description

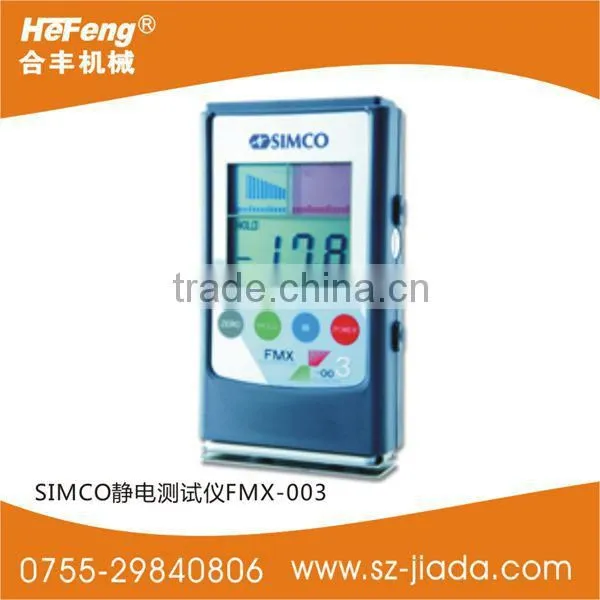

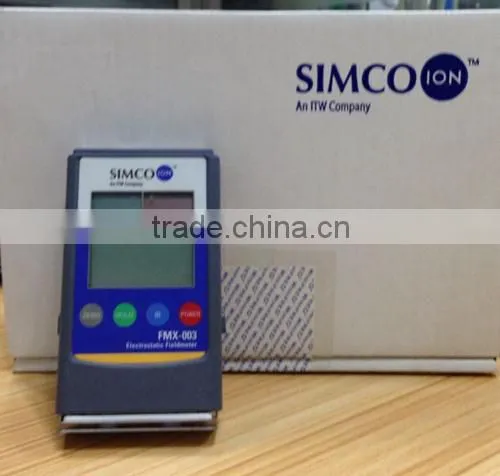

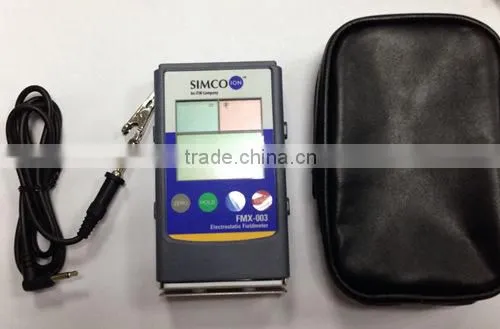

SIMCO FMX-003 Electrostatic field meter
specification
| MODEL | FMX-003 |
| input voltage | 9V,6F22Y manganese battery |
| electrostatic field | +/-(.00-20.0KV)(automatic display adjustment) |
| standard range | 25mm +/- 0.5mm |
| ion balance measurement |
+/-(0-200v)According to the measured distance ESD-STM3,1-2000lonization standard |
| reacting time | <1second |
| LED display undate | 5 times/second |
| accurancy | +/-10% |
| Working temperature and humidity | 10-40 deg C/RH:0-60% |
| Graphical display | positive:red/negitive:blue |
| date display | electrostatic field(1):+/- X.XX(0.00KV-1.49KV) |
| electrostatic field(2):+/- X.XX(1.0KV-20.0KV) | |
| ion balance:+/-XXX(0-200V) | |
| [IB]ion balance measurement mode | |
| [HOLD]-display lock | |
| [A.OFF]-Automatic shutdown function | |
| [ERR]-the inside sensors break down | |
| audible alarm |
start/automatic shut down and stop function / Idle automatic shutdown / measurement beyond the scope |
| automatic shutdown | idle for about 5 minutes |
| 0.17kg/12.3cm×7.3cm×2.5cm(the battery/ion balance measuring plate) | |
| package | Conductive Resin(ABS) |
Method of use
1, electrostatic voltage measurements: press start switch, two test light lighted, as long as the two lights on the measured object, two overlapping images for the best.
2, if you want to lock in measuring values, press the lock switch. Again after the second measurement to press the zero key measurements.
3, to measure the ion balance to mount ion balance when measuring plate, press and hold the disassembling button on both sides of the instrument to tear open outfit.
4, press start switch can turn it off.
5, can't crash the machine, easy to cause damage of sensing head.cv b c ccv
1, electrostatic voltage measurements: press start switch, two test light lighted, as long as the two lights on the measured object, two overlapping images for the best.
2, if you want to lock in measuring values, press the lock switch. Again after the second measurement to press the zero key measurements.
3, to measure the ion balance to mount ion balance when measuring plate, press and hold the disassembling button on both sides of the instrument to tear open outfit.
4, press start switch can turn it off.
5, can't crash the machine, easy to cause damage of sensing head.cv b c ccv
