Solar panel hail impact machineimpigement testing machcinelash testing equipment with IEC61215-22016 standard
standard
According to IEC61215,UL1703
purpose
To verify that the module is capable of withstanding the impact of hailstones
specification
1.Effective impact area:1200 * 2100mm

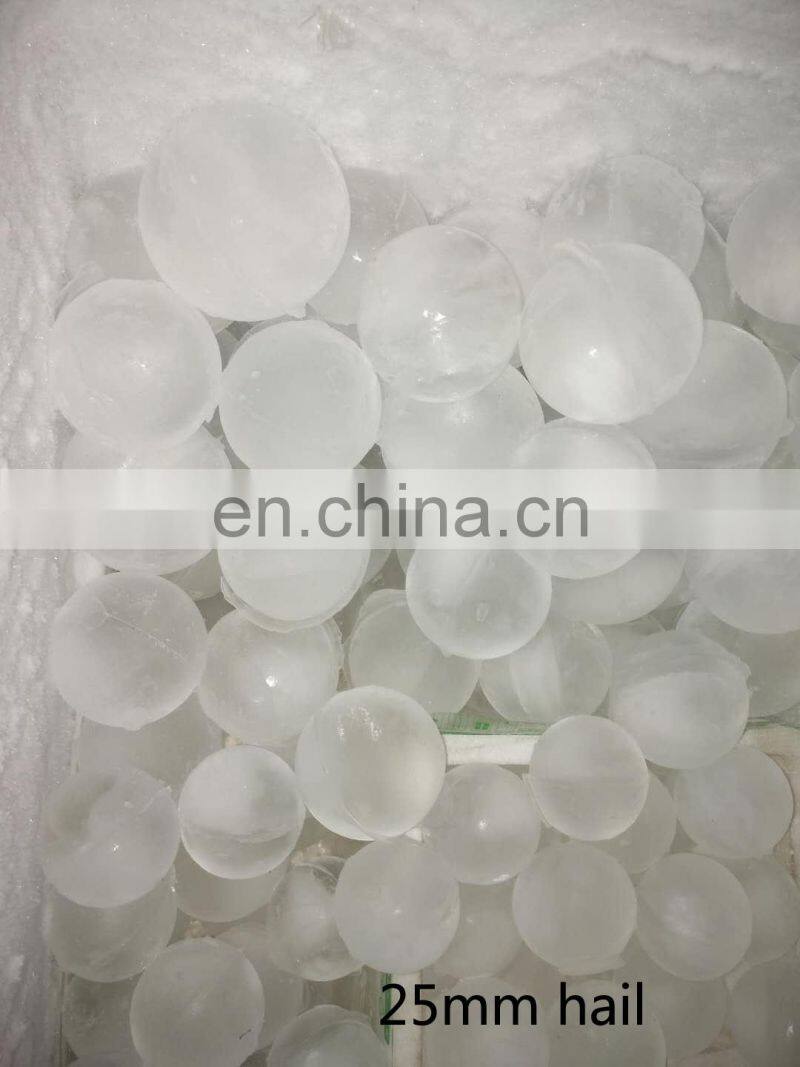

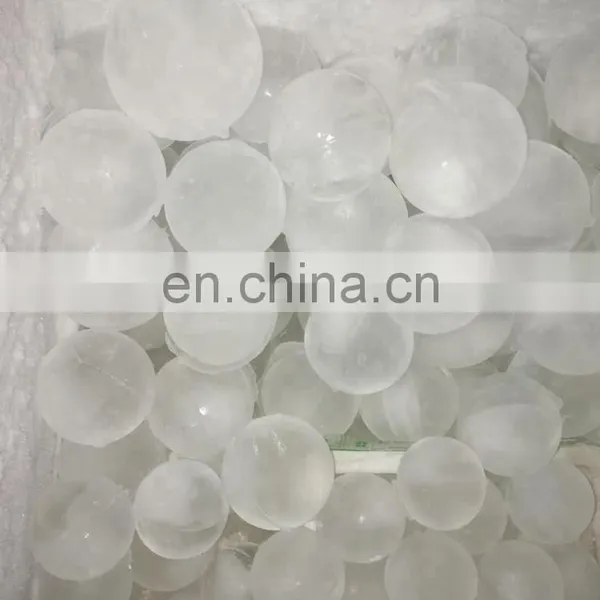

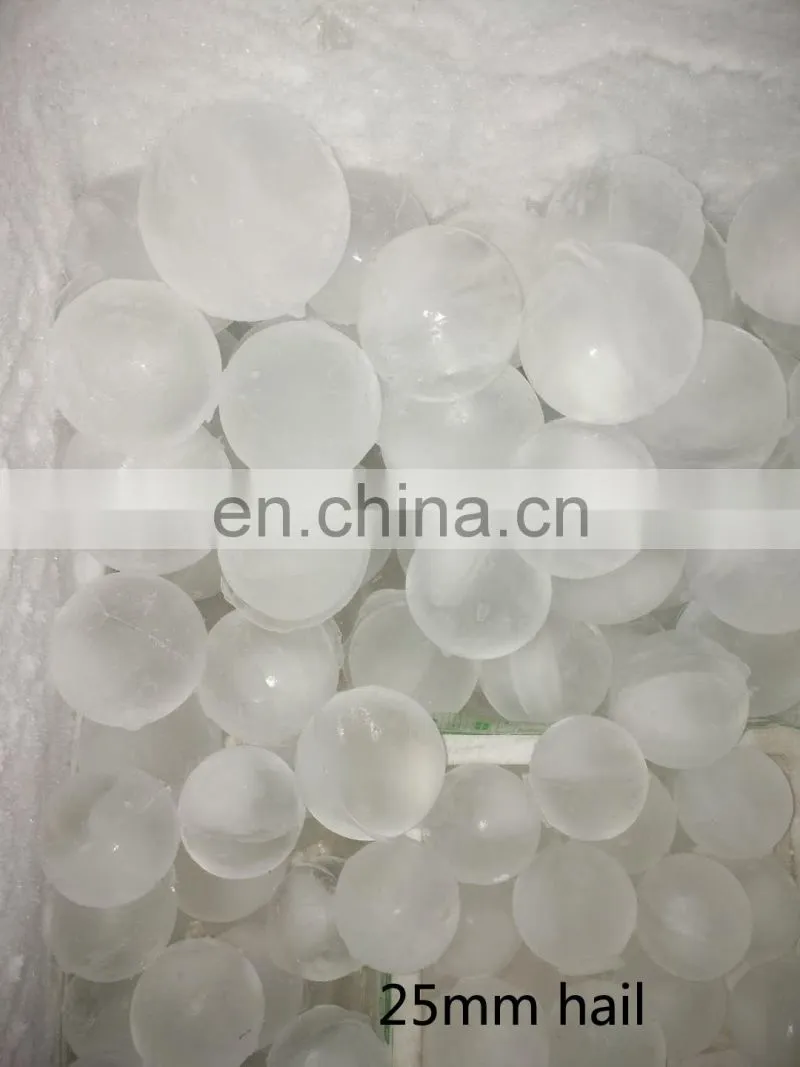

2.Standard hail diameter:25mm±5%
3.Standard hail mass:7.53g±5%
4.Hail setting speed:23.0m/s±5%
5.Speed measurement accurate :±2%
6.Hail mass measurement accurate:±2%

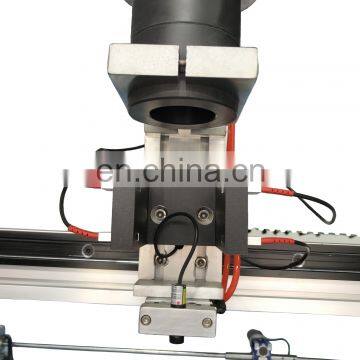

7.Pneumatic shoot system
8.Main function:
8.1,Chinese operate interface,setting impact position ,impact speed , hail reference ,time etc
reference.
8.2,two dimension stepping driving system , the interface can setting the displacement
8.3,can programme control automatic being multipoint impact test
8.4,the hail shoot speed through compression air’s pressure adjust
8.5,light spot fixed point collimation function ,convenience to ensure impact point position

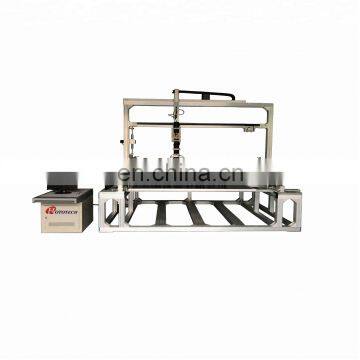

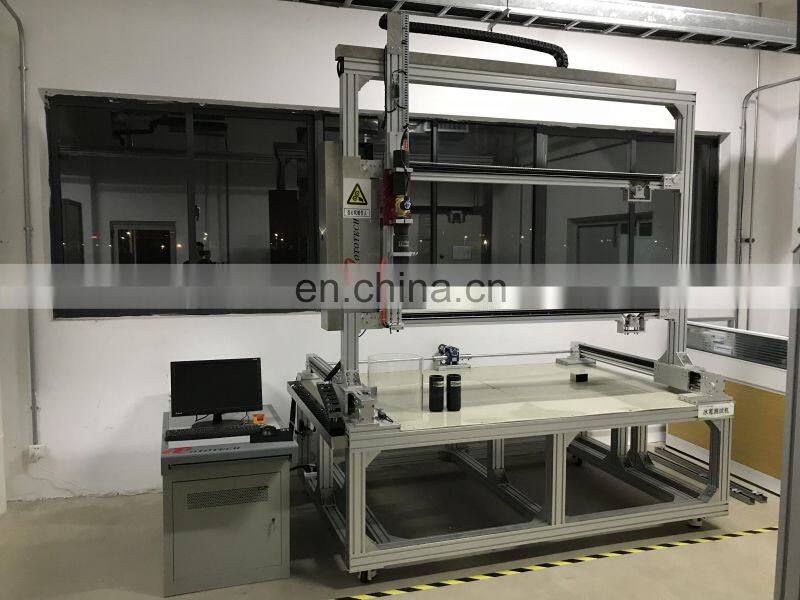

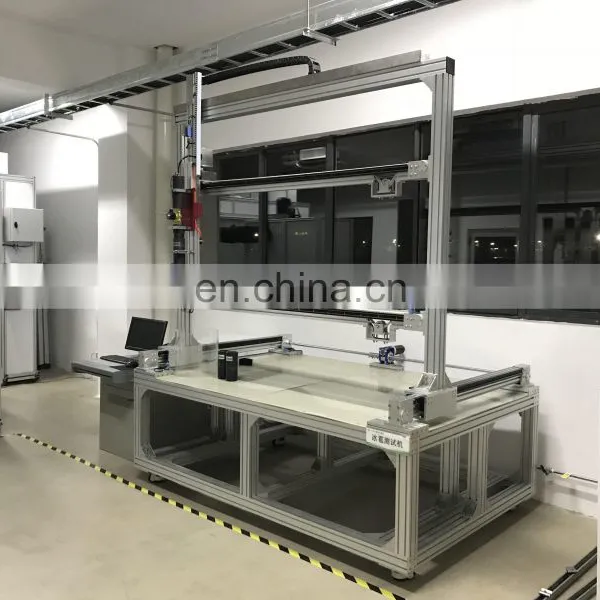

Testing machine image
Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
