Dynamic Mechanical Load testing machineDynamic pressure strength testing equipmenttesting apparatus for pv module
purpose
This test is to determine the ability of the module to withstand wind , snow , staitc or ice loads
standard
According to IEC 61215,UL1703,IEC 61646
specifications
1.Machine table exterior size:L 320 × D 180 × H 195 cm
2.Test positive load the max 5400 Pa,negative load the max 24 00 Pa
3.Aluminum extrusion structure , platform and support under the test suffer the force statue not deformation ( aluminum surface with the paint dealing , ensure its not discolor)
4.Customization test platform clamp , can according to the pending specimen install method to do the adjust )
5.The max test size 120 × 240cm
6 . Calibrator: 350 kg
7 .DC constant voltage and current power :0~100Vor 0~15A adjustable; the resolution 0.001V or 0.001A
the voltage setting accurate more than 0.1V,current setting value accurate more than 0.1A
8..Cylinder number:4 groups, in total 8 pcs
Cylinder outside diameter 80mm
Pneumatic cylinder single the max pressure > 6 bar
Pneumatic cylinder single group the max put out force > 300 kg
Pneumatic cylinder stretch stroke:150 mm
9.sucker number 8 groups , in total 32 PCS
Sucker diameter:120 mm
Every pneumatic attach a vacuum pressure monitor
Between the two suckers mid point spacing can adjust 120mm~ and 400mm

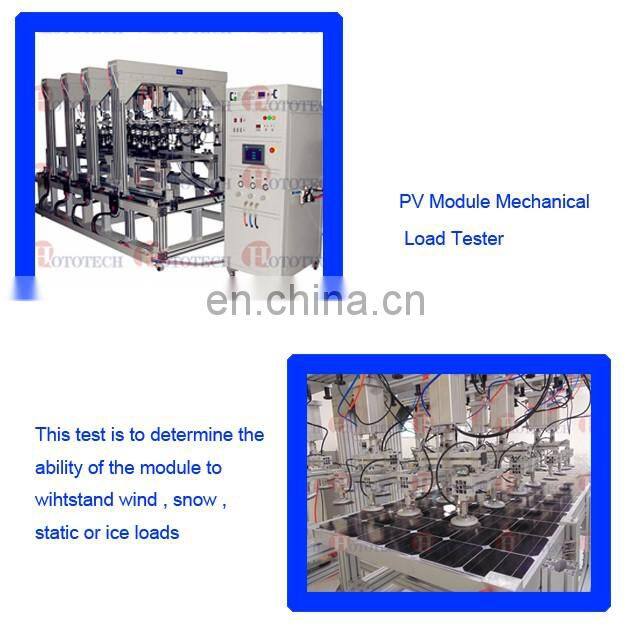

testing machine image
Products show in our workshop
P
Dynamic Mechanical Load Tester's details picture
Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
