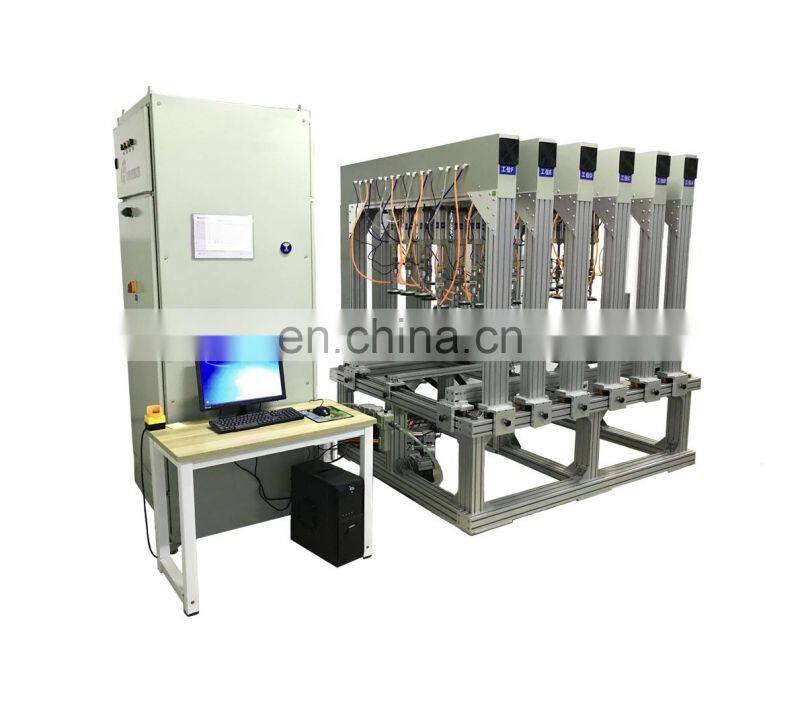

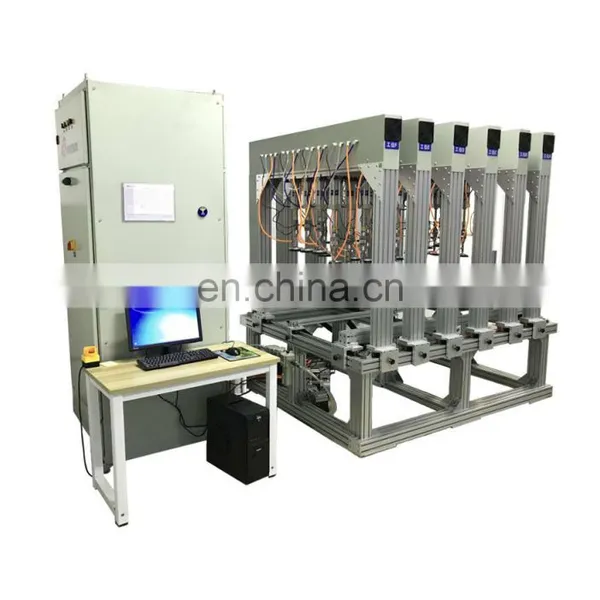

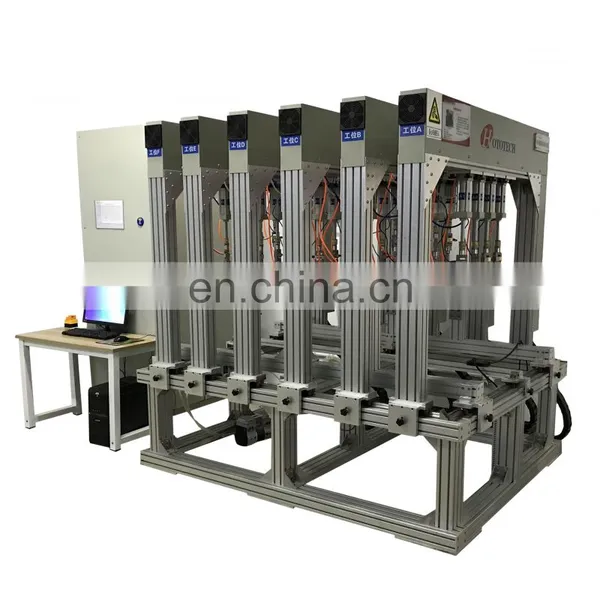

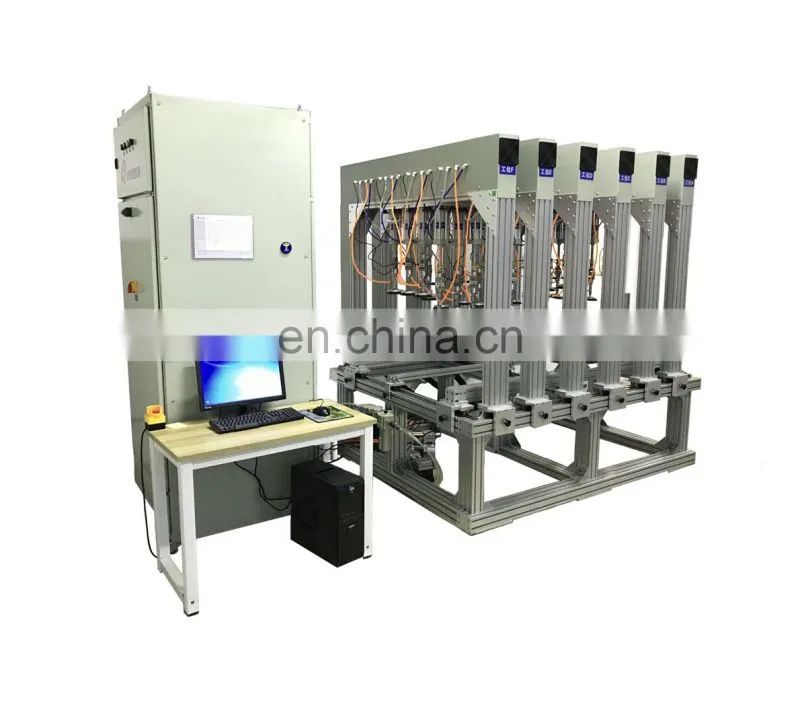

IEC61215-2:2016 the Newest Standard Dynamic Mechanical Load Tester /Testing Machine for PV Module
US$ 1,200 - 1,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-08AB
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dynamic Mechanical Load Testing Machine/Dynamic Pressure Strength Testing Equipment/testing Apparatus for pv ModuleUS$ 40,000 - 45,000MOQ: 1 Set -
PV Module Static Mechanical Load Tester/PV Module High Uniformity Staitc Mechanical Load Tester/ Solar Panel Testing MachineUS$ 1,500 - 1,800MOQ: 1 Set
-
Static Mechanical Load Testing Machine/Dynamic Mechanical Load Tester /PV Module Testing MachineUS$ 41,176.47 - 47,058.82MOQ: 1 Set
-
Solar Panel Mechanical Load Tester /PV Module Static Load Testing Machine / Testing Equipment for IEC61215-2:2016 StandardUS$ 60,000 - 80,000MOQ: 1 Set
-
IEC 61215 Standard Solar Panel Dynamic Static Mechanical Load Testing Machine/PV Module Testing MachineUS$ 36,764.71 - 47,058.82MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-08AB
Power
Electronic
Product Description
IEC61215-2:2016 the newest standard Dynamic Mechanical Load tester /Testing machine for PV module
standard
According to IEC 61215,UL1703,IEC 61646
purpose
verification and ensure component under the different install angle suffer wind ,snow,or cover ice
etc static ,dynamic load ability.width use to check PV component resistance press strength test ,
adopt dynamic holding press technical , simulate load test, in order to products under the load statue
resistance press ability.
The Main technical parameter
| Product Name | Dynamic Mechanical Load tester /Testing machine for PV module |
| Machine table size | L 320 × D 180 × H 195 cm |
| Test positive load | The max 5400 Pa |
| Negative load | The max 24 00 Pa |
| Material | Aluminum extrusion structure , platform |
| Cycle times | Free setting |
| Dynamic load test frequency | 7s±3s |
| Dynamic load | 1000pa, 1000times |
| Pressure control accurate | 5% |
| pneumatic and force value feedback ways | low friction force cylinder, tensile pressure sensor |
| Testing sampling size | 2000mm×1000mm (can customized) |
| Current continuity system | DC power, DC 150V/2A, real-time monitor module inner current continuity |
| Cyliner | 4 groups , in total 8 pieces |
| Single cylinder the maximum output | 200kg |
| Cylinder telescopic stroke | 125mm |
| Sucker | 8 groups , in total 32 pieces |
| Sucker diameter | 120mm |
| Sucker (with cylinder) space horizontal and vertical | ≤200mm |
| Sucker angle | can rotation 15° |
| Control ways | Computer control |
| Interface display | Computer with real-time curve display |
| Fault function | Fault alarm function |
