China Factory Supply Hydraulic Brake Match With Air Oil Booster
- Shanghai
- T/T L/C Credit Card Other Cash
You May Like
Product Details
| Brand Name | Handong HD | Place of Origin | China | |
| Model Number | DBM 10, DBM 20 |
Product Description
China factory supply hydraulic brake match with air oil booster

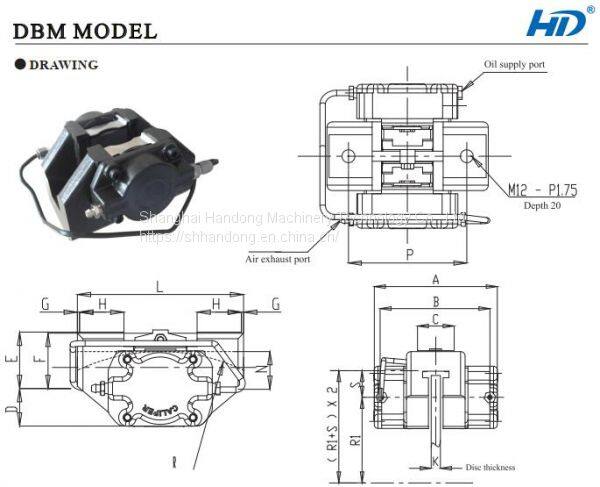

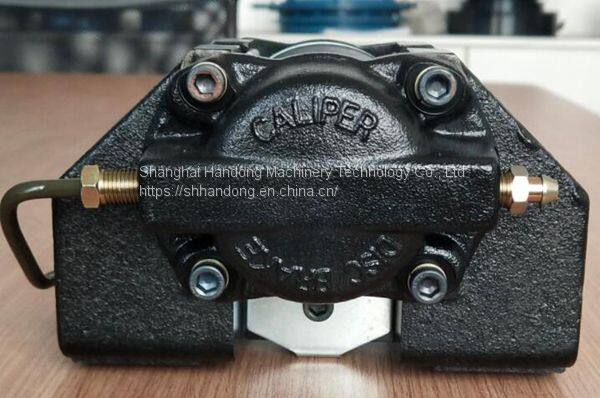

Handong made DBM hydraulic brake is driven by hydraulic oil, it is usually match with air oil transform booster. This brake is better to use standard braking oil DOT3, DOT4 or above.This hydraulic disc brake can be used in dry and oil working situation.
DBM hydraulic caliper disc brake has two types, right "R" and left "L". So when you order this product, please indicate which type you need in advance. DBM10R, DBM20R means the oil source is input through right side, DBM10L, DBM20L means the oil source is inputting through left side.

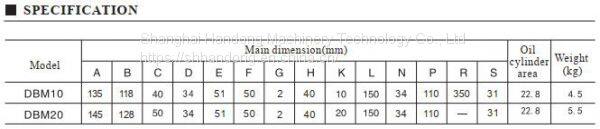

Before connecting with BST air oil amplify booster, this brake's technical data as below:
BST hydraulic booster is driven by air pressure, after inputting air pressure, it will transform the air pressure to oil pressure for hydraulic caliper disc brake, so as to enhance brake's braking force in twice or quadruple.

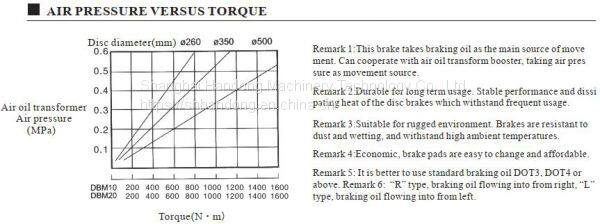

If DBM10 or DBM20 connected with BST-2 hydraulic booster, its braking torque is as following:
As we know, many suppliers' hydraulic brake will leak oil, our hydraulic brake's components are imported from abroad with good quality, so its sealling effect is superior, will not leak oil during usage.
