Small caliper disc brake DBF-10 for wire and cable machine
Steel material pneumatic caliper disc brake is a small caliper disc brake. When there is no air source input, this brake is releasing, after supplying air pressure, this brake's up & down braking pads forward and clamp braking disc for stopping.

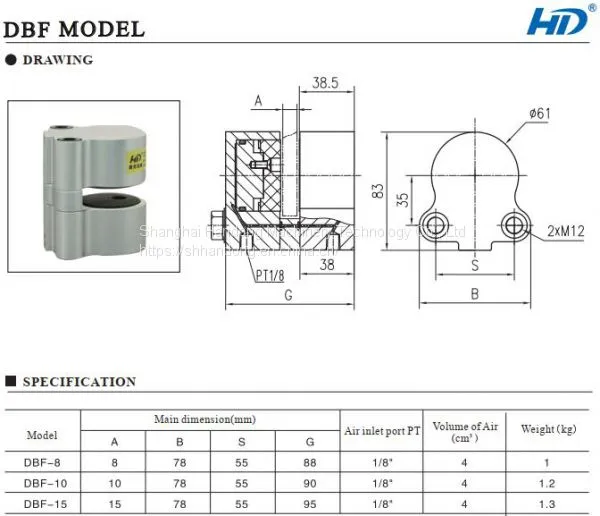

This brake with easy structure, it is simple installation and usage. After fixed it in workplate, inputting air pressure, it can be used. This is the structure if it:
This caliper disc brake is widely applied in rubber tire machine, flexo machine, wire winch machine, wire and cable machine, packing machine, printing machine and etc.

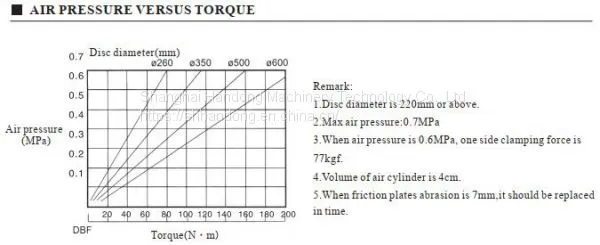

This small pneumatic caliper disc brake has three models: DBF-8, DBF-10, DBF-15. They are suitable for clamping steel plate thickness is 8mm, 10mm and 15mm in separately. The plate diameter is 220mm or larger, when the disk diameter is 260mm, air pressure is 0.6Mpa, they can produce braking torque is 80N.m. When disk diameter is 350mm, DBF-8, DBF-10, DBF-15 creat braking force is 110N.m. That is to say, in the same air pressure, braking disc diameter larger, this DBF caliper disc brake will making larger braking force in relevantly.
