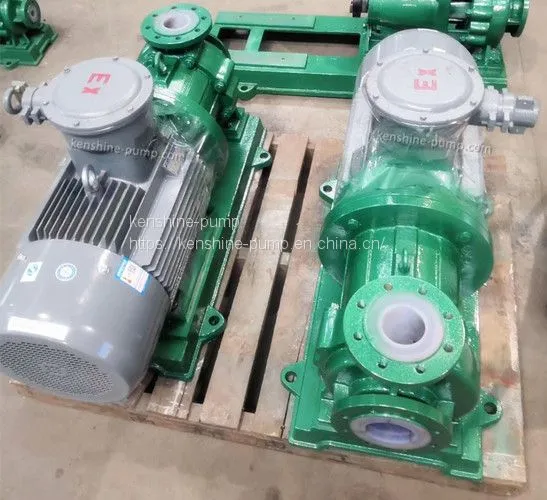

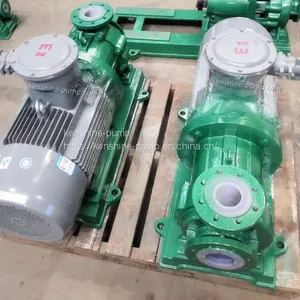

Help CenterCQF Engineering Plastic Magnetic Pump
Related Products
-
CQ Magnetic Centrifugal Transfer PumpUS$ 320 - 2000MOQ: 1 Set -
CQB-F Fluoroplastic Lining Magnetic PumpUS$ 650 - 3000MOQ: 1 Set
-
ZBF Self Priming Magnetic Coupling Plastic PumpUS$ 540 - 3000MOQ: 1 Set
-
ZCQ Stainless Steel Self Priming Magnetic Chemical PumpUS$ 500 - 5000MOQ: 1 Set
-
IMC Stainless Steel Magnetic Chemical Process PumpUS$ 950 - 6000MOQ: 1 Set
CQF engineering plastic magnetic pump is the application of modern magnetics principles. The working principle of magnetic couplings is used into the centrifugal pump as the magnetic pump. Magnetic pump is with static seal instead of dynamic seal so as to make the flow components of pump be in a completely sealed state ,further to completely solve the problem of leakage from mechanical seal..
CQF engineering plastic magnetic pump is made of reinforced polypropylene engineering plastic (with corrosion resistance, high strength), steel ceramics, stainless steel etc. materials, so it has a good corrosion resistance and can make the transport medium away from pollution.
CQF engineering plastic Magnetic pump has compact structure, beautiful appearance, small volume, low noise, reliable operation, easy to use and maintain.
It can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, national defense, scientific research institutions, metallurgy, dye and other units. CQF engineering plastic magnetic pump is widely used to convey acid, alkali, oil etc. rare and precious liquid, venom, volatile liquid, as well as circulating water equipment, filter equipment. CQF magnetic pump is especially suitable for the liquids which is easy to leak, flammable, explosive etc. transportation. The pump driven by the explosion-proof motor is more ideal equipment.. (pump material: reinforced polypropylene)
Model meaning:
CQF type engineering plastic magnetic pump
CQF 50-25
50- inlet diameter (mm)
CQF- engineering plastic magnetic drive pump
25 - head (m)
| Model | Caliber | Flow (m3/h) | Head (m) | Motor power (kW) | Voltage | |
| Inlet (mm) | Outlet (mm) | (V) | ||||
| 10CQF-3 | 10 | 8 | 0.9 | 3 | 0.01 | 220 |
| 14CQF-5 | 14 | 10 | 1.2 | 5 | 0.12 | 220/380 |
| 16CQF-8 | 15 | 15 | 1.5 | 8 | 0.12 | 220/380 |
| 20CQF-12 | 25 | 18 | 3 | 12 | 0.37 | 220/380 |
| 25CQF-15 | 25 | 20 | 6.6 | 15 | 1.1 | 380 |
| 32CQF-15 | 32 | 25 | 6.6 | 15 | 1.1 | 380 |
| 32CQF-25 | 32 | 25 | 6.6 | 25 | 1.1 | 380 |
| 40CQF-20 | 40 | 32 | 10.8 | 20 | 2.2 | 380 |
| 50CQF-25 | 50 | 40 | 14.4 | 25 | 3 | 380 |
| 50CQF-32 | 50 | 40 | 13.2 | 32 | 4 | 380 |
| 65CQF-25 | 65 | 50 | 25 | 25 | 5.5 | 380 |
| 65CQF-32 | 65 | 50 | 25 | 32 | 5.5 | 380 |
