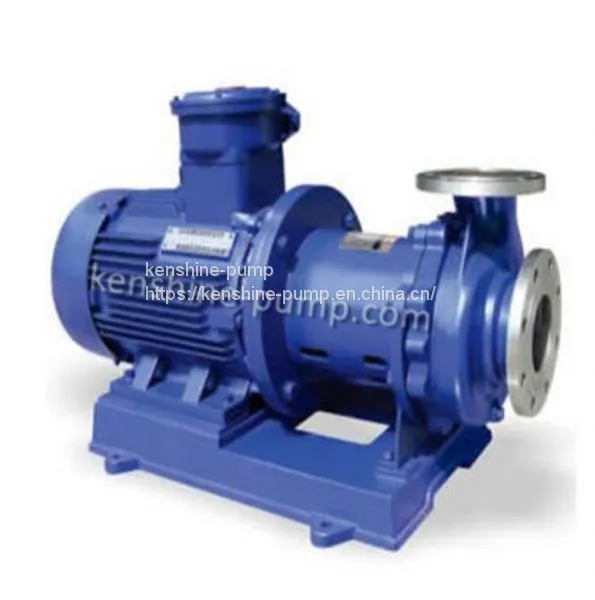

Stainless steel magnetic centrifugal pump
The wet parts of this pump are made of full stainless steel material to perform outstanding corrosion resistance to organicacid,organic compound,alkali,neutral solution and a great many of gases. double helix carbon graphite bearing and hard alloy bearing are provided with good abrasion-resisting property to ensure the service life of product.It is an optimal pump for handling corrosive mediums without leakage.
Material of wet parts:stainless steel
Connecting types: flange and pipe
Flow:1.9-120m3/h
Head:20-80m
Power:0.75-75KW
Kinematic viscosity of medium: ≤30*10-6m3/s
Medium temperature:-20 to 100 degree celsius
Parameter:
Model |
Flow（Q） |
Head（H） |
Speed (n) |
Effic. |
Motor type |
Power |
m3/h |
m |
rpm |
% |
kw |
||
CQB32-20-125 |
3.2 |
20 |
2900 |
35 |
YB802-2 |
1.1 |
CQB32-20-160 |
3.2 |
32 |
2900 |
35 |
YB90S-2 |
1.5 |
CQB40-25-105 |
6.3 |
12.5 |
2900 |
45 |
YB802-2 |
1.1 |
CQB40-25-125 |
6.3 |
20 |
2900 |
42 |
YB90L-2 |
2.2 |
CQB40-25-160 |
6.3 |
32 |
2900 |
35 |
YB100L-2 |
3 |
CQB40-25-200 |
6.3 |
50 |
2900 |
28 |
YB132S1-2 |
5.5 |
CQB50-40-85 |
12.5 |
8 |
2900 |
56 |
YB802-2 |
1.1 |
CQB50-32-105 |
12.5 |
12.5 |
2900 |
54 |
YB90L-2 |
2.2 |
CQB50-32-125 |
12.5 |
20 |
2900 |
50 |
YB100L-2 |
3 |
CQB50-32-160 |
12.5 |
32 |
2900 |
46 |
YB112M-2 |
4 |
CQB50-32-200 |
12.5 |
50 |
2900 |
39 |
YB132S2-2 |
7.5 |
CQB50-32-250 |
12.5 |
80 |
2900 |
30 |
YB160L-2 |
18.5 |
CQB65-50-125 |
25 |
20 |
2900 |
58 |
YB132S1-2 |
5.5 |
CQB65-50-160 |
25 |
32 |
2900 |
56 |
YB132S2-2 |
7.5 |
CQB65-40-200 |
25 |
50 |
2900 |
49 |
YB160M-2 |
15 |
CQB65-40-250 |
25 |
80 |
2900 |
46 |
YB180M-2 |
22 |
CQB80-65-125 |
50 |
20 |
2900 |
66 |
YB132S2-2 |
7.5 |
CQB80-65-160 |
50 |
32 |
2900 |
64 |
YB160M-2 |
15 |
CQB80-50-200 |
50 |
50 |
2900 |
60 |
YB160L-2 |
18.5 |
CQB80-50-250 |
50 |
80 |
2900 |
55 |
YB200L1-2 |
30 |
CQB100-80-125 |
100 |
20 |
2900 |
72 |
YB160M-2 |
15 |
CQB100-80-160 |
100 |
32 |
2900 |
70 |
YB160M-2 |
22 |
CQB100-65-200 |
100 |
50 |
2900 |
68 |
YB200L1-2 |
30 |
CQB100-65-250 |
100 |
80 |
2900 |
64 |
YB225M-2 |
45 |
