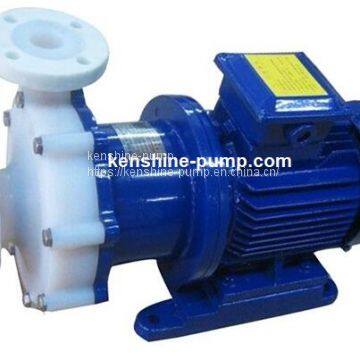

Perfluorinated plastic magnetic pump
CQB-F perfluorinated plastic magnetic pump has the pump inlet and outlet less than DN65mm. It adopts magnetic coupling driving and there is no dynamic sealing. Therefore, it solves the phenomenon of running, blowing, dropping and leakage at shaft seal of general shaft driven centrifugal pump.
The flow components of CQB-F fluoroplastic magnetic pump are made of fluoroplastics and high purity industrial ceramics, with corrosion resistance and sealing. CQB-F fluoroplastic magnetic pump has no mechanical shaft seal and no leakage. For pump inlet and outlet more than 50mm,such as DN65,DN80,DN100 etc, the flow components are made of fluoroplastic, ceramics, fluororubber and other materials. The pump body is fixed with metal materials, so the pump body is sufficient to support the weight of the pipeline and easy to use and maintain.
Features:
The magnetic pump has the advantages of corrosion resistance, no leakage, compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient operation.
Application
CQB-F series fluoroplastic magnetic pump is used in petroleum, chemical industry, metallurgy, pharmacy, electroplating, environmental protection, and other industries. It can transport strong acid, strong alkali, strong oxidation, inflammable, explosive, highly toxic and precious liquids.
| MODEL | Q(m3/h) | H(m) | Efficiency(%) | NPSH(m) | inlet*outlet (mm) | motor power(KW) | Weight(kg) | Speed(rpm) |
| CQB16-12-50F | 0.6 | 2 | 8 | 9 | 16*12 | 0.025 | 5 | 2900 |
| CQB15-15-65F | 0.8 | 3.2 | 16 | 6 | 15*15 | 0.18 | 7 | 2900 |
| CQB20-15-75F | 1.6 | 7 | 22 | 6 | 20*15 | 0.18 | 8 | 2900 |
| QB25-20-100F | 1 | 10.5 | 25 | 6 | 25*20 | 0.37 | 12 | 2900 |
| CQB32-20-110F | 4 | 13.5 | 30 | 6 | 32*20 | 0.55 | 18 | 2900 |
| CQB40-25-120F | 6.3 | 15 | 42 | 5 | 40*25 | 0.75 | 35 | 2900 |
| CQB40-40-100F | 6 | 11 | 43 | 5 | 40*40 | 0.55 | 20 | 2900 |
| CQB40-40-125F | 6.5 | 17.5 | 42 | 3.7 | 40*40 | 1.1 | 40 | 2900 |
| CQB40-25-160F | 5 | 33 | 45 | 3.5 | 40*25 | 3 | 72 | 2900 |
| CQB50-32-125F | 7 | 22 | 28 | 3.5 | 50*32 | 1.5 | 45 | 2900 |
| CQB50-32-160F | 7 | 28 | 28 | 3.5 | 50*32 | 4 | 80 | 2900 |
