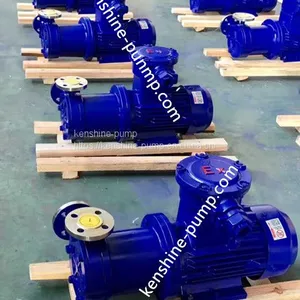

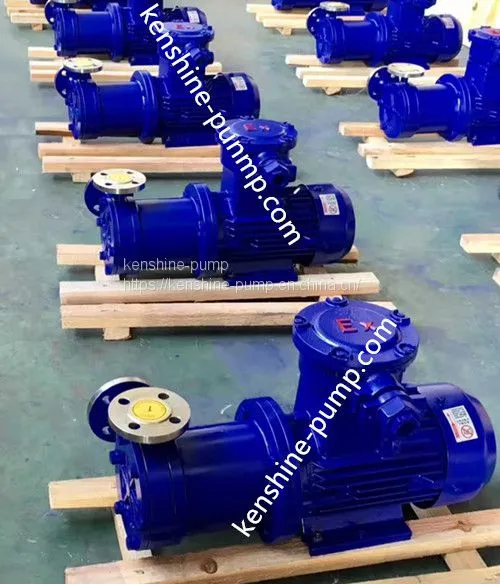

CQW magnetic coupling vortex pump
CQW magnetic drive vortex pump adopts magnetic drive structure to ensure that the pump can be absolutely sealed to achieve no leakage to transport corrosive, flammable, explosive, highly toxic and other chemical media. The pump is made of stainless steel material.
Features
1, high head, small flow, specific revolution is generally less than 40
2. Simple structure, small volume and light weight
3. CQW magnetic driven vortex pump has self-lubricating circuit, which improves the service life of sliding bearing
4. Add a cooling loop to take away magnetic eddy current heat in time
5. CQW magnetic force driven vortex pump adopts cantilever blade to reduce radial force of impeller
6. The efficiency of CQW magnetically driven vortex pump decreases sharply with the increase of medium viscosity, so the medium viscosity should be no more than 5× 10-6 M 3 /S.
Application:
CQW magnetic driven vortex pump has compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient maintenance. It can be widely used in chemical industry, pharmacy, petroleum, electroplating, food, film photography, and scientific research institutions units and national defense industry etc. to pump acid, alkali liquid, oil, rare and precious liquid, venom, volatile liquid, as well as circulating water equipment and filter equipment.. It is especially for pump the liquids easy to leak, flammable, explosive liquid.
| Model | Q | H | Power | Speed | NPSHr |
| m3/h | m | kW | rpm | m | |
| CQW20-20 | 0.72 | 20 | 1.1 | 2900 | 6 |
| CQW20-40 | 0.72 | 40 | 2.2 | 2900 | 6 |
| CQW20-65 | 0.72 | 65 | 2.2 | 2900 | 6 |
| CQW25-25 | 1.44 | 25 | 1.5 | 2900 | 5 |
| CQW25-40 | 1.44 | 40 | 2.2 | 2900 | 5 |
| CQW25-65 | 1.44 | 65 | 2.2 | 2900 | 5 |
| CQW25-75 | 1.44 | 75 | 4 | 2900 | 5 |
| CQW32-30 | 2.88 | 30 | 3 | 2900 | 5 |
| CQW32-50 | 2.88 | 50 | 4 | 2900 | 5 |
| CQW32-75 | 2.88 | 75 | 7.5 | 2900 | 5 |
| CQW32-120 | 2.88 | 120 | 11 | 2900 | 4.5 |
| CQW40-40 | 5.4 | 40 | 5.5 | 2900 | 4 |
| CQW40-90 | 5.4 | 90 | 11 | 2900 | 3.5 |
