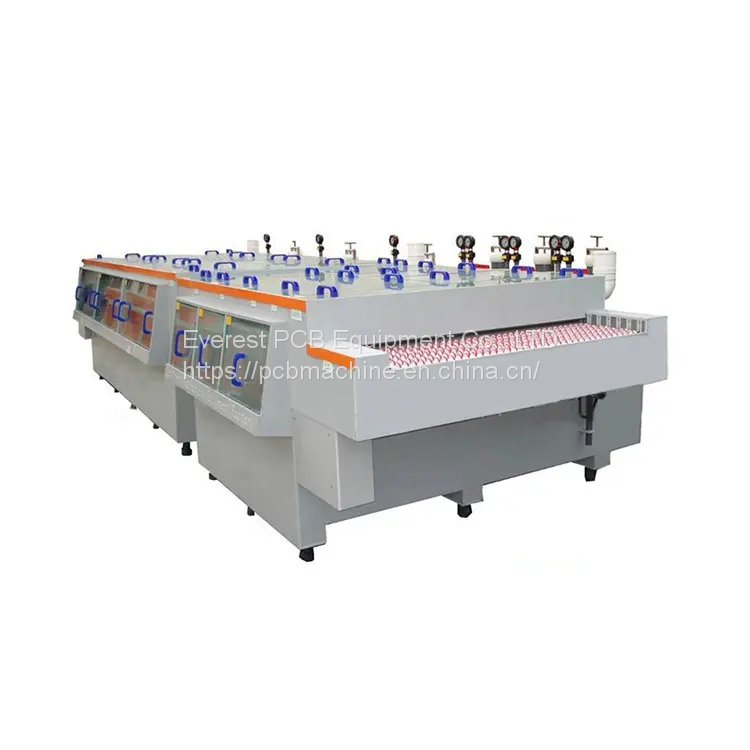

Help CenterBig Stainless Steel Elevator Pattern Plate Etching Machine
Related Products
-
PCB Dry Film Stripping MachineUS$ 25000 - 28000MOQ: 1 Set -
PCB HASL Pre Treatment of Hot Air Solder LevelingUS$ 27000 - 35000MOQ: 1 Set
-
Modular Type Automatic PCB Film Stripping MachineUS$ 25000 - 28000MOQ: 1 Set
-
Everest PCB Dry Film Developing Machine Easy to Operate Film DeveloperUS$ 25000 - 28000MOQ: 1 Set
-
PCB Soder Mask Developing MachineUS$ 25000 - 28000MOQ: 1 Set
Details Images
Products Description
Technical Date:
Model Number: |
EL1500 |
Etching liquid: |
Ferric chloride |
Dimension: |
1500×2500×1700mm |
Working width: |
650~1500mm |
Wheelbase: |
28mm 35mm 48mm 70mm |
Working speed: |
0.5~6m/min can be adjusted |
Supply voltage: |
Three phase four wire,380V/50Hz |
Main power: |
4KW |
Etching pressure |
2kg/square cm. |
Etching type: |
Horizontal stransfer with association |
Min work piece: |
300mm×300mm |
Working temperature |
0 to 55°C |
Highest Temperature |
70°C |
Control system:
Temperature control system
Pressure adjust system
Temperature control system
Net filter system
Water recycle system
Working process:
Feeding→ Etch(4m) → Pump rinse → ubrin water ranse → Strip(2m) → Pump ranse →→ Ubrin water rinse → Cool dry → Hot dry → Discharge.
Features:
1.Automatic operation and be very suitable for mass production.

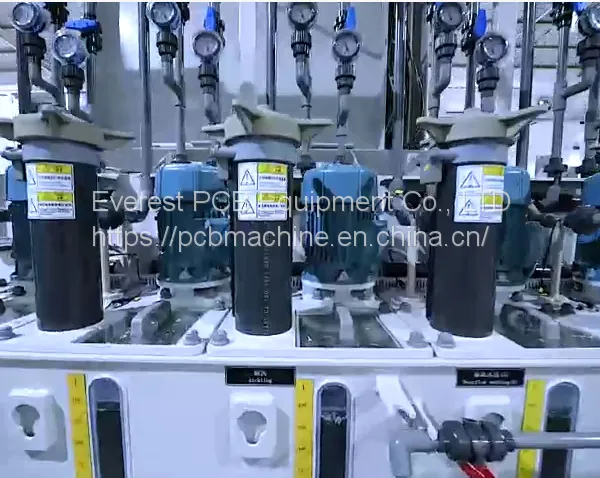

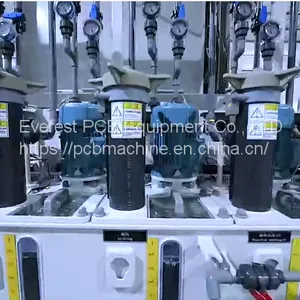

2.High quality stereo titanium pump, low trouble, high stability

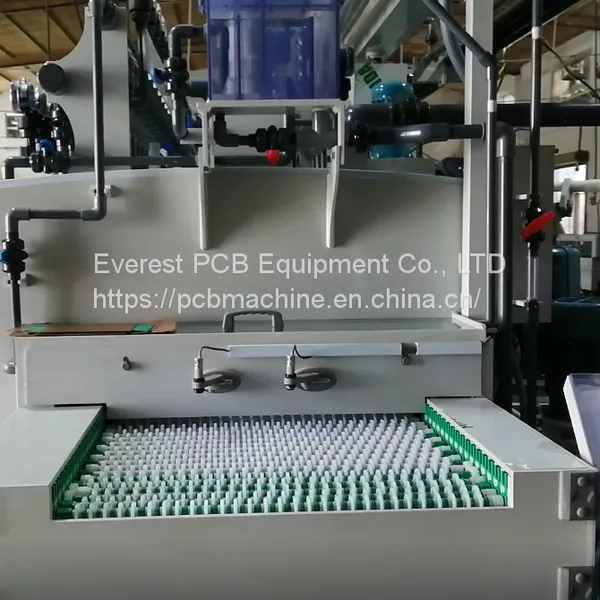

4.The spray is more uniform and the pressure is stronger
5.The machine has the advantage of automatically transmittal fast speed, and high productivity.
6.Materials can be stainless steel, copper and so on
7.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
8.It is designed for 4*8’stainless steel sheet etching process, Regular sizes are 8 * 4', 10 * 4', 3.6 * 1.8m; Thickness is 0.15-8mm thickness
9.Non-standard sizes can be customized according to different business requirements
Package:
Wooden case with waterproofing felt in side for ocean transportation,If you have special requirements ,pleased inform us in advance.
Applications:
This series chemical etching process equipmnts specious for large-size stainless steel, and widely used in stainless steel decorative panels, stainless steel template, and so on.
After-sales Services:
Three years warranty for product quality.
Timely service,life-long maintenance.
Free training for installation and operation of products.
Provide main component for replacement when you send back the problematical ones.
