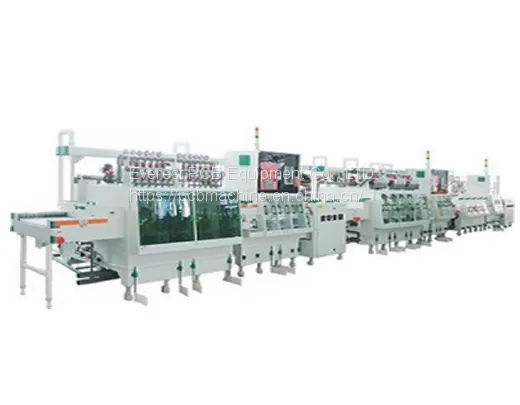

Efficient and Fast OSP Organic Solderability Preservatives Pcb Making Machines
US$ 19000 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Everest
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCB Production Printed Circuit Board Chemical Etching MachineUS$ 13000 - 16000MOQ: 1 Set -
Big Stainless Steel Elevator Pattern Plate Etching MachineUS$ 5000 - 6000MOQ: 1 Set
-
PCB Dry Film Stripping MachineUS$ 25000 - 28000MOQ: 1 Set
-
PCB HASL Pre Treatment of Hot Air Solder LevelingUS$ 27000 - 35000MOQ: 1 Set
-
Modular Type Automatic PCB Film Stripping MachineUS$ 25000 - 28000MOQ: 1 Set
Brand Name
Everest
Place of Origin
China
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Details Images
Main parameters:
1. Process flow
feeding→degreasing→pump rinsing→tap water rinsing→micro-etching→pump rinsing→tap water rinsing→pickling→pump rinsing→tap water
rinsing→blot up→wind shear→OSP→pump rinsing→pump rinsing→tap water rinsing→blot up→cool air bolt→hot air drying→discharge
feeding→degreasing→pump rinsing→tap water rinsing→micro-etching→pump rinsing→tap water rinsing→pickling→pump rinsing→tap water
rinsing→blot up→wind shear→OSP→pump rinsing→pump rinsing→tap water rinsing→blot up→cool air bolt→hot air drying→discharge
2. Specification
3.Comprehensive Explanations
1)Spraying system
(1) Degrease , micro-etching, pickling using quick release ,convenient maintenance and cleaning
(2) Rinsing part using PVC small nozzle
2) The filtration system
Using multiple filtration system to protect the pump and spraying nozzle. Especially maintenance, our use can be used repeatedly.
3) Transmission system
(1) Adopts frequency conversion motor, imported PVDF pin gear, to ensure strength, wear resistance, corrosion resistance and transmission uniformity.
(2) With hard wheel structure, smooth surface to ensure smooth delivery, will not scratch.
(3) Wheel base is 40mm.
(4) Main transmission is used the inner and outer structure of a structure. And in the choice of
materials is very unique: imported PVDF material inner sleeve, outer with UPVC material, thus ensuring a more wear-resistant and durable.
(5) The braking system: the general button control, the highly humanized operation, and ensure the high quality and long life.
(6) The tanks are made of tilting Bottom, can drain the tank residue for easy cleaning.
(7) Wire on the top of the machine, safe and beautiful.
(8) Tap water rinsing with solenoid valve and a separate manual switch, and with a flow meter, automatic control spray, and can adjust the amount of water.
(9) The exhaust pipe on the top, make the each part independently and adjustable.
(10) This line is equipped with head and tail are emergency stop switch, so in an emergency, the full range of rapid braking.
1)Spraying system
(1) Degrease , micro-etching, pickling using quick release ,convenient maintenance and cleaning
(2) Rinsing part using PVC small nozzle
2) The filtration system
Using multiple filtration system to protect the pump and spraying nozzle. Especially maintenance, our use can be used repeatedly.
3) Transmission system
(1) Adopts frequency conversion motor, imported PVDF pin gear, to ensure strength, wear resistance, corrosion resistance and transmission uniformity.
(2) With hard wheel structure, smooth surface to ensure smooth delivery, will not scratch.
(3) Wheel base is 40mm.
(4) Main transmission is used the inner and outer structure of a structure. And in the choice of
materials is very unique: imported PVDF material inner sleeve, outer with UPVC material, thus ensuring a more wear-resistant and durable.
(5) The braking system: the general button control, the highly humanized operation, and ensure the high quality and long life.
(6) The tanks are made of tilting Bottom, can drain the tank residue for easy cleaning.
(7) Wire on the top of the machine, safe and beautiful.
(8) Tap water rinsing with solenoid valve and a separate manual switch, and with a flow meter, automatic control spray, and can adjust the amount of water.
(9) The exhaust pipe on the top, make the each part independently and adjustable.
(10) This line is equipped with head and tail are emergency stop switch, so in an emergency, the full range of rapid braking.
