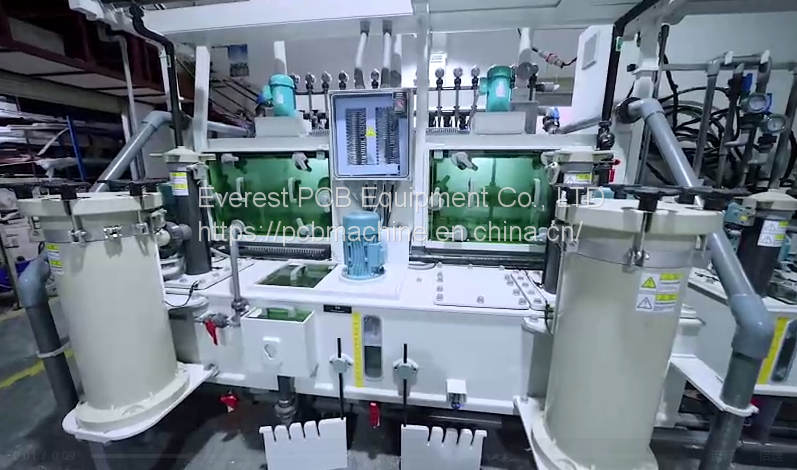

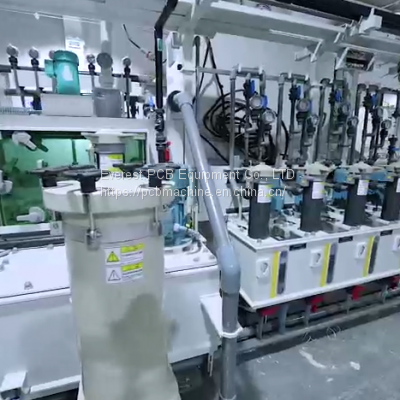

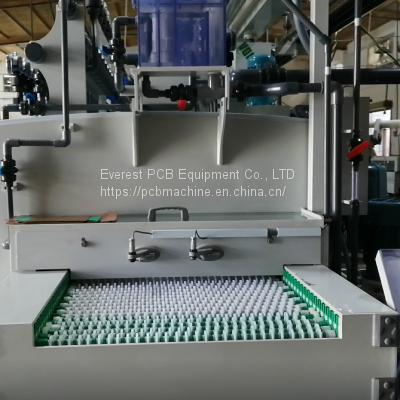

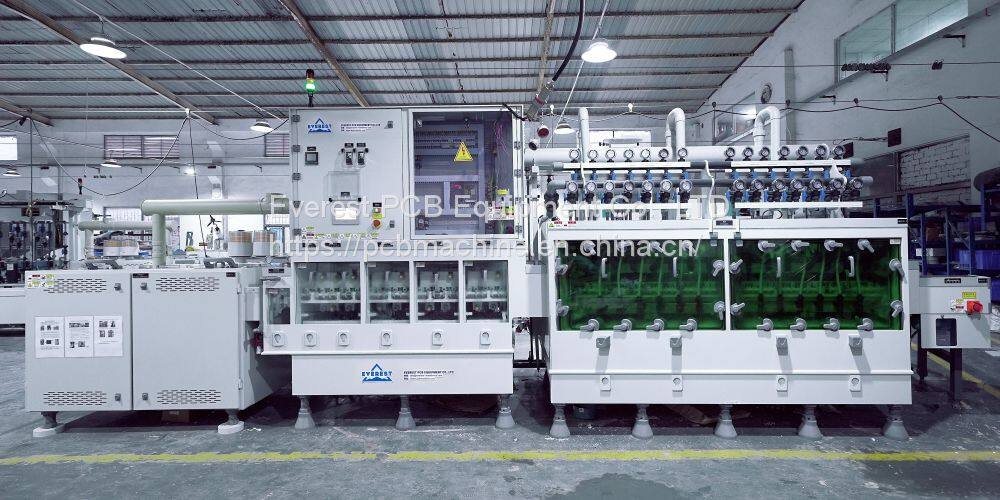

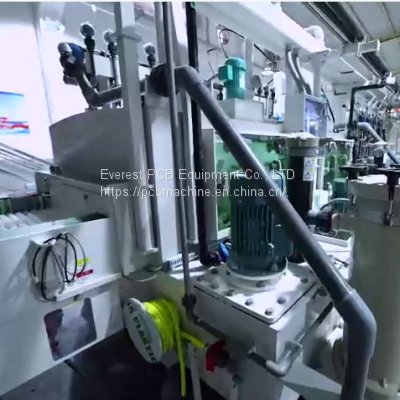

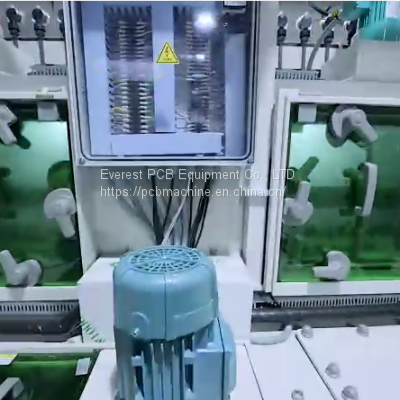

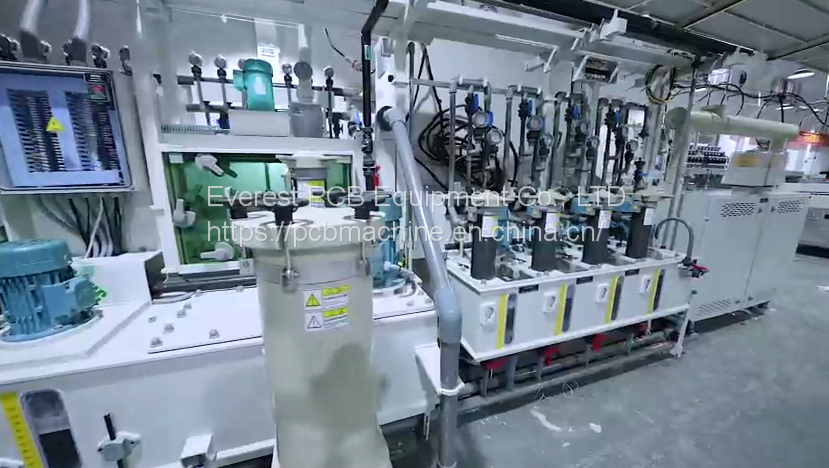

Everest PCB Vacuum Acid Etching Machine

Name: Everest PCB Vacuum Acid Etching Machine
Brand: Everest
Price: USD $25000 - 28000 / Set

FOB Price

USD $25000 - $28000 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Tianjin
Payment Terms:T/T L/C
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Everest	Place of Origin:	China	After-sales Service Provided:	Engineers available to service machinery overseas
Condition:	New

Product Description

Details Images

Products Description

Dimension:	7820mm×2300mm×2000mm
Working height:	900mm±25mm
Working width:	650mm
Wheel base:	28mm 35mm 48mm 70mm
Working speed:	2m/mm(preset working speed)
Supply voltage:	Three phase four wire,380V/50Hz
Total power:	41KW
Max work piece:	610mm×460mm
Min work piece:	150mm×150mm
Working thickness:	0.1-3.2mm
Water consumption:	8~12 L/min
Working temperature	0 - 55°C
Highest Temperature	70°C

Automatic Control System:

Speed adjust system
Pressure Adjust System
Temperature control system
Net Filter System

Features:

High transparency toughened glass design, it's convenient to observe internal spraying and transmission.
Uses PCB technology with double oscillatory frame to get higher precision
The body is made of PP or PVC,which is heat-resistant, corrosion-resistant and strain-resistant.
Adopted high pressure system,so the praying is more uniform
The speed can be adjusted for your different requirements.
Built in thermostat and can work for a long time.
Heating tube and cooling tube used titanium materials with good corrosion resistance.
and the best temperature could be ensure by automatic heating and cooling device.
Simple operation, it's very suitable for mass production.
Non-standard sizes can be customized according to different business requirement

Applications:

It’s mainly used to etch through the metal decoration plates, nameplates ,signs, tags,stencils,gobos,metal crafts and so on

Package:

Wooden case with waterproofing felt in side for ocean transportation,If you have special requirements ,pleased inform us in advance.

After-sales Services:

Three years warranty for product quality.
Timely service,life-long maintenance.
Free training for installation and operation of products.
Provide main component for replacement when you send back the problematical ones.
